molex 757145002 compatible link-pp lp22bc01203 sfp+ 2x2 cage&connector with emi spring finger inner light pipe press-fit

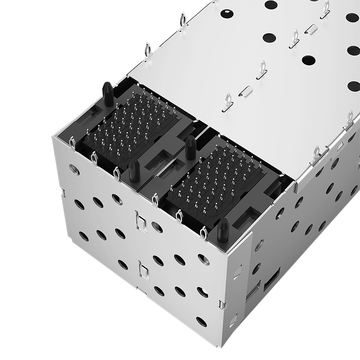

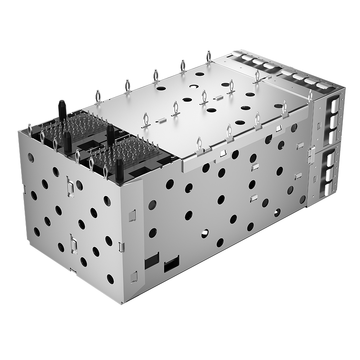

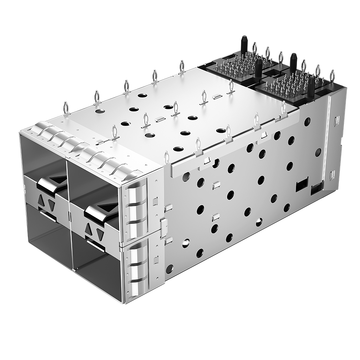

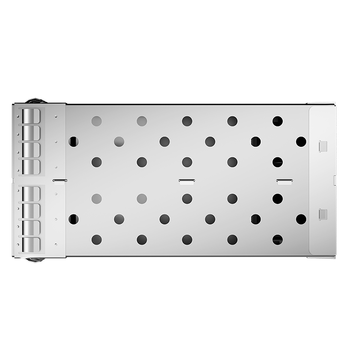

Molex 757145002 เข้ากันได้ LINK-PP LP22BC01203 SFP+ 2x2 Cage&Connector พร้อมสปริงกัน EMI และท่อส่งแสงภายในแบบกดพอดี

สรุปสินค้า

สินค้า
Molex 757145002 เข้ากันได้ LINK-PP LP22BC01203 SFP+ 2x2 Cage&Connector พร้อมสปริงกัน EMI และท่อส่งแสงภายในแบบกดพอดี
SKU
203392
P / N
LP22BC01203
ราคา
THB 365
หุ้น
500 ในสต็อก
ขาย
9.5K
URL ผลิตภัณฑ์
https://www.l-p.com/products/492858.htm
ราคาต่อหน่วย THB 365
ผู้ใช้ใหม่: THB 335 คูปองส่วนลดสำหรับการสั่งซื้อครั้งแรกของคุณ
รหัส linkpp2610
สำหรับการสั่งซื้อเกิน THB 33,530 เข้ามา THB 503 Off
รหัส Linkpp15
สำหรับการสั่งซื้อเกิน THB 100,590 เข้ามา THB 1,677 Off
รหัส Linkpp50
สำหรับการสั่งซื้อเกิน THB 167,650 เข้ามา THB 3,353 Off
รหัส Linkpp100
P / N: LP22BC01203SKU: 203392

ใช้ได้กับ Molex 757145002แผ่นข้อมูล3D รุ่นรายงานผลการทดสอบดาวน์โหลดทั้งหมด

ร่วมกันได้:
LINK-PP
Molex
P/N ที่เข้ากันได้:
757145002
760455002
760915002
การกำหนดราคาตามปริมาณ ระดับการสั่งซื้อออนไลน์ · สั่งซื้อจำนวนมากหรือขอราคาพิเศษได้ตามต้องการ
THB 365
1–9 ชิ้น
THB 347
10–99 ชิ้น
THB 329
100–999 ชิ้น
THB 311
1,000–2,499 ชิ้น
THB 292
≥2,500 ชิ้น

หากต้องการปริมาณมากกว่านี้ หรือต้องการต่อรองราคา โปรดติดต่อเรา

สต็อก:
500 ในสต็อก
การส่งสินค้า:
THB 575
ไปยัง ประเทศไทย ผ่านทาง เฟดเอ็กซ์ ไอพี
เวลาจัดส่งโดยประมาณ : 3 - 6 วัน
5- รับประกันปี 15-Day Returns การแลกเปลี่ยนภายใน 15 วัน
การประกัน
  • รับประกันสินค้า 5 ปี ซึ่งถือเป็นระยะเวลารับประกันที่ยาวนานที่สุดในอุตสาหกรรม
  • อ่านตารางสำหรับ รายละเอียด ของการรับประกันสินค้าทั้งหมด
การคืนสินค้าและการแลกเปลี่ยน
  • จะได้รับเงินคืนประมาณ 5 วันทำการหลังจากได้รับสินค้าที่ส่งคืนแล้ว
  • สินค้าที่มีอยู่ในสต็อกสำหรับเปลี่ยนทดแทน สามารถจัดส่งได้ภายใน 1 วันทำการ
  • โปรดอ่านนโยบายการคืนสินค้าฉบับเต็ม รายละเอียด.
จัดส่งฟรีเมื่อซื้อครบ THB 3,319.
หรือเลือกใช้บริการจัดส่งผ่านบัญชี UPS / FedEx / DHL ของคุณเองในขั้นตอนการชำระเงิน (THB 0 การส่งสินค้า).
ปริมาณ:
ราคารวม:
THB 365

Molex 757145002 เข้ากันได้ LINK-PP LP22BC01203 คอนเนคเตอร์ SFP+ 2x2 แบบกรง พร้อมสปริงป้องกัน EMI และท่อส่งแสงภายใน

LINK-PP ส่วนจำนวน LP22BC01203 โมเล็กซ์ ส่วนจำนวน 757145002
สไตล์ตัวเชื่อมต่อ กรง ประเภทการเชื่อมต่อ SFP +
คุณสมบัติ ป้องกัน EMI ประเภทการติดตั้ง ทะลุผ่านรูมุมขวา
การกำหนดค่าพอร์ตเมทริกซ์ พอร์ต 2x2 จำนวนพอร์ต 4
ช่วงอุณหภูมิ -40 - 85 °ซ รูปแบบการติดตั้ง PCB รูทะลุ - อัดเข้า
รวมหลอดไฟ พร้อม LightPipe ด้านใน ความสูง (นิ้ว/มม.) 1.005/25.53
ความยาว (นิ้ว/มม.) 2.490/63.25 ความกว้าง (นิ้ว/มม.)
1.142/29.00

ตารางเปรียบเทียบรุ่น

LINK-PP

จับคู่ผลิตภัณฑ์

ภาพ ID # รายละเอียด ราคา หุ้น เพิ่มไปที่รถเข็น

ดาวน์โหลด

การเขียนแบบผลิตภัณฑ์ LP22BC01203.pdf

คำถามและคำตอบ

ยังไม่มีคำถามใดๆ

เป็นคนแรกที่สอบถามเกี่ยวกับข้อมูลจำเพาะ ความเข้ากันได้ หรือระยะเวลาในการจัดส่ง

ส่งคำถาม
  • A:
    The connector is rated for 500 mate cycles minimum. Retention force starts around 12N and drops maybe 15 percent after 200 cycles, which is still well above what a module needs to stay seated. In practice the module latch, not the cage, is the wear item. For a port that gets re patched daily, plan on replacing the module before the cage. by LINK-PP Technical Support
  • A:
    Press-fit works well on 1.6mm FR4 with 4 layers as long as the finished hole is 0.6mm plus or minus 0.05mm and the pad annulus is at least 0.25mm. The advantage is no thermal cycle on the connector and no flux in the optical opening. For a 4 layer board with thin copper, keep the press force under 1.3kN and support the board underneath. If your board is 0.8mm or thinner, use the solder version instead. by LINK-PP Technical Support
  • A:
    Yes, the guide is moulded in a polycarbonate blend rated to -40℃ and the cage is rated -40 to 85℃. The failure mode at low temperature is brittleness, so avoid any design where the guide is under bending load from the panel. Keep a 0.2mm clearance between guide tip and panel, and do not use cyanoacrylate to bond anything near it, that is what cracks polycarbonate in cold rooms. by LINK-PP Technical Support
  • A:
    Plan for plus or minus 0.3mm on the panel opening relative to the cage datum. The guide has about 0.5mm of float built into the moulding, so 0.3mm misalignment still shows a clean light. Beyond 0.4mm you get a dim or offset spot. Give us the panel drawing and we will confirm the guide position against your datum before you cut the die. by LINK-PP Technical Support
  • A:
    This part has an inner guide only, so it carries one indication per port, normally link. If you need link plus activity you want the inner and outer version of the same 2x2 family. You can also drive both LEDs into the single guide with two colours, but then you lose the ability to tell link from activity at a glance. Most industrial designs use link only and put activity on a separate front panel LED. by LINK-PP Technical Support

ความคิดเห็นของลูกค้า

  • 5

    13 รีวิว

  • 5 ดาว
    100%
    4 ดาว
    0%
    3 ดาว
    0%
    2 ดาว
    0%
    1 ดาว
    0%
  • รีวิวทั้งหมด (13)
ไม่มีข้อมูล
R *** เสื้อ
ประเทศสหรัฐอเมริกา
ตรวจสอบการสั่งซื้อ
5.0
2025-11-14
We had to modify our panel opening by 0.3mm because the light pipe sits slightly lower than the drawing suggested, but that is a one time change. Product quality is fine.
เขา
อินเดีย
ตรวจสอบการสั่งซื้อ
5.0
2025-08-28
The shell is a single stamped piece with the connector, so there is no gap between cage and connector for EMI to leak. That was the failure mode on our previous two piece design, a 4dB bump around 800MHz that we could never fully fix. With this part the bump is gone, and the only change on the board was the cage.
L *** อี
ออสเตรเลีย
ตรวจสอบการสั่งซื้อ
5.0
2025-07-31
Ran a 96 hour burn in with all four ports at 10G LR, 45℃ ambient. No CRC errors, no link drops, DDM temps all under 62℃. We also did 20 power cycles during the run to simulate a site reset, and every port came back up within 3 seconds. Shipping this design, no changes needed to the cage or the panel.
K *** k
ประเทศไทย
ตรวจสอบการสั่งซื้อ
5.0
2025-07-20
We compared this against a two piece cage plus separate connector. The integrated connector saved us 4mm of board space and one assembly step, which paid for the price difference in one production run.
ใน
อาร์เจนตินา
ตรวจสอบการสั่งซื้อ
5.0
2025-06-15
Pressed 120 of these over two weeks. Force was consistent at 1.0 to 1.2kN, no cracked housings, no bent tails. Our rework rate on this step went to zero.
