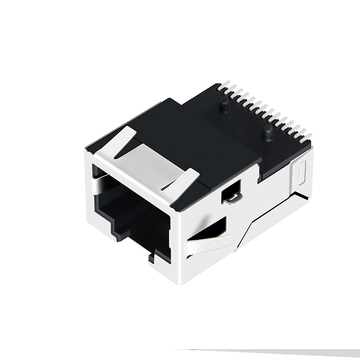

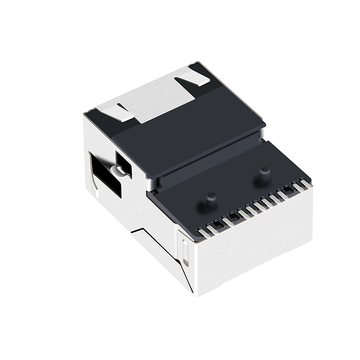

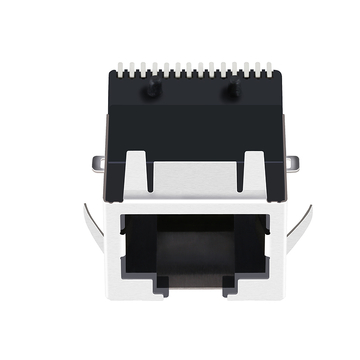

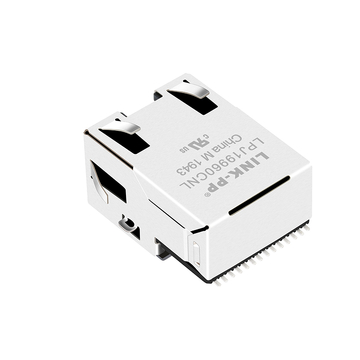

Amphenol RJPS-001TC1 Compatible LPJ19960CNL 10/100Mbps POE Low Profile RJ45 SMT Jack Tab Up Without Led
Click to open expanded view

Amphenol RJPS-001TC1 Compatible LPJ19960CNL 10/100Mbps POE Low Profile RJ45 SMT Jack Tab Up Without Led

# 178579

Product summary

Product
Amphenol RJPS-001TC1 Compatible LPJ19960CNL 10/100Mbps POE Low Profile RJ45 SMT Jack Tab Up Without Led
SKU
178579
P/N
LPJ19960CNL
Price
$ 3.704
Stock
1599 in Stock
Sold
27.6K
Product URL
https://www.l-p.com/products/474243.htm
For Order Over $1000 Get $15.00 Off , Code: Linkpp15
For Order Over $3000 Get $50.00 Off , Code: Linkpp50
For Order Over $5000 Get $100.00 Off , Code: Linkpp100
New Users: $10 Coupon for Orders , Code: linkpp2610
16 Reviews
0 Questions
Request Stock
27.6K Sold
$ 3.704 ( 0% OFF )
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 3.704
100
$ 3.038
600
$ 2.667
1200
$ 2.038
6000
$ 1.741
Manufacture: LINK-PP
P/N: LPJ19960CNL
Compatible:
LINK-PP
Amphenol
Compatible P/N:
RJPS-001TC1
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
To Be Negotiated
Free Shipping
Can't deliver
to United States via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details
5-Year Warranty 30-Day Returns 30-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Stock:
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
undeliverable
Total Price:
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.total }}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Packaging Details:
0.009kg
Tray
110pcs
550pcs
34.5*34.5*27cm
5.2kg
Add to wish

Amphenol RJPS-001TC1 Compatible LINK-PP LPJ19960CNL 10/100 Base-T Ethernet Low-Profile RJ45 SMT Jack for Digital Camera and Surgical Equipment (1x1 Port,Tab Up, POE,Without Led)


The LPJ19960CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Entrance Guard System and Server.


LINK-PP Part Number
 LPJ19960CNL Amphenol Part Number
 RJPS-001TC1
Part Status
 Active Mounting Type
 Surface Mount
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
Right Angle PCB Mount Angle

90°

Shield EMI Tabs
WithLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.457/11.60Package Length (Inches/mm)

0.846/21.60

Package Width (Inches/mm)
0.614/15.60
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

Videos

LINK-PP

  1. Low-Profile RJ45 Jack
