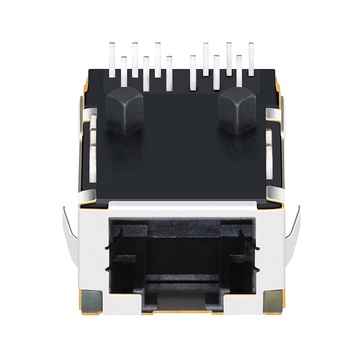

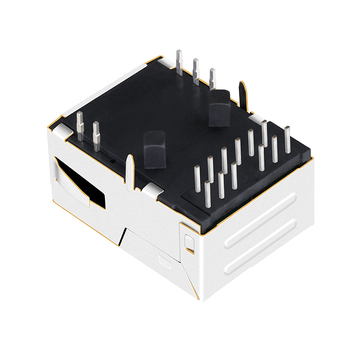

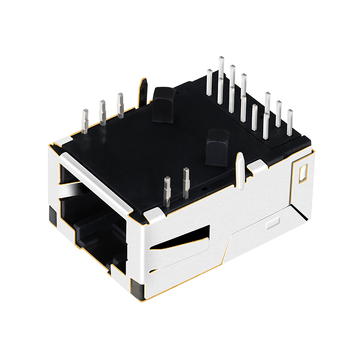

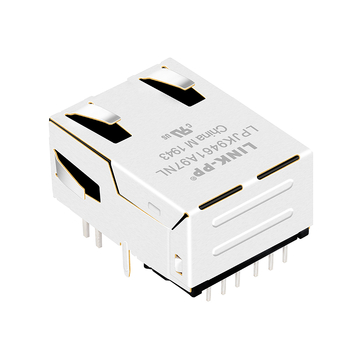

LPJK9461A97NL 10G Base-T Single Port Low Porfile Magnetics RJ45 Connector Tab UP Yellow&Green/Green Led

Name: LPJK9461A97NL 10G Base-T Single Port Low Porfile Magnetics RJ45 Connector Tab UP Yellow&Green/Green Led
Brand: LINK-PP
SKU: 161590
Price: 3.316 USD
Availability: InStock
Rating: 4.9 (75 reviews)

# 161590

Product: LPJK9461A97NL 10G Base-T Single Port Low Porfile Magnetics RJ45 Connector Tab UP Yellow&Green/Green Led
SKU: 161590
P/N: LPJK9461A97NL
Price: $ 7.055
Stock: 1200 in Stock
Sold: 16.8K
Product URL: https://www.l-p.com/products/466211.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

: LPJK9461A97NL 10G Base-T Single Port Low Porfile Magnetics RJ45 Connector Tab UP Yellow&Green/Green Led

75 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

75 Reviews

4 Questions

Request Stock

16.8K Sold

$ 7.055

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 7.055

100

$ 5.786

600

$ 5.08

1200

$ 3.881

6000

$ 3.316

P/N: LPJK9461A97NL

Compatible:: LINK-PP

Compatible P/N:: LPJK9461A97NL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.01kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 40*32*33cm
G.W./carton: 12kg

Add to wish

Description

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJK9461A97NL 10G Base-T Low Profile Magnetics RJ45 Connector For Fieldbus System ( Single Port, Yellow&Green/Green Led,Tab Up)

The LPJK9461A97NL supports speed 10G Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Set-top Box, Fieldbus System .

LINK-PP Part Number:	LPJK9461A97NL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10G Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Yellow&Green/Green
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.445/11.30	Package Length (Inches/mm)	0.946/24.04
Package Width (Inches/mm)	0.663/16.85	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LPJK9461A97NL-10G low profile-Drawing.pdf

3D Model

ZIP
LPJK9461A97NL.zip

Questions & Answers
Ask a Question

No data

Q: We’re upgrading our fieldbus hardware from gigabit to 10G speed and currently use standard LINK-PP RJ45 jacks. Can LPJK9461A97NL replace our existing connectors without redesigning the whole PCB? By A***n on 2026-04-21

A: This model is fully compatible with LINK-PP’s regular RJ45 magnetic jack series. It retains the same 90° side entry through-hole PCB footprint and tab-up latch structure. The only difference is its ultra-low 11.30mm low-profile body, so you only need to adjust equipment shell height instead of full PCB modification for 10G upgrade. By admin on 2026-04-22
Q: Our outdoor new energy power units face extreme freezing and hot weather all year round. This jack lists two temperature specs: 0~70℃ and -40~85℃. Which rating applies to harsh outdoor industrial environments? By B***g on 2026-03-23

A: 0℃ to 70℃ refers to the standard indoor operating temperature for regular indoor set-top boxes and lab fieldbus devices. The official full industrial wide-temperature certification is -40℃ to +85℃, which is fully validated for year-round outdoor new energy stations and fieldbus control systems with drastic ambient temperature swings. By admin on 2026-03-24
Q: I saw Fedex IP shipping to US costs $29.47 per shipment. Is there a minimum order value to qualify for free shipping? I want to combine multiple connector models to hit the threshold. By J***l on 2026-01-18

A: We offer free Fedex IP shipping to the US for all orders with total merchandise value over $600. If your combined cart value is below $600, the flat $29.47 shipping fee will be charged regardless of order quantity. Consolidating multiple part numbers in one order counts toward the $600 free shipping threshold. By admin on 2026-01-19
Q: Our new energy product line will place repeated 6,000-piece orders every quarter. Could you share all tiered unit prices, and do we get extra long-term contract discounts besides the listed bulk rates? By S***r on 2024-03-15

A: Standard tiered unit prices are as follows: $7.055 for 1pc sample, $5.786 for 100pcs, $5.08 for 600pcs, $3.881 for 1200pcs, and $3.316 per unit for 6000pcs. For recurring quarterly bulk orders over 6000pcs, we can offer an additional 3% contract discount on top of the published volume pricing to lower your long-term BOM cost. By admin on 2024-03-16
