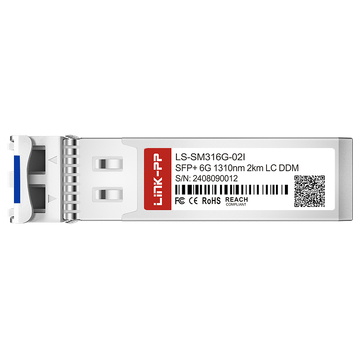

The LINK-PP LS-SM316G-02I is a high-performance 6G SFP+ industrial transceiver designed for demanding telecom environments. Operating Max 6.25Gbps, this single-mode module features a 1310nm FP laser, a PIN photodiode, and a duplex LC interface. It guarantees stable 2km transmission across extreme temperatures from -40°C to +85°C, making it ideal for CPRI Option 6 and LTE system connectivity.

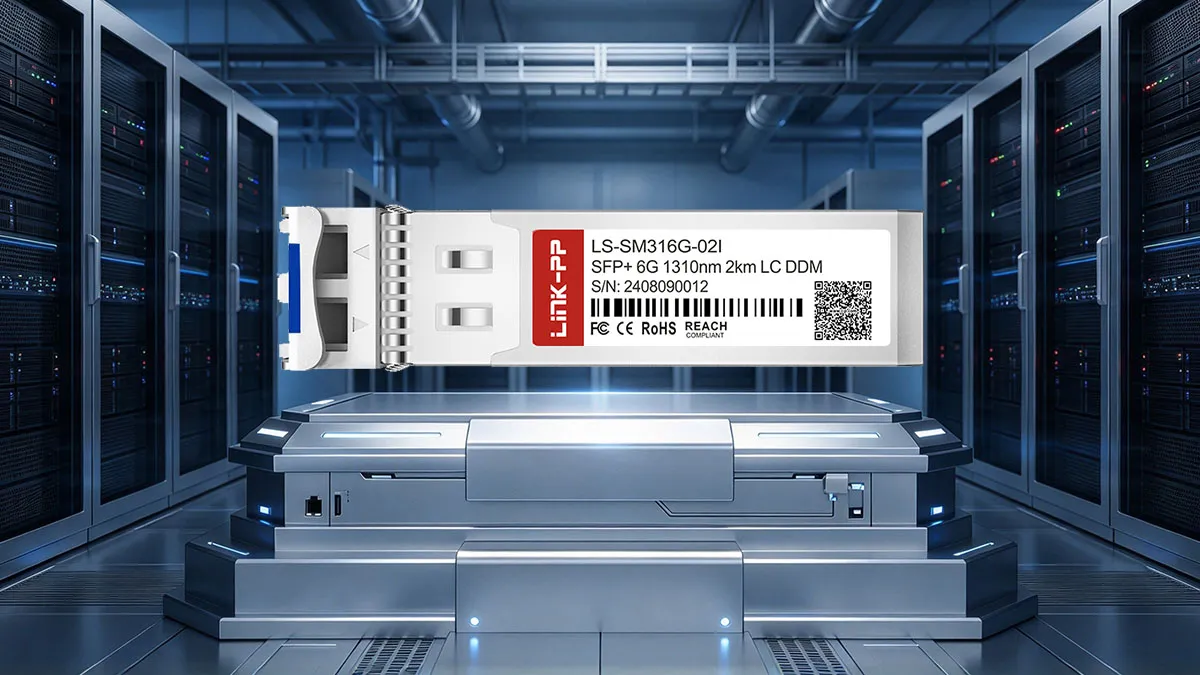

LINK-PP Part Number
LS-SM316G-02I
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
6.25Gbps
Wavelength
1310nm
Max Cable Distance
2km
Connector
Duplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
-6.5 to -0.5dBm
RX Power
-20 to -1dBm
Receiver Sensitivity
-15dBm
DDM/DOM
Supported
Operating Temperature Range
-40 to 85°C
Protocols
SFP+ MSA Compliant
Key Features of LINK-PP LS-SM316G-02I 6G SFP+
The LINK-PP LS-SM316G-02I delivers robust 6.144Gbps data rates within a hot-pluggable SFP+ footprint. Essential features include low power consumption under 320mA, single 3.3V power supply, and SFF-8472 compliant Digital Diagnostic Monitoring. This industrial-grade transceiver ensures seamless integration for advanced optical networks.

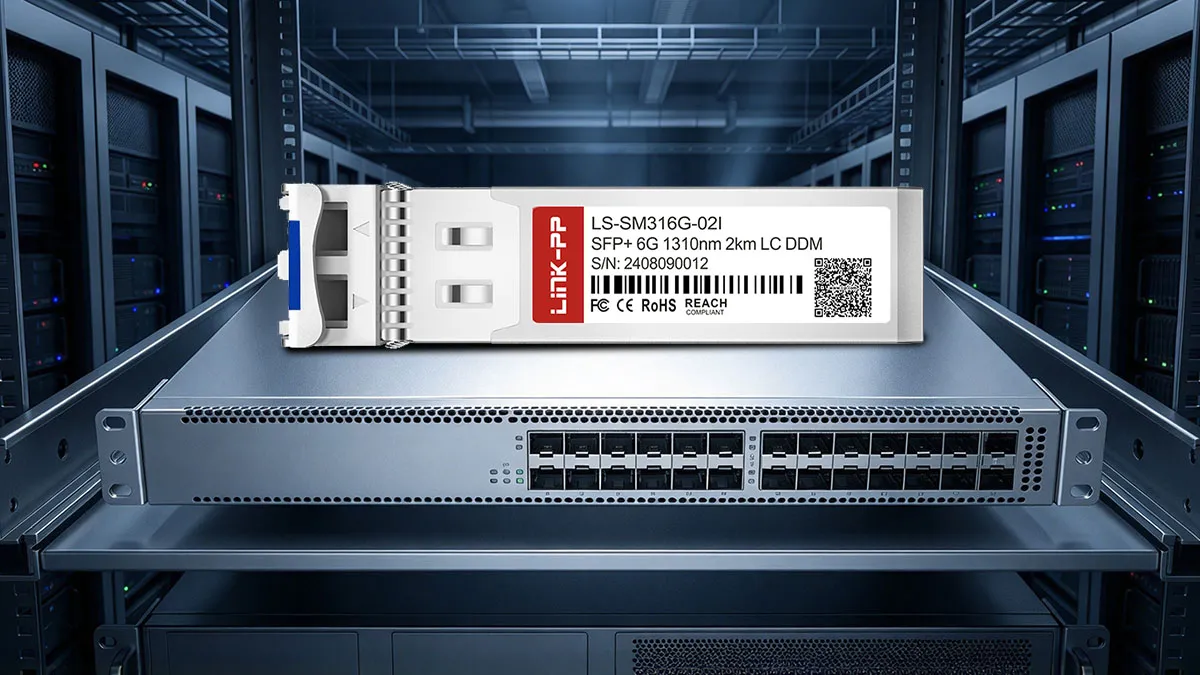

LINK-PP LS-SM316G-02I 6G SFP+ Optical Module
Engineered for superior network reliability, the LINK-PP LS-SM316G-02I 6G SFP+ optical module offers an exceptionally cost-effective solution for high-speed data transmission. Its robust industrial design perfectly supports modern telecommunication infrastructure requiring strict Class I laser safety compliance.
LS-SM316G-02I: 6G Connectivity for LTE System
As a critical component for cellular networks, the LS-SM316G-02I provides flawless 6.144Gbps connectivity for LTE systems. It facilitates efficient base station connections, ensuring uninterrupted CPRI Option 6 data flow between BBU and RRU in extreme outdoor environments.
LS-SM316G-02I Module with 1310nm Wavelength
Utilizing an advanced 1310nm FP laser transmitter, the LS-SM316G-02I module minimizes signal dispersion over single-mode fiber. This precise 1310nm wavelength optimization guarantees high signal integrity and low latency for demanding 6.144Gbps industrial optical link applications.
LS-SM316G-02I Module Supporting 2km Transmission
Designed for short to medium-haul connections, the LS-SM316G-02I module supports up to 2km transmission distance over standard SMF. This 2km reach perfectly balances cost and performance, delivering reliable high-bandwidth routing for localized telecommunication distribution setups.

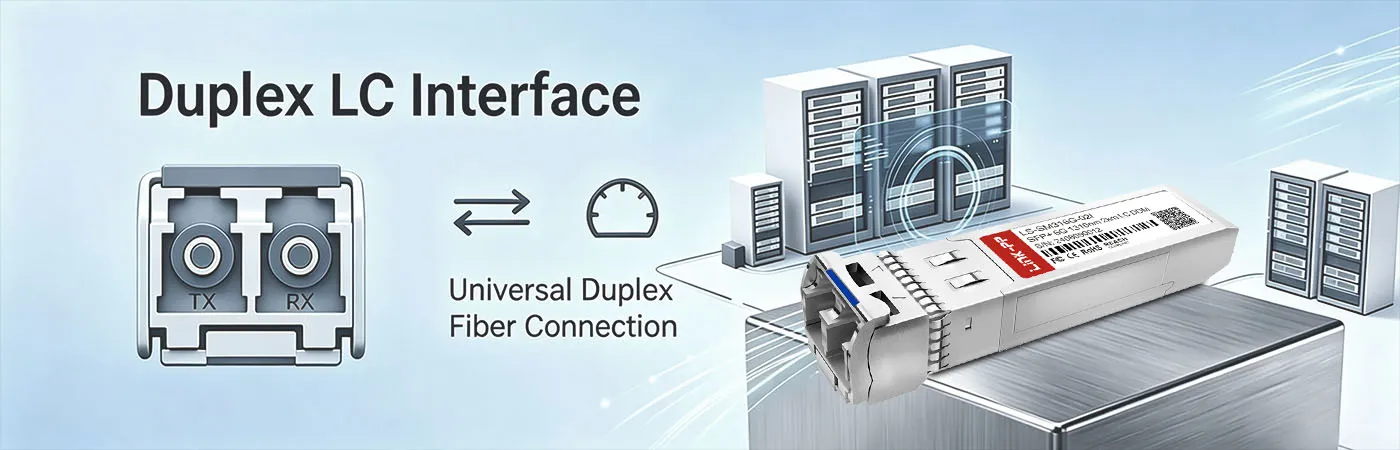

LS-SM316G-02I Module with Duplex LC Interface
Equipped with a highly standardized duplex LC interface, the LS-SM316G-02I module allows for fast, secure fiber optic connections. This LC receptacle design ensures excellent physical mating, minimizing insertion loss and maximizing overall SFP+ transceiver efficiency.

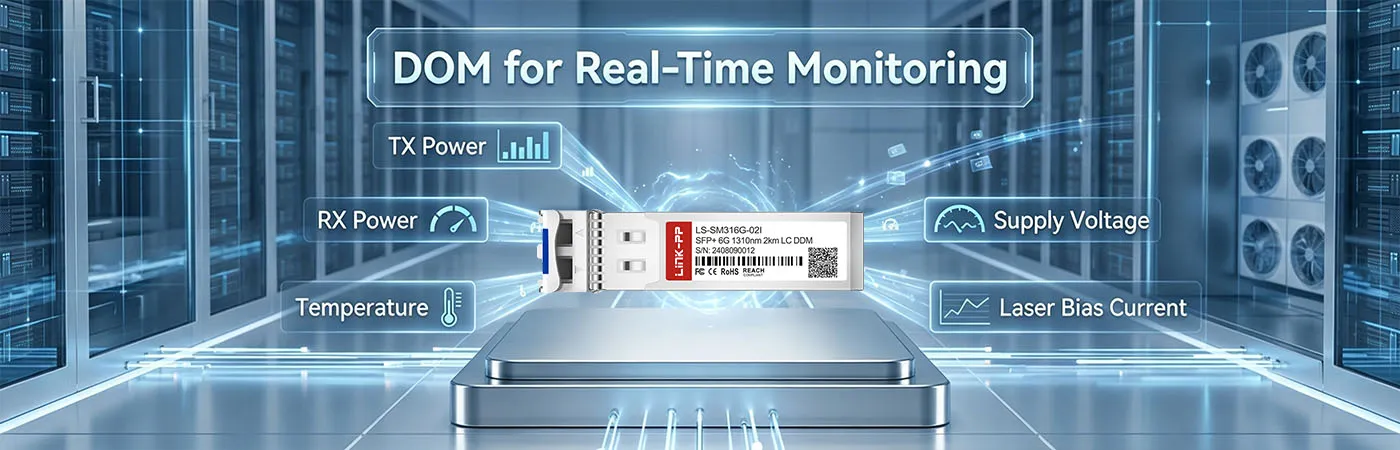

LS-SM316G-02I Module with DOM for Real-Time Monitoring
The LS-SM316G-02I module features integrated Digital Optical Monitoring (DOM) compliant with SFF-8472. This intelligent DDM functionality provides real-time monitoring of temperature, voltage, bias current, and optical power, enabling proactive network maintenance and preventing sudden link failures.
LINK-PP LS-SM316G-02I 6G SFP+ Certification
The LINK-PP LS-SM316G-02I 6G SFP+ maintains strict industry compliance. Every industrial transceiver is thoroughly certified to meet global telecommunication safety, environmental, and electro-magnetic compatibility standards.
Our comprehensive quality testing program ensures every LS-SM316G-02I unit delivers uncompromised reliability. Each industrial optical module undergoes exhaustive factory evaluations before reaching your networking equipment.
LS-SM316G-02I Quality Certifications
The LS-SM316G-02I boasts comprehensive quality certifications, fully complying with CE, FCC, UKCA, UL, REACH, and RoHS directives, guaranteeing safe deployment in diverse international enterprise networks.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-SM316G-02I Certified for Reliable Host-Device Compatibility
Precisely engineered for universal networking environments, the LS-SM316G-02I is certified for reliable host-device compatibility, seamlessly operating with major switch and router brands via SFP MSA standards.
To guarantee exceptional industrial stability, the LS-SM316G-02I undergoes multiple stringent evaluation phases. Rigorous testing ensures reliable SFP+ performance under the harshest networking conditions.
Optical Spectrum Test
We verify the 1310nm wavelength accuracy to ensure optimal laser transmission quality and stability.
Eye Pattern Test
Extensive eye pattern testing guarantees signal integrity and minimizes jitter for 6.144Gbps data streams.
Bit Error Rate Test
Extended PRBS evaluations confirm a flawless bit error rate for reliable long-term network operations.
Temperature Test
Extreme thermal cycling verifies continuous module functionality throughout the industrial -40°C to +85°C range.
Product Shipping for LINK-PP LS-SM316G-02I 6G SFP+
We provide secure and efficient logistics solutions for your orders. Product shipping for LINK-PP LS-SM316G-02I 6G SFP+ prioritizes component safety and rapid worldwide delivery.
Anti-Static Protective Packaging
Each industrial transceiver is sealed in premium electrostatic discharge protective bags.
Shock-Resistant Transport Protection
Custom-fitted shockproof trays prevent physical damage during complex transit operations.
Fast Order Processing and Dispatch
We ensure streamlined warehouse processing for immediate global dispatch schedules.
Global Logistics and International Delivery
Partnered with top couriers for reliable and traceable international delivery services.

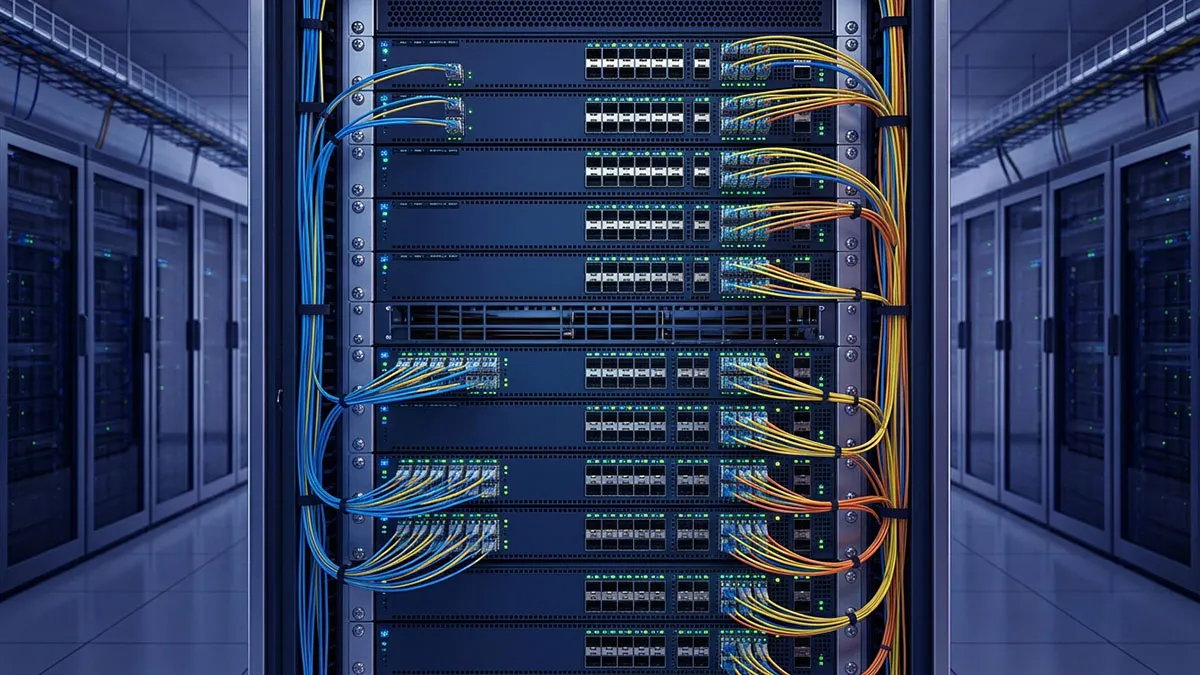

LINK-PP LS-SM316G-02I 6G SFP+ Usage Demonstration
Deploying this 6G SFP+ optical module in harsh telecom or industrial environments is remarkably simple. Just plug the hot-swappable transceiver into a compatible SFP+ port, attach your duplex single-mode LC fiber cable, and immediately unlock seamless 6Gbps connectivity engineered for extreme temperatures and 2km transmission.
LS-SM316G-02I Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-SM316G-02I modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes, absolutely. These transceivers are fully MSA compliant and individually programmed to ensure 100% plug-and-play compatibility with major brands like Cisco, Arista, Juniper, and more. You won't get any "unsupported transceiver" warnings. By
admin
A:
We sure do! For large batch deployments, we provide tiered wholesale pricing. Just reach out to our sales team via email or live chat with your quantity, and we'll shoot over a competitive custom quote. By
admin
A:
Yes, standard OS2 Single-Mode Fiber (SMF) is perfect. The module uses a standard Duplex LC connector interface and transmits at a 1310nm wavelength, pushing a clean optical signal up to 2km on standard single-mode cables. By
admin
A:
Definitely. This module strictly complies with the SFP+ Multi-Source Agreement (MSA), IEEE 802.3 standards, and specific CPRI/OBSAI protocols required for 6G transmission rates. It's fully certified for enterprise and telecom environments. By
admin
