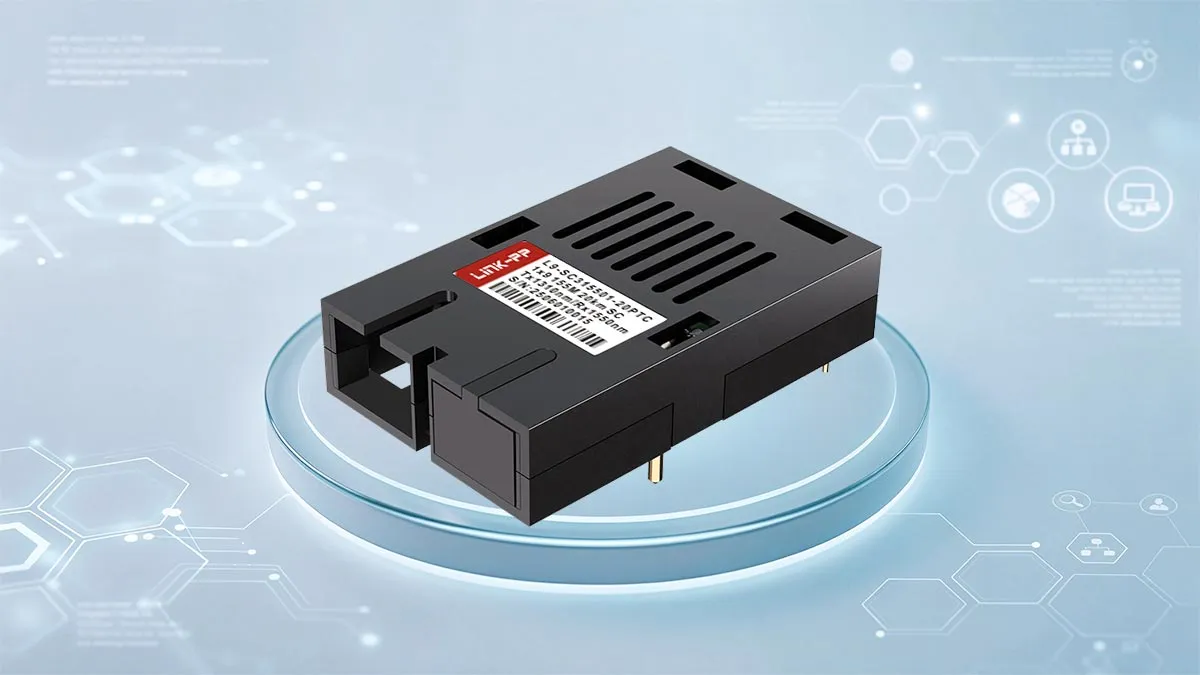

L9-SC315501-20PTC is a 155M STM-1 OC-3 1×9 BiDi optical transceiver engineered for single-fiber bidirectional links over single-mode fiber (SMF) up to 20km. Built with an integrated FP transmitter and PIN photodiode receiver, this +3.3V-powered module reliably supports an operating temperature range from -10°C to 70°C.
LINK-PP Part Number
L9-SC315501-20PTC
Vendor Name
LINK-PP
Form Factor
1x9
Max Data Rate
155Mbps
Wavelength
1310nm-TX/1550nm-RX
Max Cable Distance
20km
Connector
Simplex SC
Fiber Type
SMF
Transmitter Type
FP
Receiver Type
PIN
Receiver Sensitivity
<-32dBm
Supply Voltage
3.3V
Differential Input/ Output
(LV)PECL
Signal Detect
(LV)TTL
Operating Temperature Range
-10 to 70°C
Application
WDM Application
SDH STM-1 / SONET OC-3
Fast Ethernet
Key Features of LINK-PP L9-SC315501-20PTC 155M 1×9
LINK-PP L9-SC315501-20PTC BiDi transceiver provides 155Mbps STM-1/OC-3 connectivity across 20km using a single-mode fiber strand. It brings together standard 1×9 housing, bidirectional wavelengths, and an easy-to-use simplex SC interface.

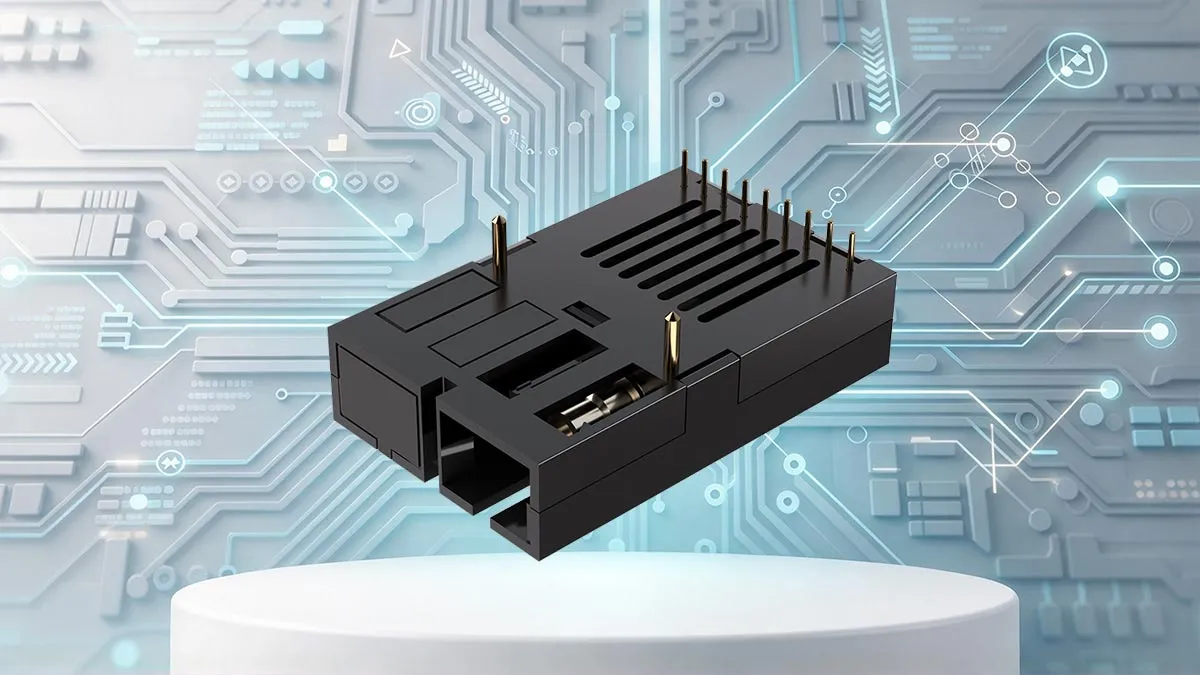

LINK-PP L9-SC315501-20PTC 155M 1×9 Optical Module
The physical package adopts an industry-standard 1×9 footprint fully compliant with the Multi-Source Agreement (MSA). It integrates (LV)PECL differential inputs/outputs and (LV)TTL signal detection while maintaining certified ESD protection and very low EMI.

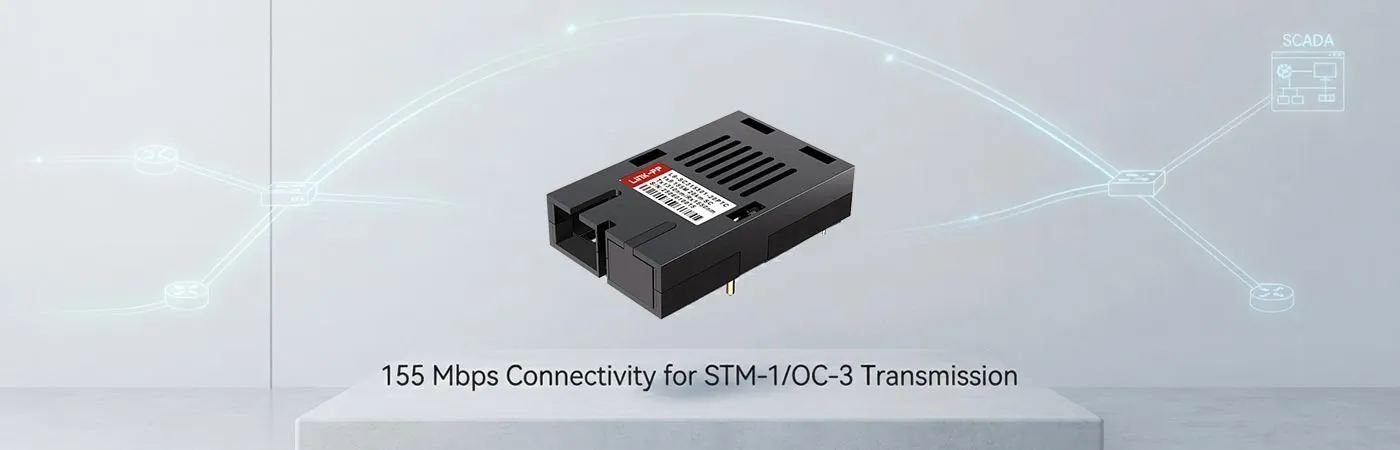

L9-SC315501-20PTC: 155 Mbps Connectivity for STM-1/OC-3 Transmission
Designed to support SDH STM-1 and SONET OC-3 protocols, this interface delivers consistent 155Mbps data transmission. It is widely adopted across metropolitan transmission networks, telecom access rings, and legacy system modernization projects.

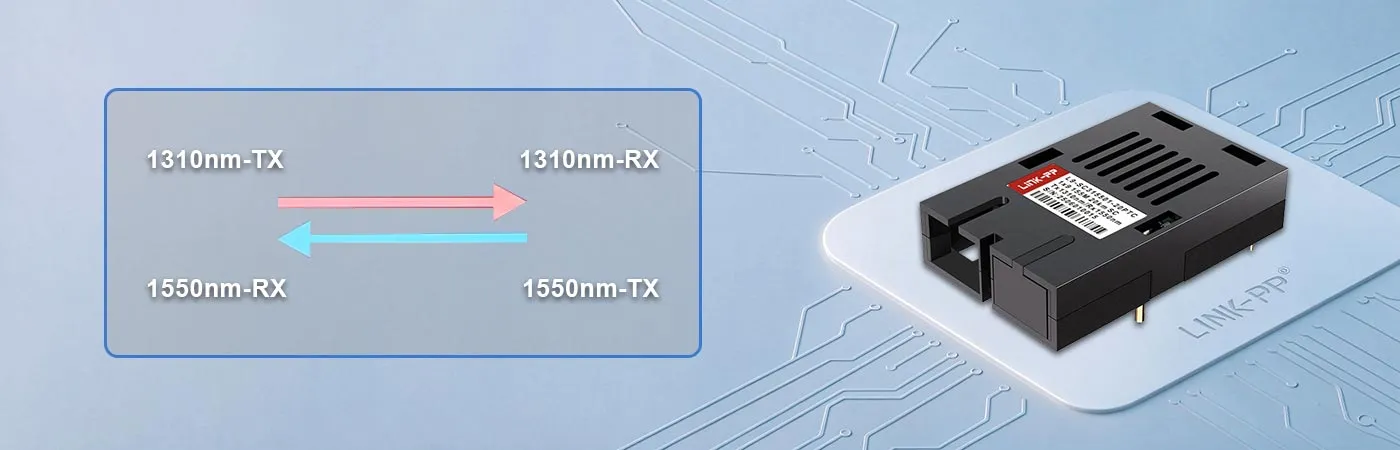

L9-SC315501-20PTC Module with 1310nm-TX/1550nm-RX Wavelength
The optical design pairs a 1310nm-TX channel with a 1550nm-RX channel to support full-duplex traffic on a single fiber core. This optical pairing lowers deployment costs by doubling data throughput per fiber run.
Optical link design allows sustained signal transport over single-mode fiber spans up to 20km without intermediate amplification. Its balanced power budget ensures low signal attenuation across mid-range network loops and campus distribution links.

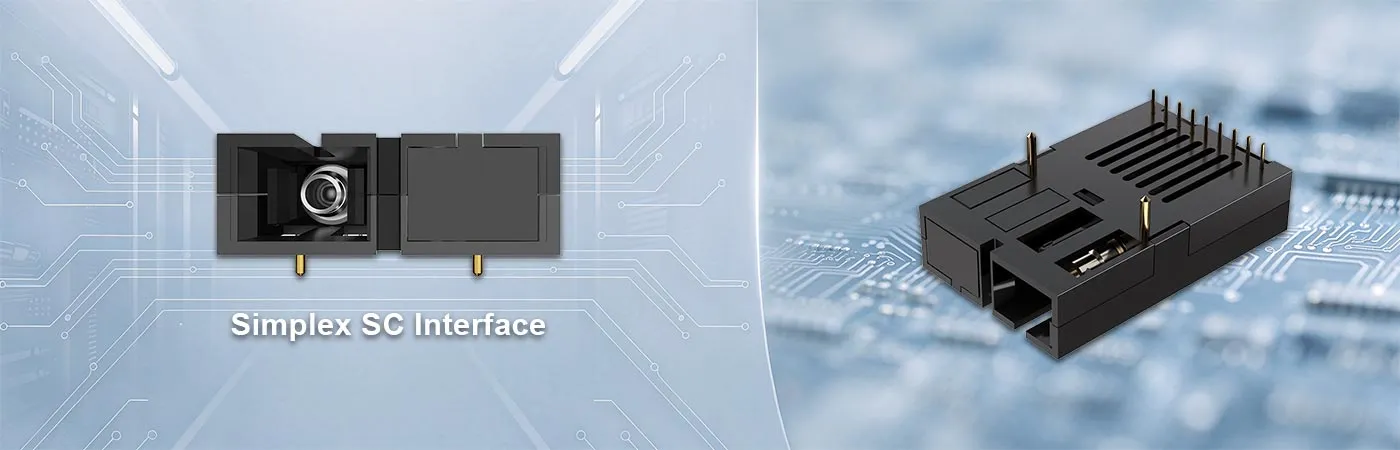

L9-SC315501-20PTC Module with Simplex SC Interface
A single-port SC optical receptacle enables quick, secure patch cord insertion with dependable mechanical latching. This simplex connector format minimizes optical distribution panel footprint while ensuring stable physical contact.
LINK-PP L9-SC315501-20PTC 155M 1×9 Certification
This L9-SC315501-20PTC 1×9 BiDi optical transceiver is built under ISO 9001 quality management and fully complies with CE, RoHS, and FCC international standards.
Each 1×9 155M BiDi module undergoes comprehensive optical and electrical tests to guarantee stable single-fiber transmission before dispatch.
