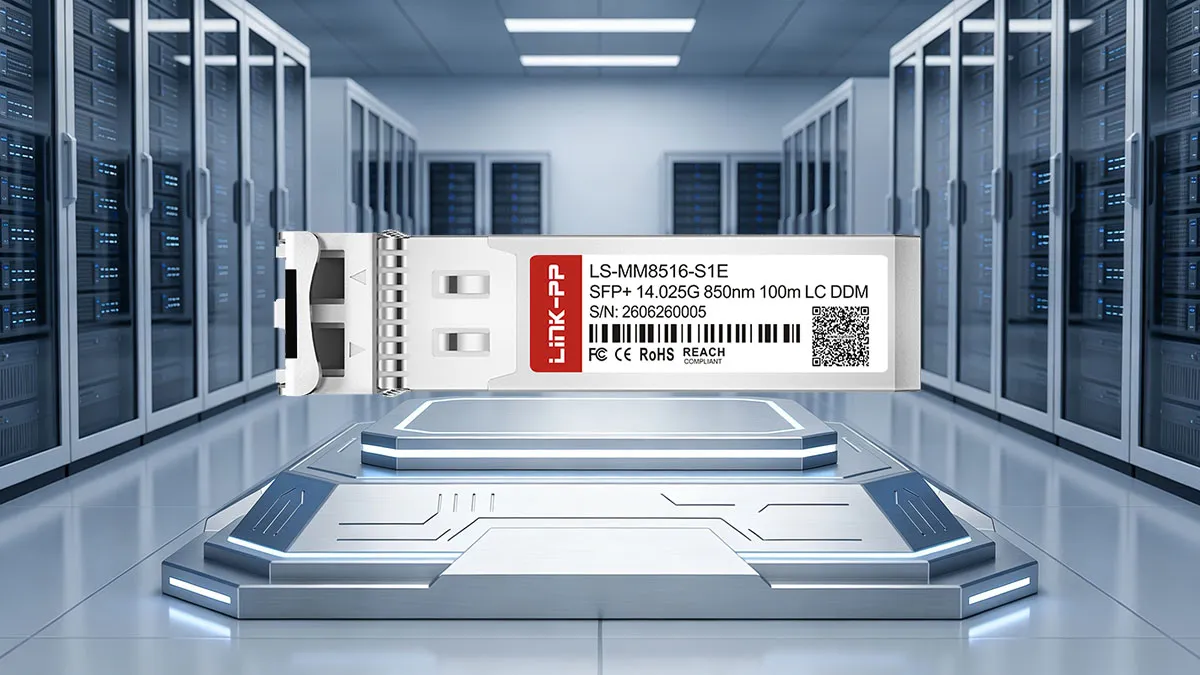

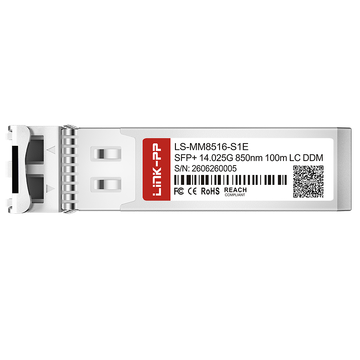

The LINK-PP LS-MM8516-S1E is a high-performance 14.025Gbps SFP+ optical transceiver engineered for 16G Fibre Channel applications. Featuring an 850nm VCSEL transmitter and PIN photodiode receiver, this hot-pluggable module delivers reliable multimode transmission up to 100m over OM3 fiber. Operating with a 3.3V power supply, it supports an extended case temperature range of -20°C to +85°C.
| LINK-PP Part Number | LS-MM8516-S1E | Nama pedagang | LINK-PP |
| Form Factor | SFP + | Max Data Rate | 14.025Gbps |
| Panjang gelombang | 850nm | Jarak Kabel Maks | 100m |
| konektor | LC dupleks | Media | MMF |
| Jenis Transmitter | VCSEL | Jenis Penerima | PIN |
| Kekuatan TX | -7.8 hingga -0.5dBm | Kekuatan RX | -16 hingga -0.5dBm |
| Operasi Kisaran Suhu | -20 ° C hingga + 85 ° C | Sensitivitas Penerima | <-10.5dBm |
| DDM/DOM | Didukung | Protokol | FC-PI-5, SFF-8432, SFF-8472, SFF-8431 |

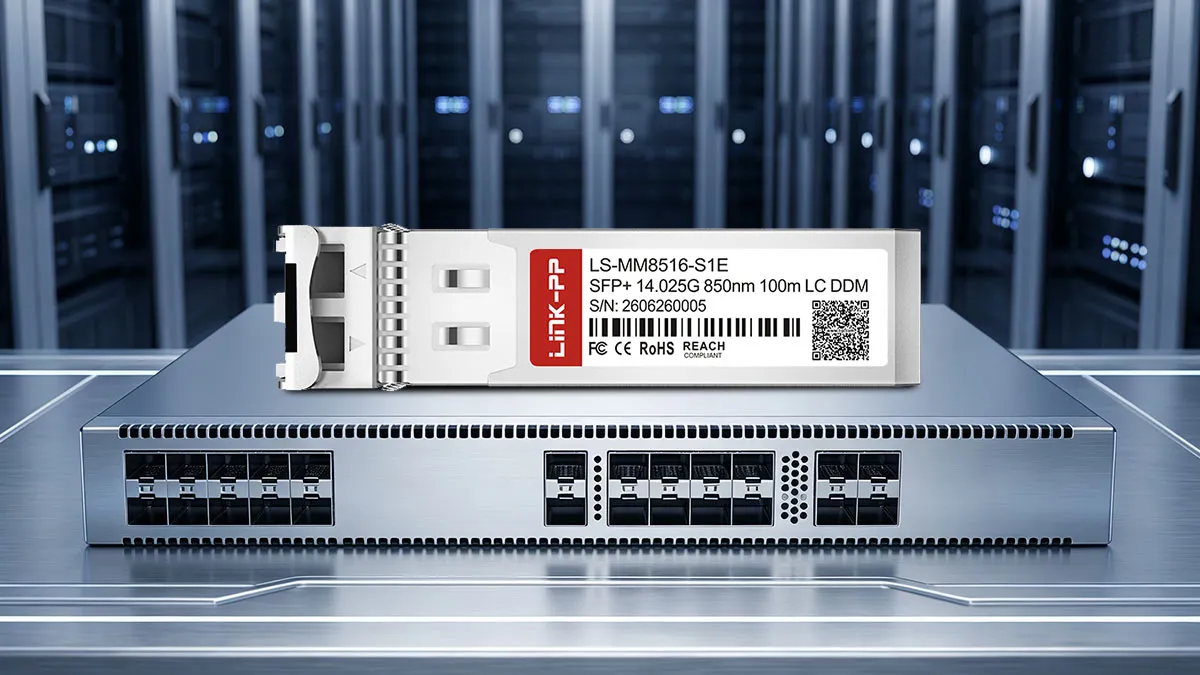

Designed for modern data centers, the LINK-PP LS-MM8516-S1E delivers tri-rate 4.25/8.5/14.025 Gbps compatibility, low power consumption under 300mA, and real-time digital diagnostic monitoring. Built with an industry-standard duplex LC interface and rugged metal housing, it ensures high signal integrity and extended temperature durability.
The LINK-PP LS-MM8516-S1E 16G SFP+ optical module integrates a Class 1 eye-safe VCSEL laser, trans-impedance preamplifier, and MCU controller, providing fully compliant SFP+ MSA architecture for high-speed enterprise storage and networking applications.

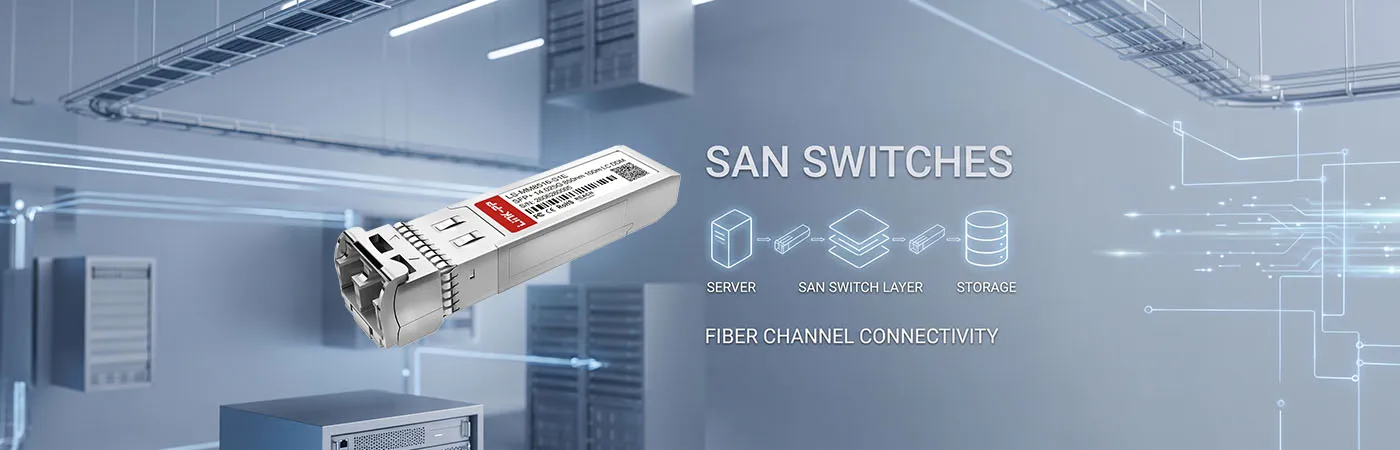

Optimized for SAN switches and host bus adapters, the LS-MM8516-S1E provides seamless 16G Fibre Channel connectivity with backward compatibility for 4G and 8G fabrics, ensuring low-latency data throughput across enterprise storage arrays.

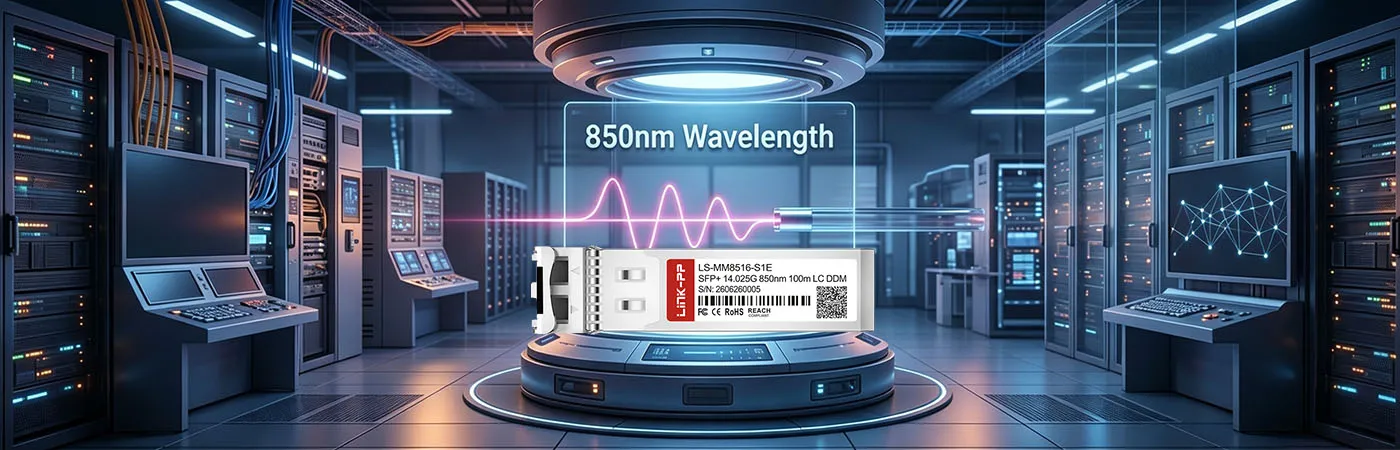

Operating at a nominal 850nm wavelength, the LS-MM8516-S1E utilizes an advanced VCSEL diode with a narrow 0.59nm spectral width, delivering optimized optical dispersion control and superior signal fidelity over multimode fiber infrastructure.
The LS-MM8516-S1E optical transceiver achieves dependable short-reach connectivity up to 100 meters on 50/125µm OM3 multimode fiber and up to 35 meters on OM2 fiber, satisfying high-density intra-rack and inter-rack data center links.

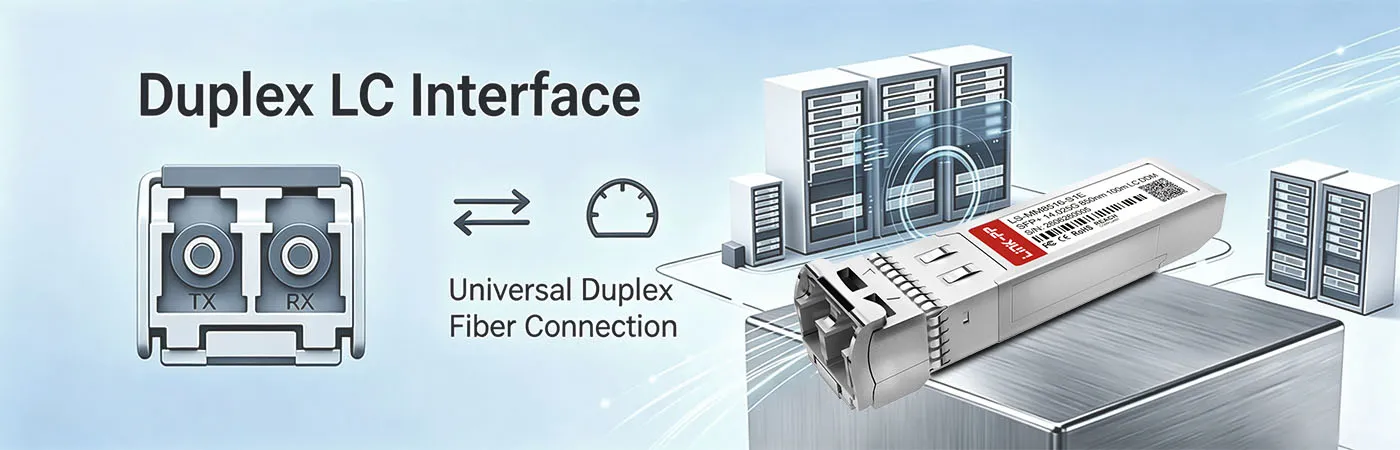

Featuring a standard duplex LC optical receptacle, the LS-MM8516-S1E ensures seamless cable mating and low insertion loss, while its hot-pluggable SFP+ form factor enables rapid installation and effortless field replacement without system downtime.

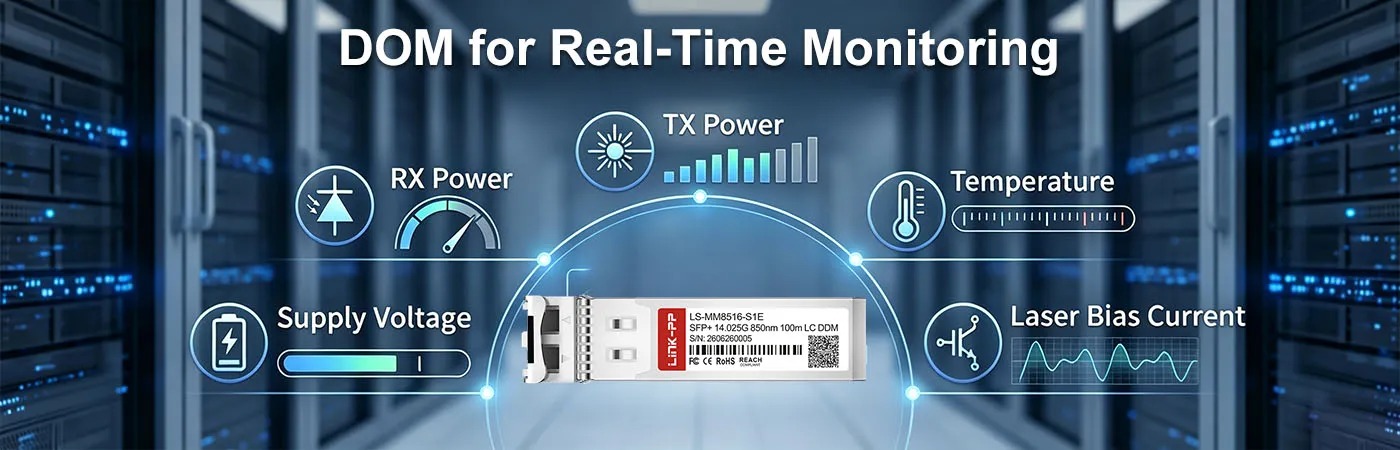

Equipped with SFF-8472 digital optical monitoring (DOM), the LS-MM8516-S1E allows real-time tracking of operating temperature, supply voltage, laser bias current, transmitted optical power, and received optical power for proactive network maintenance.
The LINK-PP LS-MM8516-S1E complies with stringent international quality and safety benchmarks, including CE, FCC, UKCA, UL, REACH, and RoHS standards, ensuring dependable environmental safety, EMC compliance, and industrial-grade operational reliability.
Every LS-MM8516-S1E undergoes comprehensive multi-stage qualification, covering optical parametric calibration, electrical stress analysis, and extended thermal cycling to guarantee flawless stability in mission-critical Fibre Channel networking.
Certified under CE, FCC, UKCA, and UL requirements, the LS-MM8516-S1E strictly adheres to hazardous substance restrictions with full REACH and RoHS compliance for global deployment in high-reliability infrastructures.
Engineered to meet strict SFP+ MSA and SFF-8472 specifications, the LS-MM8516-S1E guarantees plug-and-play interoperability across leading storage switches, enterprise routers, and Fibre Channel host bus adapters.
LINK-PP executes exhaustive test procedures on every 16G SFP+ module, validating optical fidelity, signal integrity, and robust performance under extreme operating conditions.
Spectrum analyzers verify accurate 850nm center wavelength and narrow RMS spectral width below 0.59nm.
Oscilloscope eye-diagram testing validates clean signal margins, low jitter, and excellent transmitter extinction ratio.
BERT evaluates receiver sensitivity at 14.025Gbps, ensuring error-free transmission with BER less than 1×10⁻¹².
Environmental chamber testing ensures consistent optical and electrical operation from -20°C to +85°C.
LINK-PP ships the LS-MM8516-S1E 16G SFP+ transceiver worldwide using secure protective packaging and dependable global logistics for fast, undamaged delivery.
Each SFP+ module is individually sealed in an ESD-shielded blister package.
High-density foam inserts protect transceivers against vibration and impact during transit.
Standard stock orders are rapidly inspected, packed, and dispatched within 24 hours.
We partner with top international couriers to provide tracked worldwide express shipping.

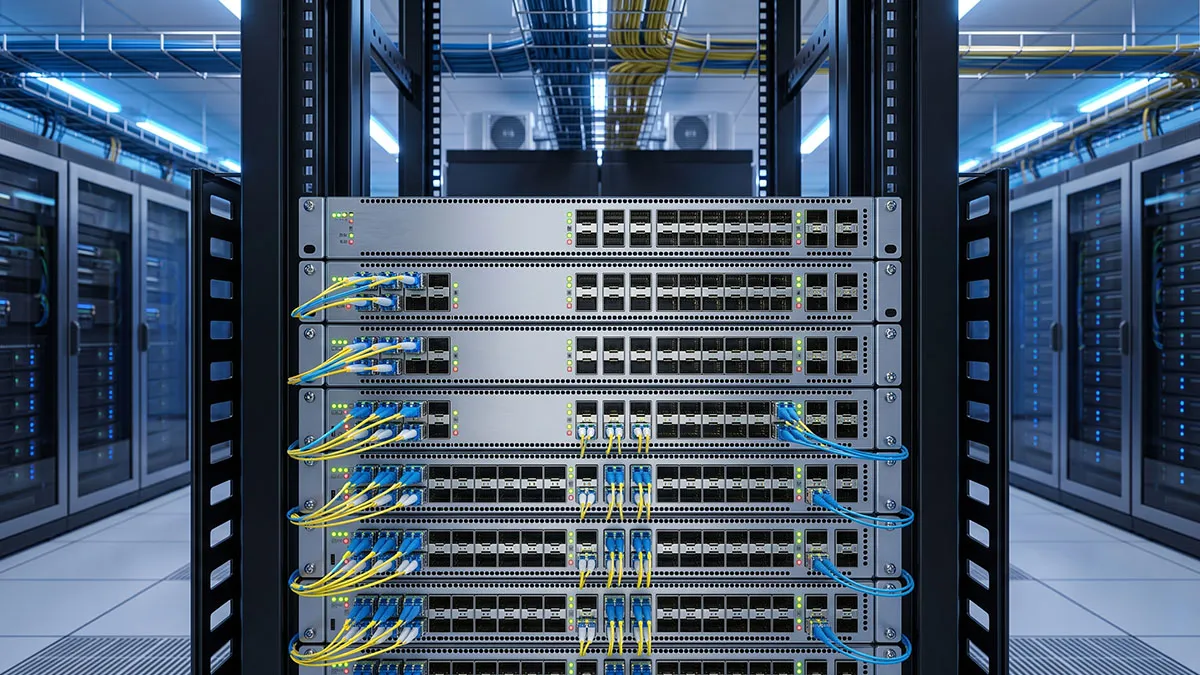

The LINK-PP LS-MM8516-S1E installs effortlessly into standard SFP+ switch ports. Simply insert the transceiver until it clicks, remove the optical dust plug, and connect a duplex LC multimode patch cord for instant high-speed Fibre Channel communication.
LINK-PP Memberikan dukungan teknis profesional, termasuk konsultasi pra-penjualan, verifikasi kompatibilitas, dan pemecahan masalah pasca-implementasi untuk memastikan kelancaran operasi jaringan.
Professional technical guidance to help customers select the most suitable LS-MM8516-S1E modules based on network architecture and application requirements.
Pemeriksaan kompatibilitas dan validasi untuk memastikan pengoperasian yang lancar dengan switch Cisco dan platform jaringan lain yang didukung.
Dukungan langkah demi langkah untuk instalasi, konfigurasi, dan penerapan awal guna memastikan pengoperasian yang stabil dan benar.
Dukungan teknis berkelanjutan sepanjang siklus hidup produk untuk memastikan kinerja yang andal di jaringan kelas perusahaan dan operator telekomunikasi.
LINK-PP menyediakan dukungan purna jual untuk kelancaran pemasangan dan pengoperasian modul optik yang andal.
Pengembalian dan pengembalian dana tanpa alasan dalam 15 hari
Penggantian gratis untuk barang yang rusak saat diterima (DOA) atau barang cacat dalam periode awal.
Layanan perbaikan gratis untuk cacat produksi selama masa garansi.
Pengecualian dan ketentuan garansi berlaku.
![]() Model Saat Ini LS-MM8516-S1E |
|---|
Cocok | LINK-PP | LINK-PP |
Kecepatan Data (Maks) | 14.025Gbps | 14.025Gbps |
Panjang gelombang | 850nm | 1310nm |
konektor | LC dupleks | LC dupleks |
Jarak Kabel (Maks) | 100m | 10km |
Tipe kabel | MMF | SMF |
Kekuatan TX | -7.8 hingga -0.5dBm | -7.8 hingga -0.5dBm |
Sensitivitas Penerima | <-10.5dBm | < -12Bm |
Suhu Operasional | -20 ° C hingga + 85 ° C | 0 ke 70 ° C |
Form Factor | SFP + | SFP + |
Jenis Transmitter | VCSEL | DFB |
Jenis Penerima | PIN | PIN |
DDM/DOM | Didukung | Ya |
Protokol | FC-PI-5, SFF-8432, SFF-8472, SFF-8431 | Sesuai MSA |
| Film | ID # | Deskripsi | Harga | saham | Yuk, Beli ! |
Q: What exact fiber patch cables should I use with this module to achieve the full 100m transmission distance? Oleh C***n
A: To safely reach the maximum 100m transmission distance, you should pair this transceiver with OM3 or OM4 Multimode Fiber (MMF) patch cables using standard Duplex LC connectors. Oleh admin
Q: I need to deploy around 200 units for our data center interconnect. Do you offer any bulk tier pricing or B2B discounts? Oleh D***s
A: We definitely support large deployments! For wholesale orders of 200+ units, we provide specialized B2B pricing and net terms. Please reach out to our sales team directly, and we’ll prepare a customized quote for your project. Oleh admin
Q: Will this fibre channel SFP+ module work with mixed switch environments like Cisco and Brocade SAN switches? Oleh L***a
A: Yes, absolutely! The LS-MM8516-S1E is strictly MSA compliant. It's programmed and tested for seamless interoperability across major brands like Cisco, Brocade, Dell, and Juniper without triggering any vendor lock-in errors. Oleh admin
Q: Does this Duplex LC optical module comply with all IEEE and 16G Fibre Channel industry standards for enterprise use? Oleh S***z
A: Yes, it fully complies with the IEEE 802.3 and 16G Fibre Channel (14.025Gbps) standards, as well as the SFF-8431/SFF-8472 MSA specifications. It is CE, FCC, and RoHS certified for safe global enterprise deployment. Oleh admin
