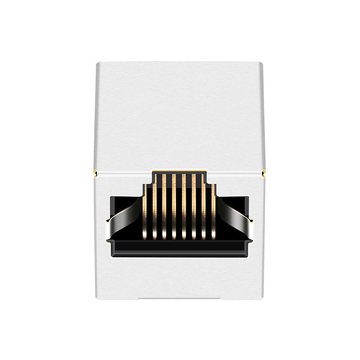

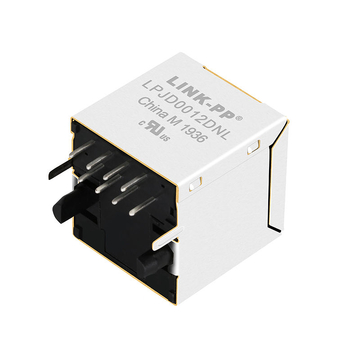

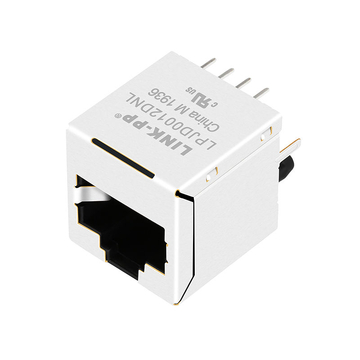

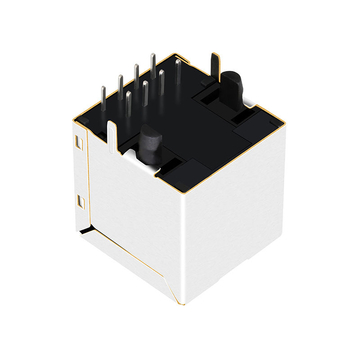

Hanrun HY951140A Compatible LPJD0012DNL 10/100 Base-T rj45 vertical jack with magnetics Without LED

Name: Hanrun HY951140A Compatible LPJD0012DNL 10/100 Base-T rj45 vertical jack with magnetics Without LED
Brand: LINK-PP
SKU: 177470
Price: 1.442 USD
Availability: InStock
Rating: 5 (29 reviews)

# 177470

Product: Hanrun HY951140A Compatible LPJD0012DNL 10/100 Base-T rj45 vertical jack with magnetics Without LED
SKU: 177470
P/N: LPJD0012DNL
Price: $ 3.066
Stock: 2052 in Stock
Sold: 103.1K
Product URL: https://www.l-p.com/products/473372.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

: Hanrun HY951140A Compatible LPJD0012DNL 10/100 Base-T rj45 vertical jack with magnetics Without LED

29 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

29 Reviews

0 Questions

Request Stock

103.1K Sold

$ 3.066

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 3.066

100

$ 2.515

600

$ 2.208

1200

$ 1.687

6000

$ 1.442

Manufacture: LINK-PP

P/N: LPJD0012DNL

Compatible:: LINK-PP; Belfuse; E&E; Hanrun; UDE; X Multiple; YDS

Compatible P/N:: HY951140A

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.008kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1000pcs
Carton size: 32*30*31cm
G.W/carton: 7.5kg

Add to wish

Description

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Hanrun HY951140A Compatible LINK-PP LPJD0012DNL 10/100 Base-T rj45 vertical jack with magnetics For Machine(Top Entry ,Without LED)

The LPJD0012DNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Alarm, TV, Surgical Equipment.

LINK-PP Part Number:	LPJD0012DNL	Hanrun Part Number	HY951140A
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Up	Cores per Port	4
Orientation	180° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.665/16.90	Package Length (Inches/mm)	0.657/16.70
Package Width (Inches/mm)	0.630/16.00	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C
