Name: LPJG17561A4NL 100/1000 Base-T 2X1 Port RJ45 magnetics Jacks Green&Yellow/Green&Yellow LED
Brand: LINK-PP
SKU: 104513
Price: 4.228 USD
Availability: InStock
Rating: 5 (3 reviews)

20 years of production experience and we are intel's and Jabil's partner for many years.

Breadcrumb: Home; Products; Integrated RJ45 Connector; Stacked RJ45 Connector; 2X1 Port RJ45 Connector; 104513

Click to open expanded view

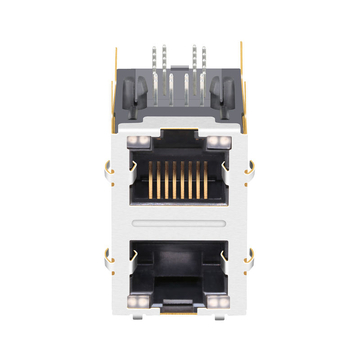

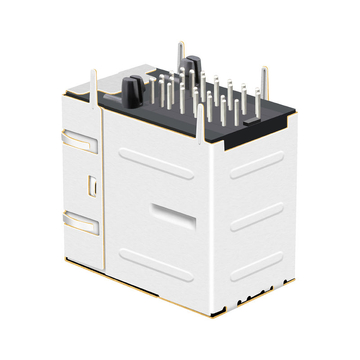

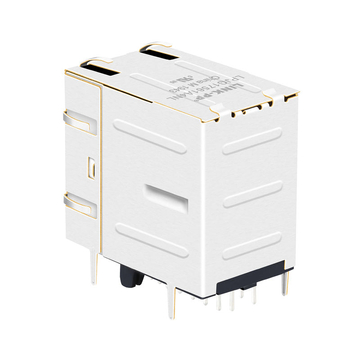

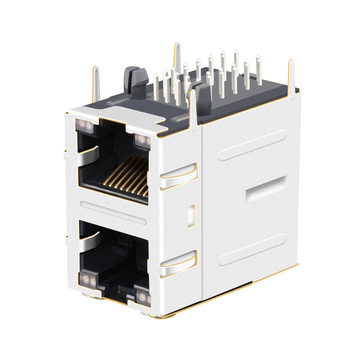

LPJG17561A4NL 100/1000 Base-T 2X1 Port RJ45 magnetics Jacks Green&Yellow/Green&Yellow LED

# 104513

Product: LPJG17561A4NL 100/1000 Base-T 2X1 Port RJ45 magnetics Jacks Green&Yellow/Green&Yellow LED
SKU: 104513
P/N: LPJG17561A4NL
Price: $ 8.995
Stock: 4018 in Stock
Sold: 10.6K
Product URL: https://www.l-p.com/products/438985.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

: LPJG17561A4NL 100/1000 Base-T 2X1 Port RJ45 magnetics Jacks Green&Yellow/Green&Yellow LED

3 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

3 Reviews

1 Questions

Request Stock

10.6K Sold

$ 8.995

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 8.995

100

$ 7.376

600

$ 6.477

1200

$ 4.948

6000

$ 4.228

P/N: LPJG17561A4NL

Compatible:: LINK-PP; Bothhand

Compatible P/N:: LPJG17561A4NL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.02kg
Package: Tray
SPQ: 30pcs
Qty/carton: 540pcs
Carton size: 37*30*30cm
G.W/carton: 11kg

Add to wish

Description

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJG17561A4NL 100/1000 Base-T 2X1 Port RJ45 magnetics Jacks for Intercom and Ethernet Control (Green&Yellow/Green&Yellow LED)

The LPJG17561A4NL supports speed 10/100/1000 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Optical Terminal,Embedded Main Board and Ethernet Control.

LINK-PP Part Number	LPJG17561A4NL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	2x1 Port	Speed	10/100/1000 Base-T
Latch	Both	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green&Yellow/Green&Yellow Led
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.996/25.30	Package Length (Inches/mm)	1.122/28.49
Package Width (Inches/mm)	0.677/17.20	Temperature	0℃ TO +70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Videos

RJ45 2X1 magnetics Jacks

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

LPJG17561A4NL Drawing

PDF
LPJG17561A4NL.pdf

3D Model

ZIP
LPJG17561A4NL.zip
