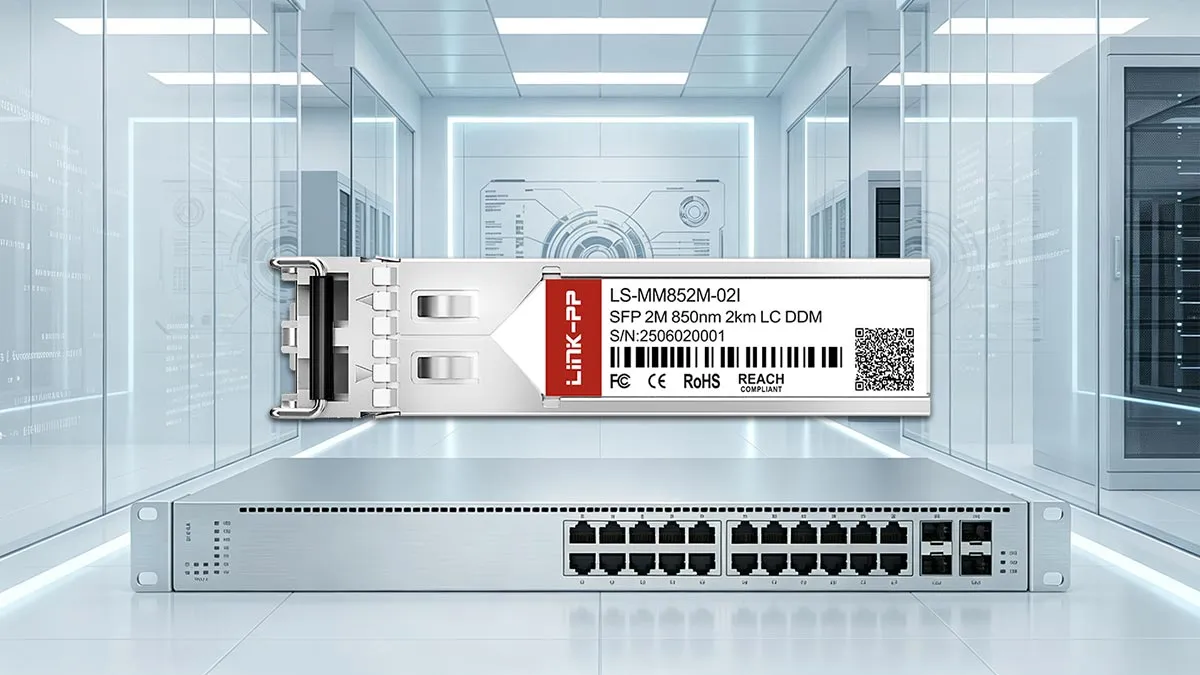

The LS-MM852M-02I is a 2M SFP optical transceiver module engineered with an 850nm VCSEL transmitter to deliver data transmission up to 2km over OM3 multimode fiber. It integrates real-time digital diagnostic monitoring (DDM) via an I²C interface, providing continuous tracking of operating parameters such as optical power, temperature, and supply voltage.
LINK-PP Part Number
LS-MM852M-02I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
2Mbps
Wavelength
850nm
Max Cable Distance
2km
Connector
Duplex LC
Media
MMF
Transmitter Type
VSCEL
Receiver Type
PIN
DDM/DOM
Supported
Operating Temperature Range
-40 to 85°C
Protocols
IEEE C37.94, IEC 62843
Warranty
5 Years
Key Features of LINK-PP LS-MM852M-02I 2M SFP
LINK-PP LS-MM852M-02I is an industrial-grade 2M SFP optical module that brings together an 850nm wavelength, 2km transmission distance, a duplex LC port, and real-time DDM support. It provides reliable and steady optical connectivity built to work smoothly in tough industrial environments.

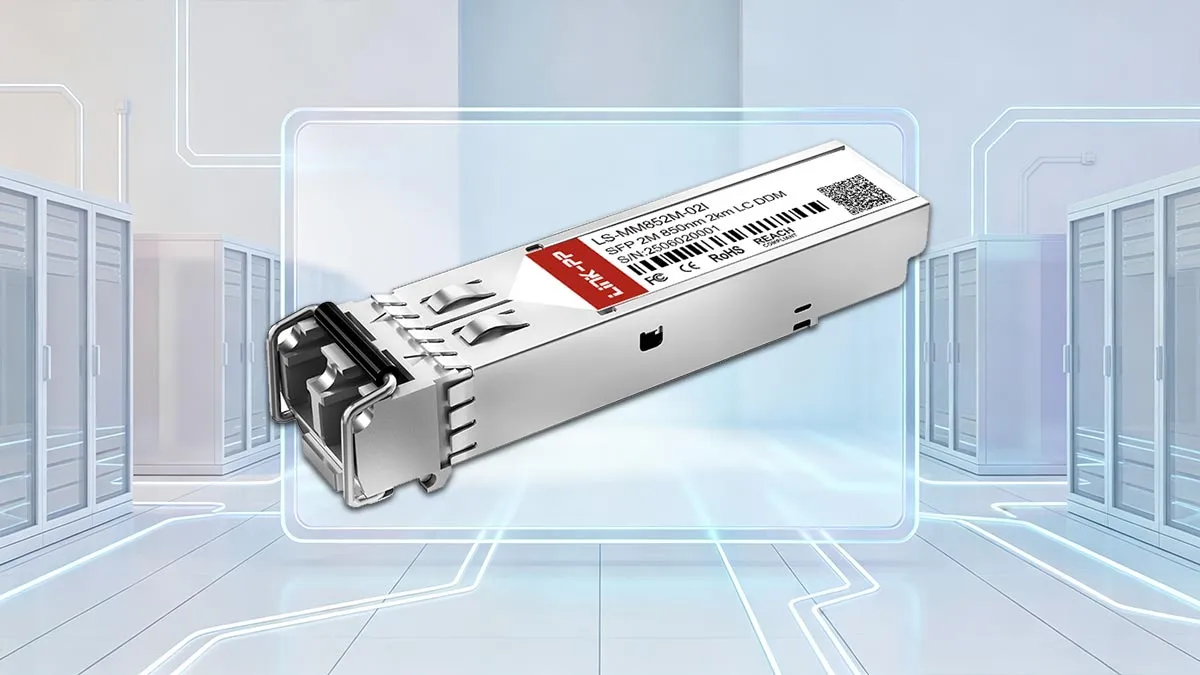

LINK-PP LS-MM852M-02I 2M SFP Optical Module
This module is a perfect solution for ultra-low speed communication networks that need dependable fiber links. It provides the system designer with products for RS232/RS485/RS422 receptacle fiber transmission, making it easy to upgrade copper serial lines to fiber.

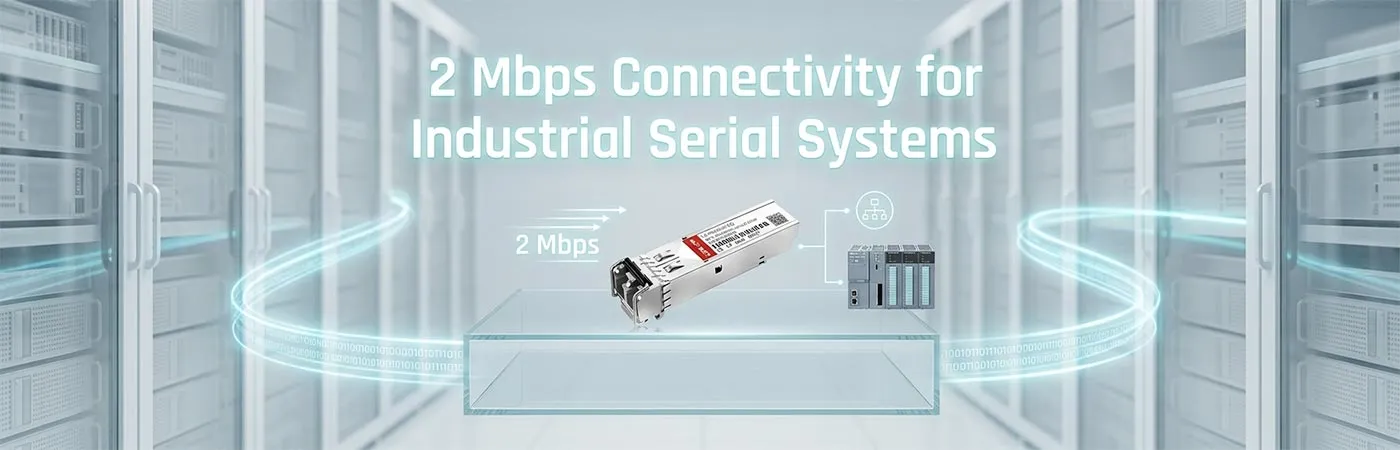

LS-MM852M-02I: 2 Mbps Connectivity for Industrial Serial Systems
A 2Mbps data rate delivers the exact speed needed for smooth industrial serial communication. It ensures steady data exchange between machinery, sensors, and remote serial devices without timing errors.

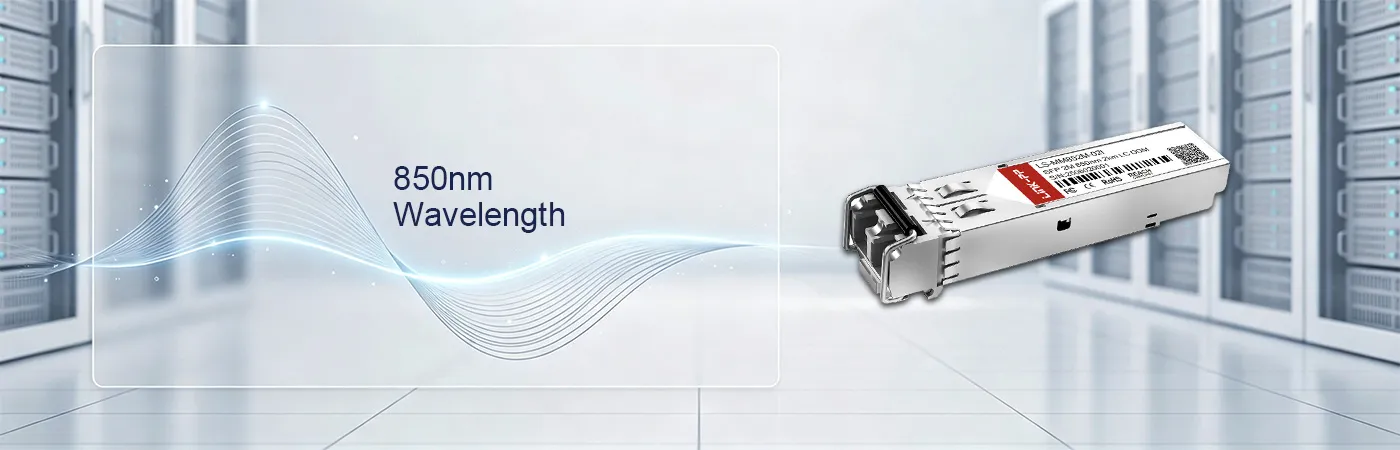

LS-MM852M-02I Module with 850nm Wavelength
The internal 850nm VCSEL transmitter sends clear optical signals across standard multimode fiber cores. It keeps power usage very low while maintaining dependable light output for medium-range connections.
LS-MM852M-02I Module Supporting 2km Transmission
Transmission reach extends up to 2km over standard OM3 multimode fiber cables. This medium-range easily connects separate equipment rooms and field devices without the need for extra signal repeaters.

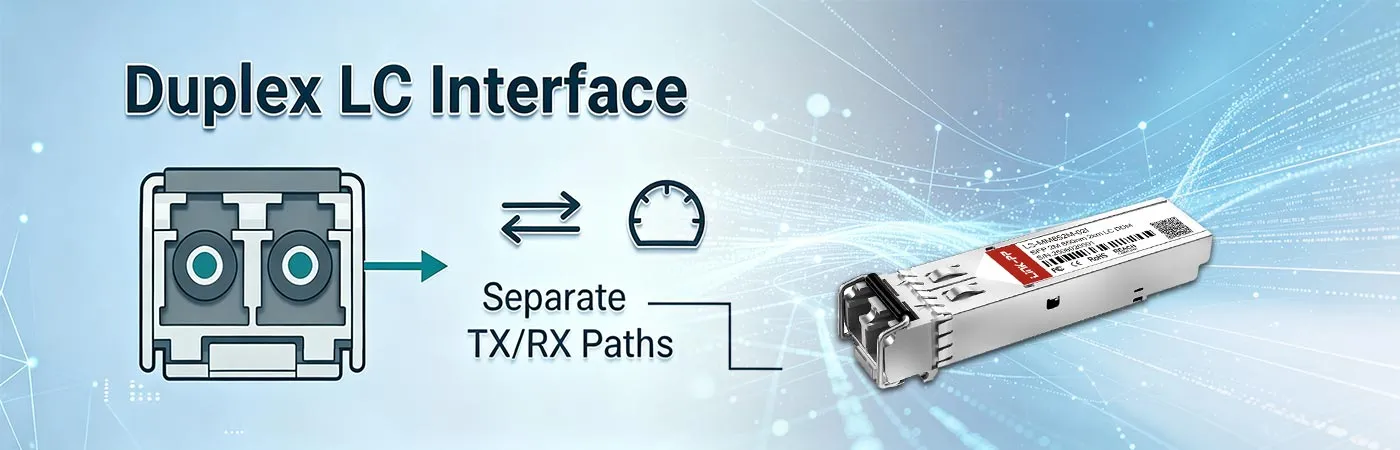

LS-MM852M-02I Module with Duplex LC Interface
A standard duplex LC connector allows quick, snap-in installation using common multimode fiber patch cords. Its compact size helps save panel space on industrial switches, serial converters, and rack equipment.

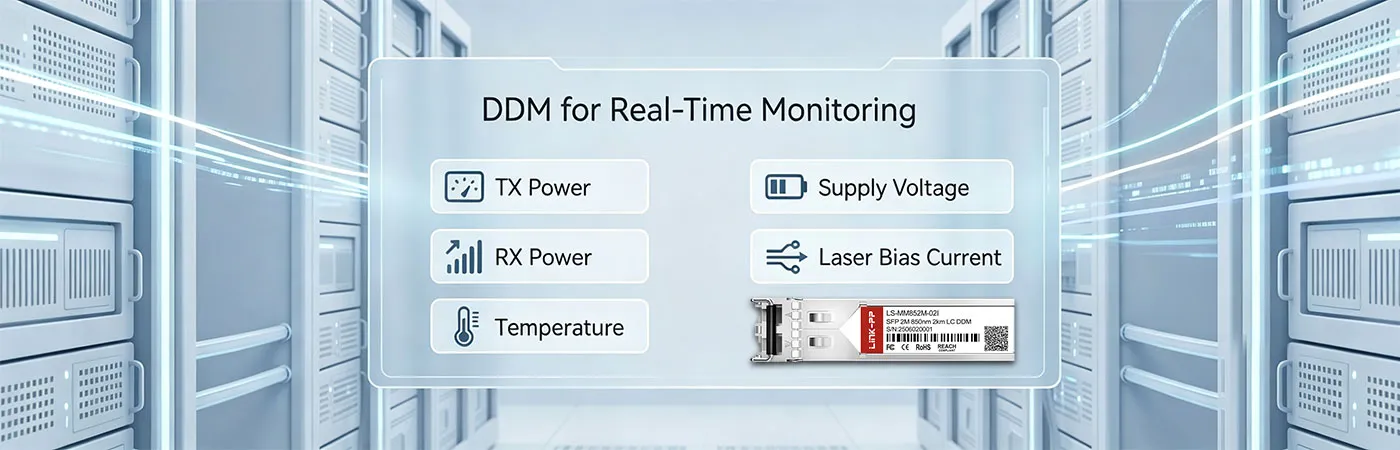

LS-MM852M-02I Module with DDM for Real-Time Monitoring
Built-in DDM functionality lets engineers easily monitor key values like module temperature, bias current, and optical power in real time. This live status tracking helps catch link issues early and simplifies daily system maintenance.
LINK-PP LS-MM852M-02I 2M SFP Certification
LINK-PP LS-MM852M-02I SFP transceiver complies with global industry standards, holding official ISO 9001, CE, RoHS, and FCC certifications. These verified credentials ensure the module meets strict international requirements for manufacturing quality, safety, and environmental protection.
We inspect every 2M SFP module to confirm clear signal transmission and stable power levels. Rigorous temperature testing proves the module can run smoothly even in tough industrial settings.
LS-MM852M-02I Quality Certifications
Official compliance approvals verify that the module meets strict electrical stability and electromagnetic safety standards. These certified ratings confirm the device is authorized for use in regulated industrial installations.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-MM852M-02I Certified for Reliable Host-Device Compatibility
Each module is tested on original industrial switches, serial servers, and media converters to guarantee smooth plug-and-play recognition. Its standardized MSA firmware prevents port error alerts and ensures seamless integration across diverse hardware brands.
Rigorous Testing Ensures Reliable SFP Performance
Every LS-MM852M-02I 2M SFP transceiver completes comprehensive evaluations to verify stable signal quality and operational durability before shipment. To learn more about our validation standards, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength accuracy and spectral width on optical analyzers.
Eye Pattern Test
Evaluate optical signal quality and waveform balance using high-speed oscilloscopes.
Bit Error Rate Test
Measure data transmission accuracy under full network load across fiber.
Temperature Test
Check operating stability across extreme industrial hot and cold environments.
Product Shipping for LINK-PP LS-MM852M-02I 2M SFP
We use secure packaging and dependable carriers to deliver your optical modules safely. Every order is handled quickly to reach your facility without unnecessary delays.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage using specialized protective shielding enclosures.
Shock-Resistant Transport Protection
Absorb transit impacts using durable outer cartons during extended shipping.
Fast Order Processing and Dispatch
Prepare and release verified orders swiftly for on-time warehouse dispatch.
Global Logistics and International Delivery
Ship worldwide through reliable international express courier partners smoothly.

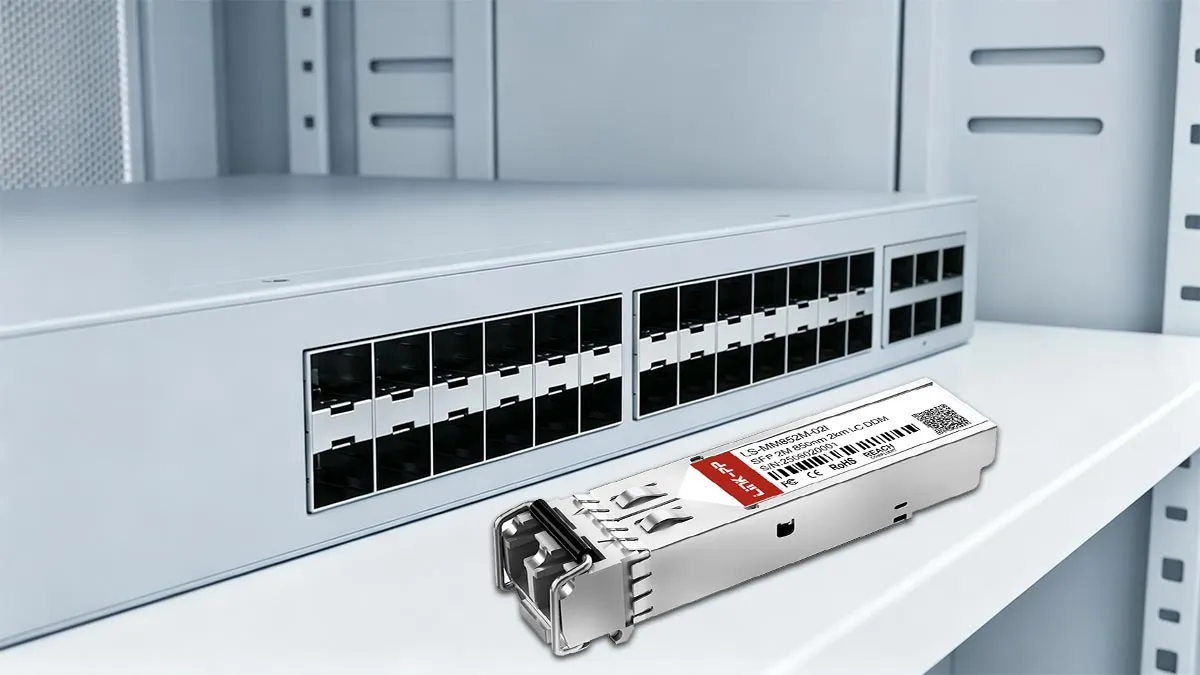

LINK-PP LS-MM852M-02I 2M SFP Usage Demonstration
Slide the LS-MM852M-02I 2M SFP into your host device and click your duplex LC patch cord into place. The module establishes instant optical links for industrial serial systems, extending RS232, RS485, and RS422 communications between remote sensors, controllers, and plant monitoring hardware without complex configuration.
LS-MM852M-02I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-MM852M-02I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
