LS-BL315501-80I is an industrial-grade, 155M SFP BiDi optical transceiver module engineered to sustain rock-solid 80km data links over a single fiber by operating at a 1310nm-TX/1550nm-RX wavelength split via a Simplex LC interface, all while providing real-time Digital Diagnostic Monitoring (DDM) across an extreme temperature span of -40 to +85°C.
LINK-PP Part Number
LS-BL315501-80I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
155Mbps
Wavelength
1310nm-TX/1550nm-RX
Max Cable Distance
80km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-5 to +2dBm
RX Power
-32 to -6dBm
Receiver Sensitivity
-32dBm
DOM Support
Yes
Operating Temperature Range
-40 to 85°C
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Key Features of LINK-PP LS-BL315501-80I 155M SFP
LINK-PP LS-BL315501-80I is a single-mode BiDi SFP transceiver that delivers stable 155Mbps data channels over extended 80km spans. This bidirectional module integrates a single-fiber LC optical port and active diagnostic tools to maintain excellent link reliability under severe temperature swings. It provides hardware interoperability and precise physical-layer telemetry for mission-critical architectures.
LINK-PP LS-BL315501-80I 155M SFP Optical Module
This module is fully compliant with the multi-vendor SFP MSA standard and the SFF-8472 specification for digital diagnostics. It incorporates a highly stable 1310nm DFB laser transmitter coupled with a high-sensitivity PIN photodetector. These standard-compliant components guarantee seamless hot-swappable installation and multi-platform compatibility across enterprise networking hardware.
LS-BL315501-80I: 155 Mbps Connectivity for BiDi Network Topologies
Operating at a reliable Fast Ethernet and SDH/SONET data rate, this device provides a dedicated 155Mbps pipeline for targeted utility, transportation, and industrial automation networks. By leveraging advanced bidirectional signaling, it doubles fiber capacity in existing infrastructures without forcing costly layout expansions. This makes it an efficient fit for legacy transport upgrades and remote field communications.
LS-BL315501-80I Module with 1310nm-TX/1550nm-RX Wavelength
The transceiver utilizes a precise 1310nm-TX and 1550nm-RX wavelength split to handle simultaneous transmitting and receiving over a single strand of glass. This distinct frequency division multiplexing approach eliminates internal crosstalk and maximizes signal integrity across long distances. It allows network planners to optimize dark fiber assets by running independent upstream and downstream paths on a single core.
Engineered with a robust optical power budget, this extended-reach module easily overcomes attenuation barriers to sustain links up to 80km. It is specifically designed to bridge the gap between distant substations, trackside enclosures, and regional aggregation hubs without needing intermediate optical amplifiers. The rugged internal components ensure minimal bit error rates even at the farthest edge of the fiber run.
LS-BL315501-80I Module with Simplex LC Interface
Featuring a streamlined Simplex LC connector receptacle, this module slashes cable bulk and physical footprint demands inside high-density patch panels. The single-fiber port design simplifies cable routing blueprints by cutting the number of required fiber patch cords in half. This setup optimizes space utilization in crowded industrial enclosures while maintaining a reliable, standard-compliant physical layer termination.
LS-BL315501-80I Module with DDM for Real-Time Monitoring
The built-in Digital Diagnostic Monitoring (DDM) engine provides continuous, real-time measurements of key optical metrics including transceiver temperature, supply voltage, and laser bias current. Network operators can remotely query these internal parameters to track real-time transmitter output power and receiver optical power levels. This proactive telemetry helps technicians pinpoint fiber degradation and link faults before a costly network outage occurs.
LINK-PP LS-BL315501-80I 155M SFP Certification
LINK-PP LS-BL315501-80I SFP module undergoes strict manufacturing controls under an ISO 9001 quality system and carries full CE, RoHS, and FCC compliance marks to guarantee safe, eco-friendly operation in global network environments.
Every transceiver is subjected to rigorous optical spectrum analysis, eye pattern evaluation, and severe temperature cycling tests to ensure flawless signal integrity before leaving the factory.
LS-BL315501-80I Quality Certifications
These industrial credentials validate that the module adheres to international engineering standards, ensuring reliable hardware endurance and strict electromagnetic safety bounds.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-BL315501-80I Certified for Reliable Host-Device Compatibility
The module is fully certified across major multi-vendor networking platforms to prevent port initialization errors and ensure smooth, hot-swappable plug-and-play operation.
Rigorous Testing Ensures Reliable SFP Performance
Comprehensive physical-layer evaluations guarantee rock-solid hardware reliability and long-term deployment success, with complete validation guidelines available through the LINK-PP Test Support Center.
Optical Spectrum Test
Verify spectral width boundaries to protect signal isolation.
Eye Pattern Test
Analyze waveform opening metrics to confirm crisp switching.
Bit Error Rate Test
Certify zero packet drop thresholds over long-distance runs.
Temperature Test
Validate stable transceiver operation under extreme environmental conditions.
Product Shipping for LINK-PP LS-BL315501-80I 155M SFP
Secure international transit routes deliver networking hardware directly to field destinations. Transparent tracking provides complete updates until arrival.
Anti-Static Protective Packaging
Shield delicate transceiver circuitry from electrostatic discharge during transit.
Shock-Resistant Transport Protection
Absorb physical road impacts to preserve internal optical alignment.
Fast Order Processing and Dispatch
Accelerate logistics workflows to minimize standard deployment waiting times.
Global Logistics and International Delivery
Utilize reliable express freight networks for rapid worldwide arrival.

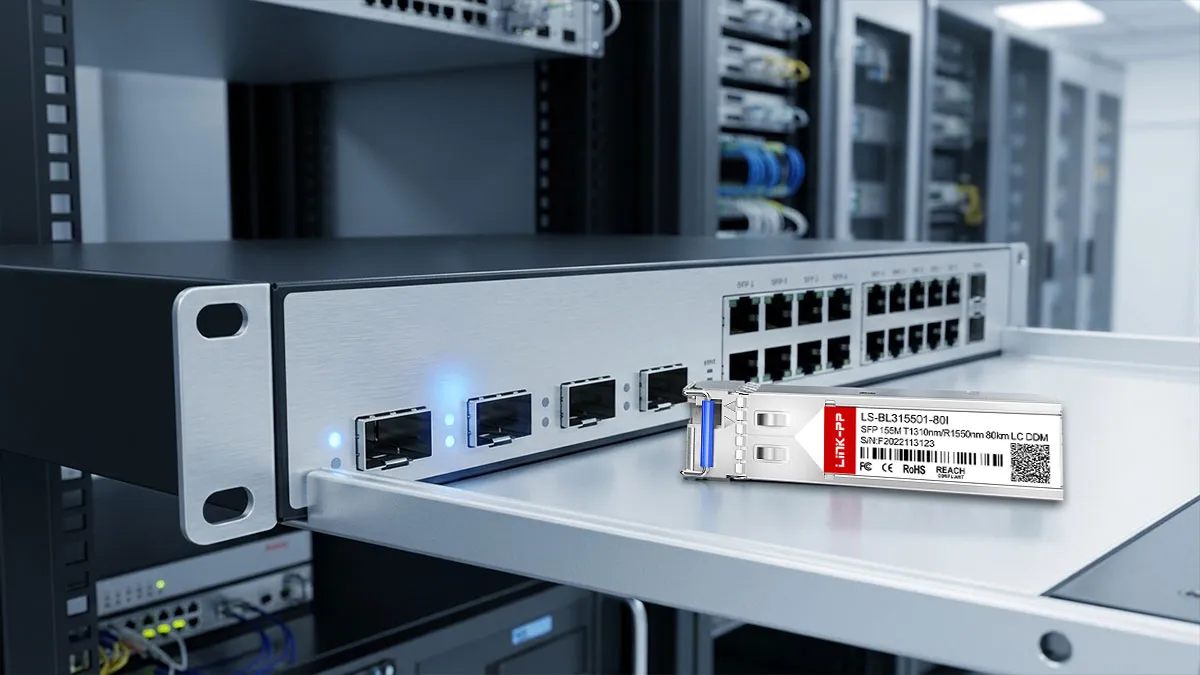

Achieve effortless network activation by plugging the LS-BL315501-80I BiDi SFP transceiver directly into live host devices without powering down. This rugged hardware effectively doubles bandwidth assets for industrial automation setups, remote utility backhauls, and long-haul telecommunication systems operating across extreme outdoor temperature variations without signal degradation.
LS-BL315501-80I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-BL315501-80I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, the transceiver is highly versatile, supporting both 155Mbps Fast Ethernet data streams and telecommunications-grade STM-1 / OC-3 multi-service protocols. By
admin on
2026-02-25
A:
Standard single-mode fiber works perfectly under normal conditions. However, if your cable trays have tight radii, bend-insensitive fiber prevents macrobending losses from exceeding your link budget. By
admin on
2026-01-22
A:
The module maintains a premium signal integrity threshold, delivering a tested Bit Error Rate (BER) of ≤10⁻¹² under full synthetic traffic load at maximum distance. By
admin on
2025-11-19
A:
Yes. The Simplex LC physical latching mechanism and hardened internal components are engineered to resist heavy mechanical vibrations without risking signal interruption. By
admin on
2025-08-06
A:
Link flap suppression is handled by the host switch's operating system, but our module provides rock-solid physical link stability to prevent intermittent flaps from occurring. By
admin on
2025-03-26
Please write comments with more than three
character.
494036
346616
W***g
Poland
Verified
Purchase
5 .0
2026-04-01
Most commercial optics fail when ambient cabinet temperatures drop past -20°C, leading to frequency drift and link flaps, which is why we chose this explicitly rated -40°C to 85°C module for our smart grid substations. Deployed inside unheated roadside enclosures during a severe winter storm cycle, our monitoring systems tracked the DDM internal module temperature at -32°C while maintaining stable Tx power at -3dBm. The laser stability at 1310nm transmission is remarkable, showing zero wavelength drifting under extreme thermal stress.
Please write comments with more than three
character.
494036
346625
L***e
Hungary
Verified
Purchase
5 .0
2026-03-19
Simplex LC is a game changer for tight budgets. Leasing dark fiber across counties is expensive. By using these single-fiber BiDi transceivers, we doubled our capacity on existing infrastructure without laying new lines. Absolute win for our enterprise group.
Please write comments with more than three
character.
494036
346622
G***y
Israel
Verified
Purchase
5 .0
2026-02-13
DDM diagnostics saved us hours of troubleshooting. The built-in Digital Diagnostic Monitoring is fully functional. We can poll the exact optical power and temperature metrics via SNMP. Makes remote monitoring of our remote campus network lines so much easier!
Please write comments with more than three
character.
494036
346619
M***n
Austria
Verified
Purchase
4 .0
2026-01-18
Solid hardware, took an extra day to clear customs. The industrial-grade temperature performance is great for our outdoor highway cameras. The DDM readouts match our Fluke testers exactly. Deducted one star because customs processing delayed delivery by 24 hours. Will order earlier next time.
Please write comments with more than three
character.
494036
346615
J***n
Belgium
Verified
Purchase
4 .0
2025-12-07
Great long-distance BiDi module, but dispatch date slipped by 24 hours. The wavelength separation provides a clean signal, and the modules operate flawlessly across our rural link. The order took two extra business days to leave due to a minor delay in custom firmware flashing. The deployment team had to push their site visit back slightly, but the optics perform beautifully.
Please write comments with more than three
character.
494036
346629
B***g
Romania
Verified
Purchase
5 .0
2025-11-29
Accurate wavelength separation. The 1310nm Tx and 1550nm Rx separation is perfectly isolated. No crosstalk or signal degradation noticed even on lines stretching close to the 80km maximum specification limit. Clear signal all the way!
Please write comments with more than three
character.
494036
346624
C***y
Bulgaria
Verified
Purchase
5 .0
2025-10-05
Stable performance across the entire 80km budget. Tested these SFP transceiver modules on our optical test bench before field deployment. The attenuation tolerance is excellent, and the 155Mbps rate stays clean with zero bit errors over long soak tests.
Please write comments with more than three
character.
494036
346623
T***n
Indonesia
Verified
Purchase
5 .0
2025-09-17
Perfect fit for legacy STM-1/OC-3 lines. A lot of vendors are phasing out 155M optics, so finding reliable long-reach 80km SMF modules is a lifesaver. Running these for a utility company pipeline telemetry network and the connection is rock solid.
Please write comments with more than three
character.
494036
346621
P***g
Italy
Verified
Purchase
5 .0
2025-08-18
While the industry is focusing on high-speed data center links, many of our critical transit signaling networks still rely on stable 155M Fast Ethernet and SDH/OC-3 protocols over long distances. Finding high-quality 80km transceivers with Simplex LC interfaces that bypass strict vendor checks on legacy MSA equipment was a massive bottleneck until we tried these LINK-PP 155M SFP modules. The EEPROM is coded correctly to avoid "unsupported transceiver" errors, and the single-mode fiber physical layer mechanics are flawless. We observed no receiver saturation issues on our 45km test spans, though we utilized a small attenuator to align with long-term safety margins.
Please write comments with more than three
character.
494036
346626
E***d
Ireland
Verified
Purchase
5 .0
2025-07-31
Rugged optics for harsh environments. We run these BiDi SFP modules inside outdoor cabinets for a railway signaling network. Temperatures hit 50°C in summer and below zero in winter, but these industrial-grade (-40°C to 85°C) modules haven't flinched. Highly recommended!
Please write comments with more than three
character.
494036
346620
R***g
Spain
Verified
Purchase
5 .0
2025-06-23
When you pack dozens of SFP modules into a single high-density switch chassis, heat dissipation becomes a major bottleneck even for low-speed 155M monitoring links. The LS-BL315501-80I features an exceptional zinc alloy housing that dissipates heat efficiently, running significantly cooler than the generic transceivers we previously sampled on our bench. According to our chassis temperature sensors, the thermal footprint remains uniform, preventing localized hotspots that threaten power supply stability. The hot-pluggable mechanism is smooth and latches securely without requiring excessive force, protecting the delicate internal backplane pins during maintenance.
