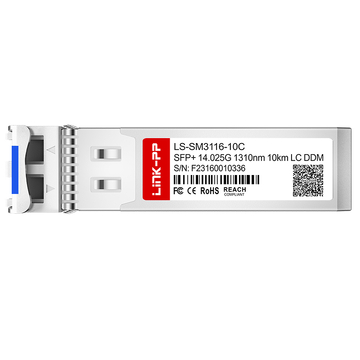

Avago AFCT-57F3xxMZ Compatible LINK-PP 16G FC SFP+ Specifications
The Avago AFCT-57F3xxMZ Compatible LINK-PP module is a high-performance 16G FC SFP+ transceiver designed for demanding storage area networks. This single-mode optical module supports data rates up to 14.025Gbps, making it ideal for Tri-Rate Fibre Channel applications. Operating over a 1310nm wavelength, it ensures reliable data transmission up to 10km with maximum efficiency.
Avago Part Number
AFCT-57F3xxMZ
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
14.025Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-7.8 to -0.5dBm
RX Power
-16 to -0.5dBm
Operating Temperature Range
0 to 70°C
Receiver Sensitivity
< -12dBm
DDM/DOM
Supported
Protocols
MSA Compliant
Key Features of Avago AFCT-57F3xxMZ Compatible LINK-PP 16G FC SFP+
The key features of the Avago AFCT-57F3xxMZ Compatible LINK-PP include a hot-pluggable SFP+ footprint, an advanced 1310nm DFB laser, and a highly sensitive PIN photodiode. This 16G FC SFP+ module is fully compliant with SFP+ MSA and SFF-8472 standards, delivering ultra-low power consumption for enterprise storage environments.
As a premier optical transceiver, the Avago AFCT-57F3xxMZ Compatible LINK-PP delivers exceptional value for 16G Fibre Channel networks. This highly reliable 16G SFP+ optical module guarantees seamless 14.025Gbps data processing, fulfilling the strict demands of modern data centers.
AFCT-57F3xxMZ: 16G Connectivity for Access Networks
Designed to optimize robust infrastructure, the AFCT-57F3xxMZ provides superior 16G connectivity for access networks and SAN environments. It seamlessly supports Tri-Rate 4.25, 8.5, and 14.025 Gb/s speeds, establishing flexible and highly scalable enterprise storage network topologies.
AFCT-57F3xxMZ Module with 1310nm Wavelength
Equipped with a premium DFB laser, the AFCT-57F3xxMZ module with 1310nm wavelength guarantees outstanding signal integrity. This specific optical wavelength minimizes fiber dispersion, allowing the 16G transceiver to maintain pristine optical transmission quality across single-mode infrastructure.
AFCT-57F3xxMZ Module Supporting 10km Transmission
The AFCT-57F3xxMZ module supporting 10km transmission is engineered exclusively for single-mode fiber routing. This impressive 10km reach ensures long-distance connectivity between remote servers and storage arrays without requiring expensive signal amplifiers or additional networking hardware.
AFCT-57F3xxMZ Module with Duplex LC Interface
Featuring a standard interface, the AFCT-57F3xxMZ module with duplex LC interface ensures rapid deployment. This widely adopted duplex LC receptacle provides secure, low-loss connections for standard fiber patch cords, streamlining maintenance within high-density network racks.
AFCT-57F3xxMZ Module with DOM for Real-Time Monitoring
Integrating advanced digital diagnostic monitoring, the AFCT-57F3xxMZ module with DOM for real-time monitoring tracks critical operational parameters. Network administrators can easily access accurate temperature, voltage, bias current, and optical power data through the 2-wire serial interface.
The Avago AFCT-57F3xxMZ Compatible LINK-PP 16G SFP+ module complies with rigorous international safety and environmental standards, including CE, FCC, UKCA, UL, REACH, and RoHS, ensuring global deployment readiness.
Every single AFCT-57F3xxMZ transceiver undergoes a comprehensive quality testing program at the LINK-PP facility, validating peak optical performance, hardware durability, and long-term stability under commercial operating conditions.
AFCT-57F3xxMZ Quality Certifications
Backed by industry-leading quality certifications, the AFCT-57F3xxMZ perfectly satisfies Class I laser safety requirements. These stringent approvals guarantee trusted, hazard-free operations across diverse enterprise networking environments globally.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
AFCT-57F3xxMZ Certified for Reliable Host-Device Compatibility
The AFCT-57F3xxMZ is fully certified for reliable host-device compatibility, strictly adhering to the SFP Multi-Source Agreement to guarantee seamless integration with major OEM switches and routers.
LINK-PP implements strict quality control procedures, where rigorous testing ensures reliable SFP+ performance for every AFCT-57F3xxMZ module before leaving the manufacturing floor.
Optical Spectrum Test
The optical spectrum test verifies the precise 1310nm central wavelength and side-mode suppression ratio.
Eye Pattern Test
An advanced eye pattern test guarantees excellent 14.025Gbps signal integrity and optimal extinction ratio.
Bit Error Rate Test
The rigorous bit error rate test guarantees flawless transmission, maintaining performance below standard required thresholds.
Temperature Test
Temperature testing confirms the AFCT-57F3xxMZ module operates flawlessly within commercial environments from 0°C to 70°C.
Product Shipping for Avago AFCT-57F3xxMZ Compatible LINK-PP 16G SFP+
We prioritize safe delivery worldwide, ensuring the product shipping for Avago AFCT-57F3xxMZ Compatible LINK-PP 16G SFP+ modules maintains component integrity from our warehouse to you.
Anti-Static Protective Packaging
Each module is sealed in premium anti-static packaging to prevent electrical damage.
Shock-Resistant Transport Protection
We utilize robust shock-resistant materials to safeguard modules during rough transit handling.
Fast Order Processing and Dispatch
Our streamlined fulfillment system guarantees rapid order processing and immediate warehouse dispatch.
Global Logistics and International Delivery
Partnering with leading carriers enables reliable global logistics and swift international delivery.
Deploying the transceiver is incredibly straightforward. The Avago AFCT-57F3xxMZ Compatible LINK-PP 16G SFP+ usage demonstration illustrates its convenient hot-pluggable design. Simply insert the module into a compatible Fibre Channel switch port and connect the duplex LC single-mode fiber patch cord.
AFCT-57F3xxMZ Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable AFCT-57F3xxMZ modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes! While the standard indoor optics are great for server rooms (0°C to 70°C), we also offer an industrial wide-temp version (-40°C to 85°C) specifically built to withstand harsh outdoor cabinet environments and extreme temperature fluctuations. By
admin
A:
Yes, we do! For large-scale batch deployments in data centers or campus fiber networks, we provide tiered pricing. Please reach out to our sales team directly, and we'll set you up with a custom, highly competitive B2B quote. By
admin
A:
Yes. The LS-SM3116-10C strictly adheres to IEEE 802.3 standards and 16G Fibre Channel specifications. It's designed specifically for enterprise SANs, ensuring safe, compliant, and stable storage networking without any packet loss. By
admin
A:
For the full 10km reach, you need to use Single-Mode Fiber (SMF) paired with a Duplex LC connector. Multi-mode fiber won't work for this specific 1310nm wavelength and long-distance requirement. By
admin
A:
Absolutely! This SFP+ transceiver is fully MSA compliant and has passed extensive multi-brand switch compatibility tests. It works perfectly plug-and-play with Cisco, Arista, and Juniper gear without any OEM lock-in issues. By
