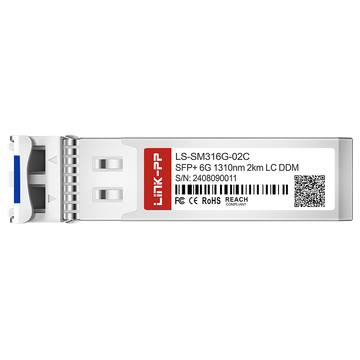

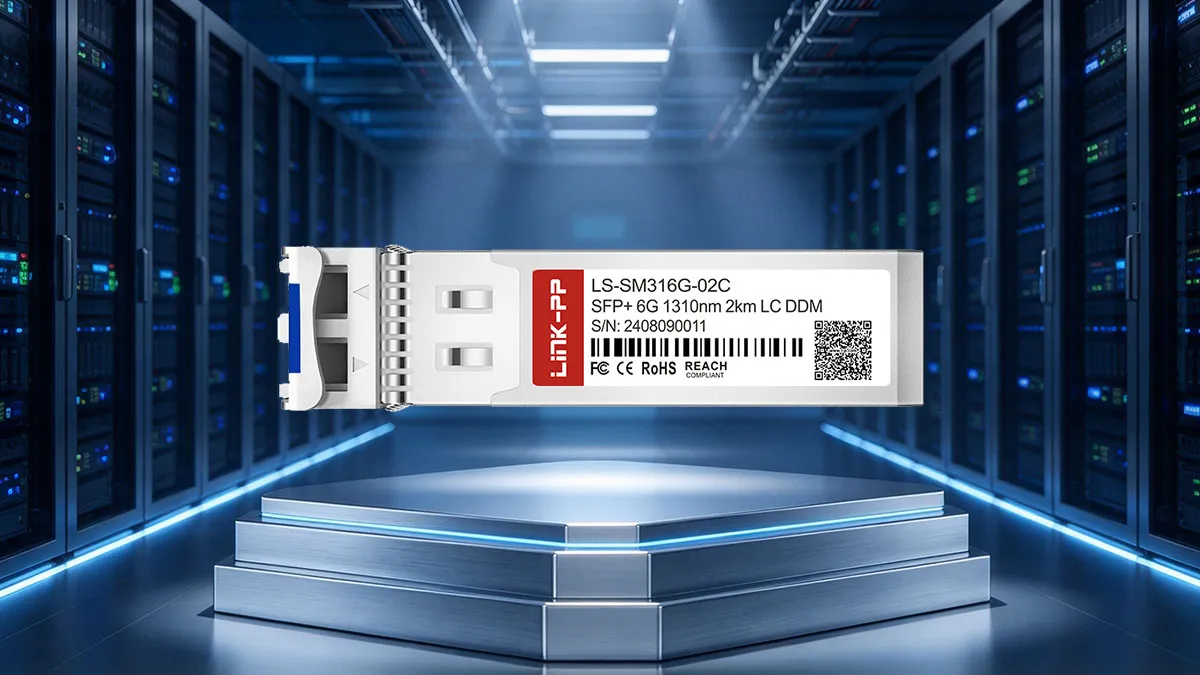

The LINK-PP LS-SM316G-02C is a high-performance 6G SFP+ transceiver designed for demanding network environments. This hot-pluggable optical module delivers up to 6.25Gbps data rates using an advanced 1310nm FP laser. Engineered for single-mode fiber, the LS-SM316G-02C ensures seamless connectivity up to 2km while supporting a standard commercial temperature range.
LINK-PP Part Number
LS-SM316G-02C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
6.25Gbps
Wavelength
1310nm
Max Cable Distance
2km
Connector
Duplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
-6.5 to -0.5dBm
RX Power
-20 to -1dBm
Receiver Sensitivity
-15dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA Compliant
Key Features of LINK-PP LS-SM316G-02C 6G SFP+
Delivering exceptional efficiency, the LINK-PP LS-SM316G-02C 6G SFP+ features ultra-low power consumption under 320mA. This hot-swappable transceiver is fully RoHS compliant and strictly adheres to SFP+ MSA and SFF-8472 standards, making the LS-SM316G-02C a highly versatile solution for modern data communication systems.

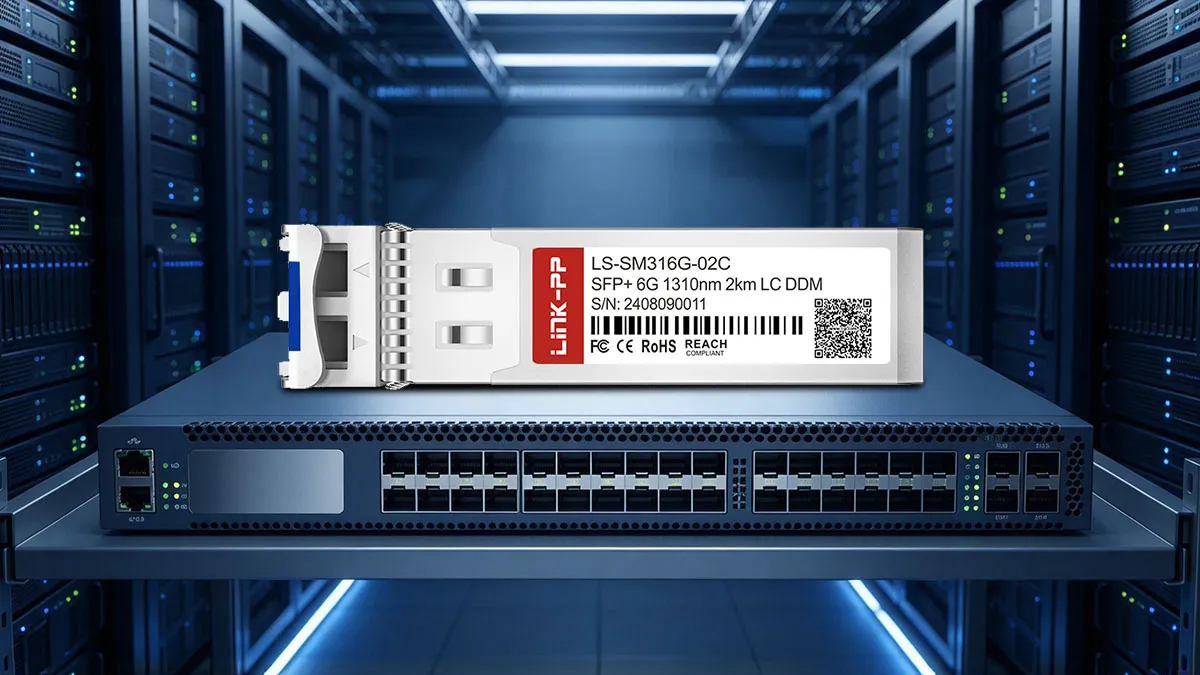

LINK-PP LS-SM316G-02C 6G SFP+ Optical Module
As a top-tier fiber optic transceiver, the LINK-PP LS-SM316G-02C 6G SFP+ optical module integrates a sensitive PIN photodiode and TIA. This single-mode optical module guarantees superior signal integrity and class I laser safety compliance for enterprise networks.
LS-SM316G-02C: 6G Connectivity for LTE System
Optimized for telecommunication infrastructure, the LS-SM316G-02C provides flawless 6G connectivity for LTE systems. Network operators trust this reliable transceiver to handle demanding mobile fronthaul applications, ensuring stable data transmission across complex wireless communication and optical links.
LS-SM316G-02C Module with 1310nm Wavelength
Operating at a precise 1310nm wavelength, the LS-SM316G-02C module utilizes a premium FP laser transmitter to minimize chromatic dispersion. This optimal 1310nm frequency ensures clear, low-loss signal delivery, maximizing overall optical performance in high-speed networking environments.
LS-SM316G-02C Module Supporting 2km Transmission
Engineered for medium-reach deployments, the LS-SM316G-02C module effectively supports 2km transmission distances. By leveraging quality single-mode fiber connections, this optical transceiver bridges campus networks and edge computing facilities with uncompromised 6.1Gbps data fidelity over a 2km span.
LS-SM316G-02C Module with Duplex LC Interface
Equipped with a standard duplex LC interface, the LS-SM316G-02C module ensures quick and secure patch cord connections. This hot-pluggable duplex LC receptacle design simplifies rack installations, allowing seamless integration with existing high-density fiber optic network equipment.
LS-SM316G-02C Module with DOM for Real-Time Monitoring
Featuring advanced Digital Diagnostic Monitoring, the LS-SM316G-02C module with DOM provides crucial real-time monitoring capabilities. Administrators can instantly track vital parameters like temperature, voltage, and optical power via the 2-wire interface, guaranteeing proactive network maintenance and reliability.
LINK-PP LS-SM316G-02C 6G SFP+ Certification
The LINK-PP LS-SM316G-02C 6G SFP+ maintains strict adherence to global industry standards. Our comprehensive certification process guarantees maximum safety, environmental compliance, and long-term operational durability.
Every single LS-SM316G-02C undergoes a rigorous factory quality testing program. We simulate real-world networking scenarios to ensure each optical transceiver exceeds stringent manufacturing and performance benchmarks.
LS-SM316G-02C Quality Certifications
Demonstrating superior manufacturing integrity, the LS-SM316G-02C proudly holds major international quality certifications. This highly rated transceiver is fully compliant with CE, FCC, UKCA, UL, and REACH requirements.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-SM316G-02C Certified for Reliable Host-Device Compatibility
The LS-SM316G-02C is comprehensively certified for reliable host-device compatibility. It seamlessly integrates with mainstream switches, routers, and telecommunication hardware without triggering vendor lock-in or system errors.
Uncompromising quality assurance and rigorous testing ensure reliable SFP+ performance. Each module must pass critical optical and electrical evaluations before factory shipment.
Optical Spectrum Test
We verify the precise 1310nm center wavelength to guarantee perfect optical spectrum stability.
Eye Pattern Test
Advanced eye pattern testing confirms optimal signal integrity and prevents data transmission degradation.
Bit Error Rate Test
Our strict Bit Error Rate test guarantees flawless data transmission with practically zero packet loss.
Temperature Test
The commercial temperature test confirms stable operation within the demanding 0°C to 70°C environment.
Product Shipping for LINK-PP LS-SM316G-02C 6G SFP+
We prioritize secure product shipping for the LINK-PP LS-SM316G-02C 6G SFP+ to ensure your networking equipment arrives safely and ready for immediate deployment.
Anti-Static Protective Packaging
Premium anti-static bags protect internal components from electrostatic discharge damage during transit.
Shock-Resistant Transport Protection
Customized shock-resistant trays absorb impact vibrations during rough international cargo transit conditions.
Fast Order Processing and Dispatch
Streamlined warehouse operations guarantee exceptionally fast order processing and immediate global dispatch.
Global Logistics and International Delivery
Trusted global logistics partners ensure secure and highly trackable international delivery worldwide.

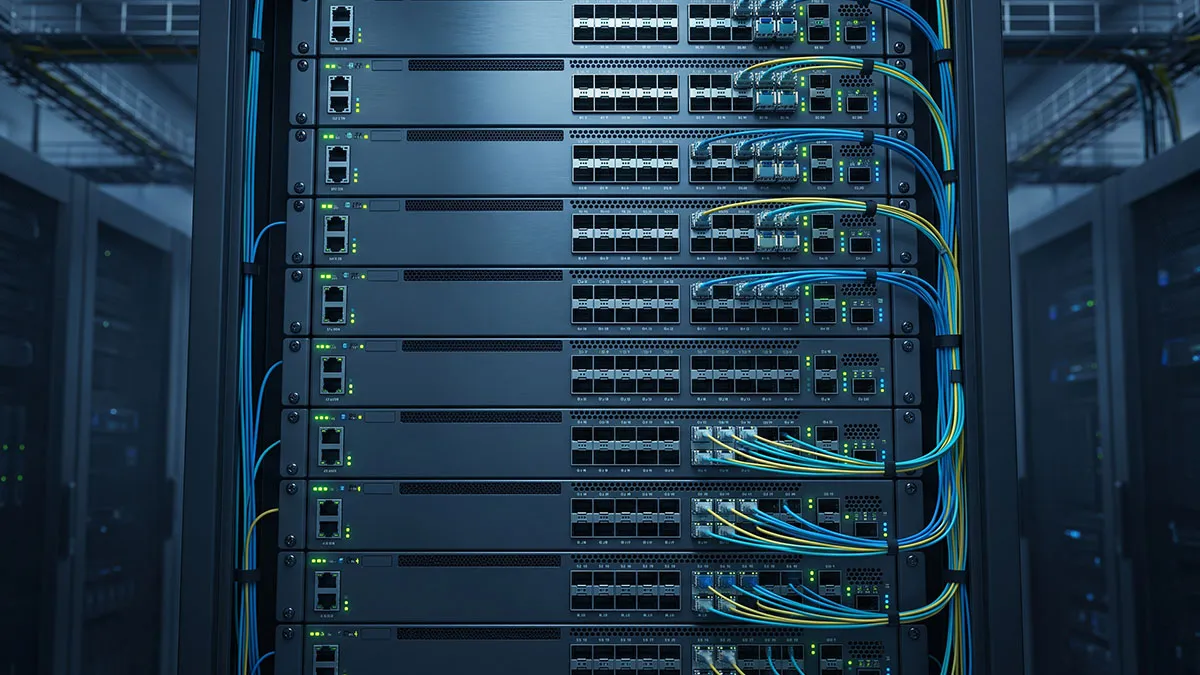

LINK-PP LS-SM316G-02C 6G SFP+ Usage Demonstration
Deploying this 6G SFP+ optical module within your local telecom or enterprise infrastructure is remarkably simple. Just plug the hot-swappable transceiver into a compatible SFP+ port, attach your duplex single-mode LC fiber cable, and immediately unlock seamless 6Gbps connectivity engineered for standard 2km transmission.
LS-SM316G-02C Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-SM316G-02C modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
The module complies with CPRI (Common Public Radio Interface) and OBSAI specifications, as well as SFF-8431, SFF-8432, and SFF-8472 MSA standards for Digital Optical Monitoring. It also carries Class 1 laser safety (IEC 60825-1 / FDA) and RoHS, CE, and FCC certifications. By
admin
A:
Correct, the LS-SM316G-02C (-02C suffix) is rated for commercial indoor telecom rooms (0°C to +70°C / 32°F to 158°F). If you are installing in unconditioned outdoor enclosures or tower-top RRUs, we offer the industrial wide-temperature (-40°C to +85°C) counterpart (LS-SM316G-02I)—just request the -02I version when ordering. By
admin
A:
Use 9/125µm OS2 Single-Mode Fiber (SMF) terminated with Duplex LC/UPC connectors. For outdoor tower runs, pair it with armored waterproof LC-to-LC single-mode jumper cables up to 2km. By
admin
A:
Yes. Each LS-SM316G-02C is built with a high-linearity 1310nm DFB transmitter and sensitive PIN photodiode receiver tested to <1E-12 BER at 6.144 Gbps. You get the exact same link margin, SFF-8472 DOM telemetry accuracy, and synchronization stability as OEM telecom optics while cutting hardware CAPEX by up to 70%. By
admin
A:
Yes. The LS-SM316G-02C supports CPRI Option 6 (6.144 Gbps), OBSAI, and downward-compatible 3G/2.4G/1.25G optical rates, and we can code the EEPROM for your exact BBU, RRU, or switch vendor. Because it uses a standard 1310nm DFB laser over SMF, it links cleanly with OEM 6G transceivers on the far end. By
admin
A:
Definitely. We provide aggressive wholesale tier pricing for telecom contractors and wireless ISPs ordering 50, 100, or 500+ units. Contact our B2B team with your BOM and compatible vendor requirements to lock in volume discounts and free sample testing. By
admin
Please write comments with more than three
character.
497193
548198
C***n
Taiwan, Province of China
Verified
Purchase
5 .0
2026-09-20
Installed thirty LS-SM316G-02C 6G SFP+ transceivers in our indoor telecom hotel connecting Nokia and Ericsson baseband units to remote radio heads. Zero CPRI frame slips over 2km OS2 fiber and clean DOM telemetry.
Please write comments with more than three
character.
497193
548203
F***n
Germany
Verified
Purchase
5 .0
2026-09-13
Picked up a pair for a specialty 6G optical storage and radio test rig coupled with our rackmount NAS management switch. 1310nm DFB transmitter output is super steady between 0°C and 70°C commercial temps. ✨
Please write comments with more than three
character.
497193
548205
A***s
Ecuador
Verified
Purchase
5 .0
2026-08-28
Tested interop between Huawei BBU ports and third-party optical transport gear over 1.5km OS2 patch panels. The LS-SM316G-02C locked 6G CPRI immediately with -4.2 dBm RX power and zero bit errors over 72 hours.
Please write comments with more than three
character.
497193
548210
F***a
Uruguay
Verified
Purchase
5 .0
2026-08-27
We use these 6G 1310nm Duplex LC modules for campus DAS head-end distribution and private LTE small cells in Chicago. PIN photodiode receiver sensitivity is spot on and temperatures stay cool at 42°C.
