LS-MM8501-02I represents a 155M multi-mode SFP optical module utilizing an 850nm wavelength, enabling transmission distances up to 2km over multi-mode fiber, and integrating a VCSEL-based transmitter with a PIN photodiode receiver within an industrial-grade operating temperature range of −40 °C to +85 °C.
LINK-PP Part Number
LS-MM8501-02I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
155Mbps
Wavelength
850nm
Max Cable Distance
2km
Connector
Duplex LC
Media
MMF
Transmitter Type
VSCEL
Receiver Type
PIN
TX Power
-9 to 0dBm
RX Power
-23 to -1dBm
Receiver Sensitivity
-23dBm
DOM Support
Yes
Operating Temperature Range
-40 to 85°C
Protocols
MSA Compliant
Key Features of LINK-PP LS-MM8501-02I 155M SFP
LINK-PP LS-MM8501-02I is a 155M SFP optical transceiver designed for stable data transmission over multi-mode fiber with an 850nm wavelength and up to 2km reach. It features a duplex LC interface and integrated digital diagnostics monitoring, making it suitable for commercial networking environments requiring reliable and simple deployment.
LINK-PP LS-MM8501-02I 155M SFP Optical Module
Built to follow the SFP Multi-Source Agreement, this optical module can be used with a wide range of standard SFP interfaces. It also supports SFF-8472, allowing the host system to access key module information through a digital interface.
LS-MM8501-02I: 155 Mbps Connectivity for MMF Industrial Links
A data rate of 155Mbps supports stable communication in MMF-based industrial links and control systems. It is well suited for scenarios where consistent low-speed transmission is required across short to medium distances.
LS-MM8501-02I Module with 850nm Wavelength
Operating at 850nm, this module is optimized for multi-mode fiber transmission. This wavelength allows efficient signal propagation over MMF while maintaining reliable optical performance.
LS-MM8501-02I Module Supporting 2km Transmission
The transceiver supports transmission distances of up to 2km over multi-mode fiber. This reach provides flexibility for extending network connections within campuses or industrial facilities.
LS-MM8501-02I Module with Duplex LC Interface
Equipped with a duplex LC connector, it enables separate transmit and receive channels over MMF. This interface supports stable bidirectional communication and is widely used in SFP-based deployments.
LS-MM8501-02I Module with DOM for Real-Time Monitoring
Digital Optical Monitoring (DOM) functionality allows continuous tracking of key parameters during operation. Users can monitor metrics such as optical power levels and module status to support maintenance and system management.
LINK-PP LS-MM8501-02I 155M SFP Certification
LINK-PP LS-MM8501-02I SFP module meets recognized quality and safety standards, including ISO 9001, CE, RoHS, and FCC, ensuring consistent manufacturing and compliance.
Each transceiver undergoes standardized testing procedures to verify optical performance and functional stability before shipment.
LS-MM8501-02I Quality Certifications
Design and production follow industry-recognized practices to maintain consistent product reliability and traceability.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.

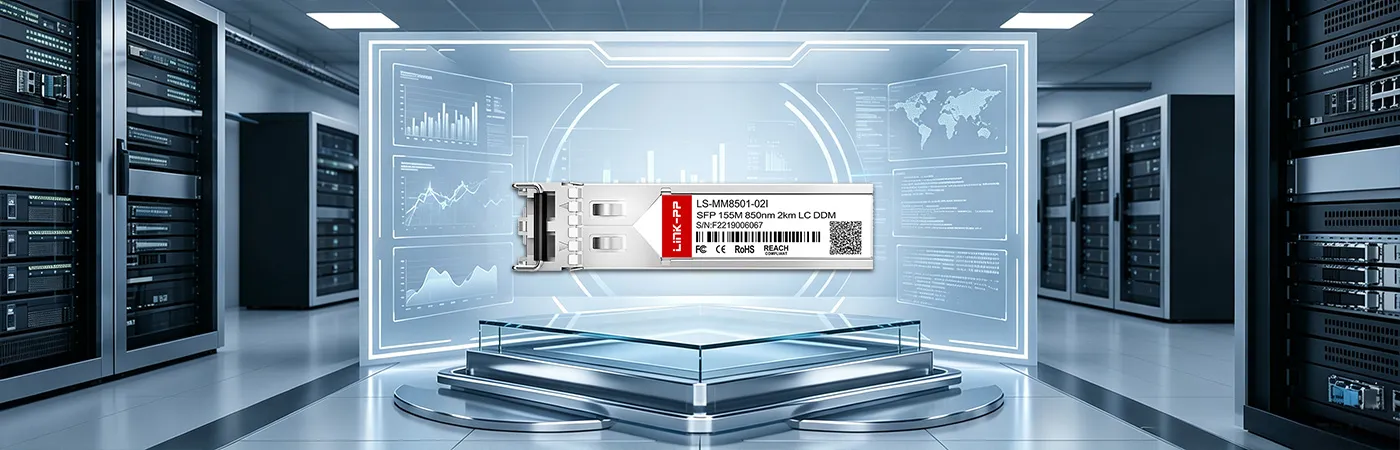

LS-MM8501-02I Certified for Reliable Host-Device Compatibility
The module is tested with multiple networking devices to ensure stable operation across a wide range of compatible systems.
Rigorous Testing Ensures Reliable SFP Performance
Comprehensive validation routines confirm consistent signal behavior and operational stability in varied environments. Explore detailed procedures at the LINK-PP Test Support Center.
Optical Spectrum Test
Evaluate wavelength stability and emission profile accuracy.
Eye Pattern Test
Inspect waveform shape for signal distortion.
Bit Error Rate Test
Monitor error levels during continuous data transmission.
Temperature Test
Simulate thermal conditions to confirm stable operation.
Product Shipping for LINK-PP LS-MM8501-02I 155M SFP
LINK-PP SFP module is handled with care to maintain product condition during transit. Efficient workflows support quick turnaround and dependable global delivery.
Anti-Static Protective Packaging
Minimize static risks during storage and shipment.

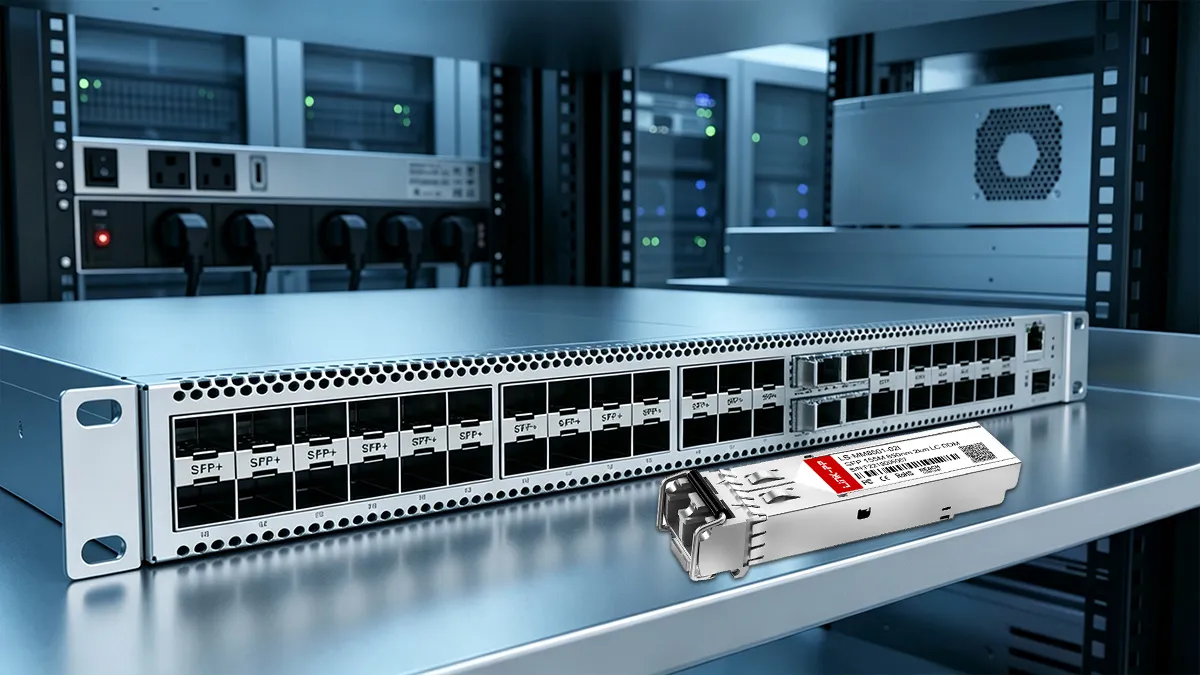

LINK-PP LS-MM8501-02I module can be directly deployed into SFP ports for quick setup, enabling consistent 155Mbps transmission across multi-mode fiber, and is commonly applied in industrial environments, control units, and short-distance network connections.
LS-MM8501-02I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-MM8501-02I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
