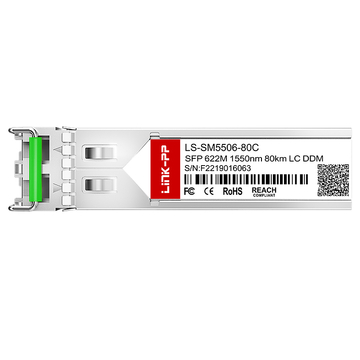

The Generic SDH-SFP-OC12-LR2 Compatible LINK-PP module is a high-performance optical transceiver designed for long-reach networking. This 622Mbps SFP module operates at a 1550nm wavelength over single-mode fiber, achieving distances up to 80km. Featuring a duplex LC interface, it ensures seamless integration into standard telecommunication systems, delivering cost-effective and highly reliable optical connectivity solutions.
Generic Part Number
SDH-SFP-OC12-LR2
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
622Mbps
Wavelength
1550nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-3 to +3dBm
RX Power
-32 to -6dBm
Receiver Sensitivity
-28dBm
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
MSA Compliant
Key Features of Generic SDH-SFP-OC12-LR2 Compatible LINK-PP 622M SFP
This hot-pluggable optical module integrates an advanced DFB laser and PIN photodetector to guarantee exceptional signal integrity. Operating on a single 3.3V power supply, the standard commercial transceiver provides real-time digital diagnostic monitoring, fully complying with SFP MSA and SFF-8472 industry standards.
Engineered for superior data transmission, this premium 622M SFP optical module seamlessly handles continuous network traffic. Its robust hardware architecture ensures maximum durability, making it an ideal choice for enterprise-grade fiber optic networking environments.
SDH-SFP-OC12-LR2: 622M Connectivity for Fast Ethernet
Upgrading legacy infrastructure is effortless with this module, which provides reliable 622M connectivity for Fast Ethernet and SONET OC-12 applications. It effectively minimizes network latency while maintaining consistent bandwidth across demanding long-distance communication links.
SDH-SFP-OC12-LR2 Module with 1550nm Wavelength
Utilizing a precise 1550nm wavelength DFB laser, this single-mode transceiver minimizes optical dispersion and signal loss. This optimized optical spectrum ensures clear, error-free data transfer across extensive fiber optic network spans without requiring costly signal amplification.
Designed for extended reach, this powerful transceiver supports an impressive 80km transmission distance over SMF. The high optical power budget makes it the perfect solution for metropolitan area networks and remote telecommunication base station connections.
SDH-SFP-OC12-LR2 Module with Duplex LC Interface
Featuring a standard duplex LC interface, this fiber optic connector ensures quick and secure physical patching. The industry-standard LC receptacle design provides broad compatibility with existing fiber patch cables, simplifying data center installations and maintenance.
SDH-SFP-OC12-LR2 Module with DOM for Real-Time Monitoring
Built-in Digital Optical Monitoring functionality allows network administrators to track vital parameters instantly. This real-time diagnostic monitoring feature accurately reports temperature, voltage, laser bias current, and optical power, ensuring proactive network maintenance and uninterrupted operation.
Complying with rigorous global standards, this networking device holds CE, FCC, UKCA, UL, and REACH certifications. These approvals guarantee environmental safety and electromagnetic interference compliance worldwide.
Every single unit undergoes a comprehensive factory testing procedure before shipment. This stringent quality assurance protocol ensures flawless hardware execution and maximizes the product lifespan under heavy loads.
SDH-SFP-OC12-LR2 Quality Certifications
Beyond essential electrical safety, the module adheres to strict RoHS environmental guidelines. These recognized industry qualifications give enterprise consumers complete confidence in the manufacturing excellence of the transceiver.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SDH-SFP-OC12-LR2 Certified for Reliable Host-Device Compatibility
Extensively evaluated across various networking equipment brands, this MSA-compliant component guarantees seamless interoperability. Switches and routers recognize the device instantly, ensuring plug-and-play network expansion without firmware conflicts.
Rigorous Testing Ensures Reliable SFP Performance
Our state-of-the-art laboratory employs advanced diagnostic tools to validate structural integrity and data transmission stability, delivering exceptionally dependable telecommunication hardware to clients.
Optical Spectrum Test
Precise wavelength measurements confirm optimal laser performance and eliminate dangerous signal overlapping risks.
Eye Pattern Test
Strict waveform evaluations guarantee excellent signal clarity and minimize jitter during high-speed data transmission.
Bit Error Rate Test
Continuous data stream monitoring verifies that the bit error rate remains impeccably low.
Temperature Test
Thermal cycling ensures the standard commercial module functions perfectly between zero and seventy degrees.
Product Shipping for Generic SDH-SFP-OC12-LR2 Compatible LINK-PP 622M SFP
We prioritize secure packaging and efficient dispatch procedures, ensuring your networking components arrive safely and promptly to keep your infrastructure projects strictly on schedule.
Anti-Static Protective Packaging
Specialized ESD bags shield the sensitive electronic components from static electricity damage.
Deploying this hot-pluggable transceiver is incredibly straightforward. Simply insert the module into any compatible switch port, remove the protective dust cap, and connect your single-mode fiber patch cord to establish a highly reliable optical communication link instantly.
SDH-SFP-OC12-LR2 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable SDH-SFP-OC12-LR2 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
The module requires standard 9/125μm OS2 Single Mode Fiber (SMF) terminated with a Duplex LC connector. For bench testing or links under 30km, we strongly recommend adding a 10dB to 15dB optical attenuator on the RX side to prevent the high-power 1550nm DFB laser from saturating or damaging the sensitive PIN receiver. By
admin on
2026-07-06
A:
Absolutely. We provide volume discount tiers starting at 100 pcs, scaling up to 1,000, 3,000, and 6,000+ units for bulk B2B procurement. We also support net terms for qualified enterprise accounts, corporate invoicing, and customized packaging options. Please reach out directly to our sales team for an official project quotation. By
admin on
2026-07-02
A:
Yes. While the LS-SM5506-80C is rated for standard commercial operating temperatures (0°C to +70°C), we also manufacture the industrial-grade model LS-SM5506-80I, which operates reliably across an extended temperature range of -40°C to +85°C for outdoor enclosures, edge cell towers, and harsh industrial environments. By
admin on
2026-06-02
A:
Yes. The LINK-PP LS-SM5506-80C transceiver is coded and tested for full Multi-Source Agreement (MSA) compliance and offers wide OEM compatibility (including Cisco ONS-SI-622-L2, Juniper, Alcatel-Lucent 3HE00042AA, Brocade, and HPE H3C). It plugs directly into your host equipment without port blocking, unrecognized transceiver alarms, or CLI warnings. By
admin on
2026-05-04
A:
All LINK-PP transceivers are manufactured in ISO9001-certified facilities and fully comply with CE, FCC, RoHS, and REACH environmental and safety regulations. The digital diagnostic monitoring (DDM/DOM) interface adheres strictly to the SFF-8472 industry standard for accurate real-time parameter tracking. By
admin on
2026-04-26
Please write comments with more than three
character.
476898
450819
K***r
Turkey
Verified
Purchase
5 .0
2025-12-11
Dropped these 622M SFPs into mixed Cisco and Juniper edge routers for utility SCADA backhaul. Multi-vendor interoperability is 100% plug-and-play without any vendor lock-in errors or CLI warnings.
Please write comments with more than three
character.
476898
450812
S***t
Mexico
Verified
Purchase
5 .0
2025-10-14
Tested across an 72km OS2 single-mode link between distribution hubs. The 1550nm DFB laser maintains exceptional optical margin with receiver sensitivity holding steady at -28dBm. Outstanding stability for carrier-grade deployments.
Please write comments with more than three
character.
476898
450820
D***e
United States
Verified
Purchase
5 .0
2024-07-25
my customer is very happy with these 10/25/40G Transceiver Modules\'s and they cost him a fraction of the price of Pulse\'s 10/25/40G Transceiver Modules
Please write comments with more than three
character.
476898
450807
G***y
Hong Kong
Verified
Purchase
5 .0
2023-11-29
The whole system works very smoothly. Their modules are always solid. There is no problem with data transfer. Yoeng is very supportive and she quite understands my needs...
