What are RJ45 Connectors?

A RJ45 Connector (frequently referred to as a MagJack) is an 8-pin or 10-pin, 8-contact (8P8C or 10P8C) networking interface that combines a standard modular Ethernet jack with internal magnetic transformers. It serves as the critical physical bridge connecting local hardware devices to wired Ethernet networks.

Core functions of LINK-PP's RJ45 Connectors include:

• Standardized Networking: Provides a universal physical connection port for standard Ethernet cables (such as Cat5e, Cat6, and Cat6a).

• Signal Conditioning: Utilizes internal magnetics to filter electrical noise, isolate high voltages, and match impedance between the network PHY chip and the cable.

• EMI Suppression: Incorporates built-in common mode chokes and metal shielding to significantly minimize Electromagnetic Interference.

• PCB Space Savings: Consolidates discrete magnetic components directly into the connector housing, freeing up valuable printed circuit board real estate.

• Plug-and-Play Replacement: Designed to industry-standard footprints, they serve as cost-effective, drop-in replacements for major legacy brands without requiring costly board redesigns.

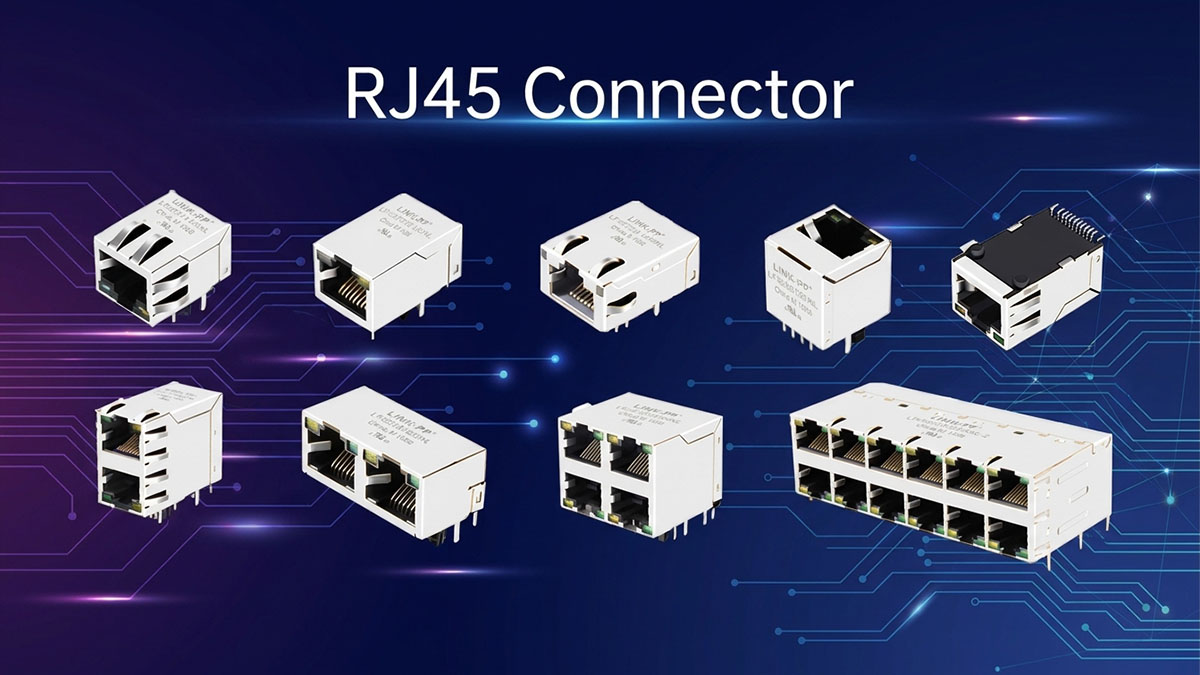

Types of Integrated RJ45 Connectors

LINK-PP offers a diverse array of integrated RJ45 connectors, strictly categorized by transmission speed, port configuration, mounting style, and value-added features.

By Transmission Speed

We classify these components based on the IEEE Ethernet standards they support, ensuring data is transmitted without bottlenecking.

Matching the transmission speed of the connector to the specific PHY chip used in your circuit design guarantees optimal bandwidth utilization and stable network performance.

By Port Configuration (Density)

LINK-PP provides different housing arrays to accommodate everything from single endpoints to massive enterprise switching fabrics.

• Single Port: Designed in a 1x1 configuration, ideal for standard endpoint devices like desktop computers and network cameras.

• Multi-Port: Available in 1x2, 1x4, 1x6, and 1x8 linear arrays, perfectly suited for small office hubs and unmanaged edge switches.

• Stacked Ports: High-density 2x1, 2x2, 2x4, 2x6, and 2x8 configurations built to maximize port count on enterprise networking equipment and rack servers.

Selecting the appropriate port configuration allows hardware designers to optimize the front panel layout and effectively manage PCB real estate.

By Mounting Style & Form Factor

The physical architecture of your circuit board and manufacturing processes dictate how the RJ45 jack must be mechanically mounted. Different form factors ensure compatibility with various soldering methods and device enclosures.

• SMT: Surface Mount Technology (SMT) designs, chosen based on your automated PCB assembly and wave soldering requirements.

• Vertical (Top Entry): Specialized vertical orientations designed for unique chassis configurations requiring top-down cable insertion.

• Low-Profile: Ultra-slim housing engineered for space-constrained devices, such as ultrathin laptops and flat-panel smart TVs.

Aligning the connector's mounting style with your factory's production capabilities ensures a seamless, high-yield assembly process.

By Value-Added Features

LINK-PP's RJ45 connectors incorporate additional functionalities to streamline device capability and save external components.

• PoE / PoE+ / PoE++: Magnetics designed to deliver Power over Ethernet simultaneously with data, supporting 15W, 30W, or up to 100W power delivery.

• RJ45 with USB Combo: Dual-function jacks integrating single or dual USB ports into the same housing to minimize board space.

• Shielded with EMI Tabs: Advanced metal shielding and grounding tabs that provide superior electromagnetic noise reduction in dense hardware environments.

• LED Options: Built-in bi-color LEDs (such as Green/Yellow or Orange/Green) that provide immediate visual indicators for link status and network activity.

Utilizing these enhanced features significantly simplifies external wiring and enhances the overall user experience during network diagnostics.

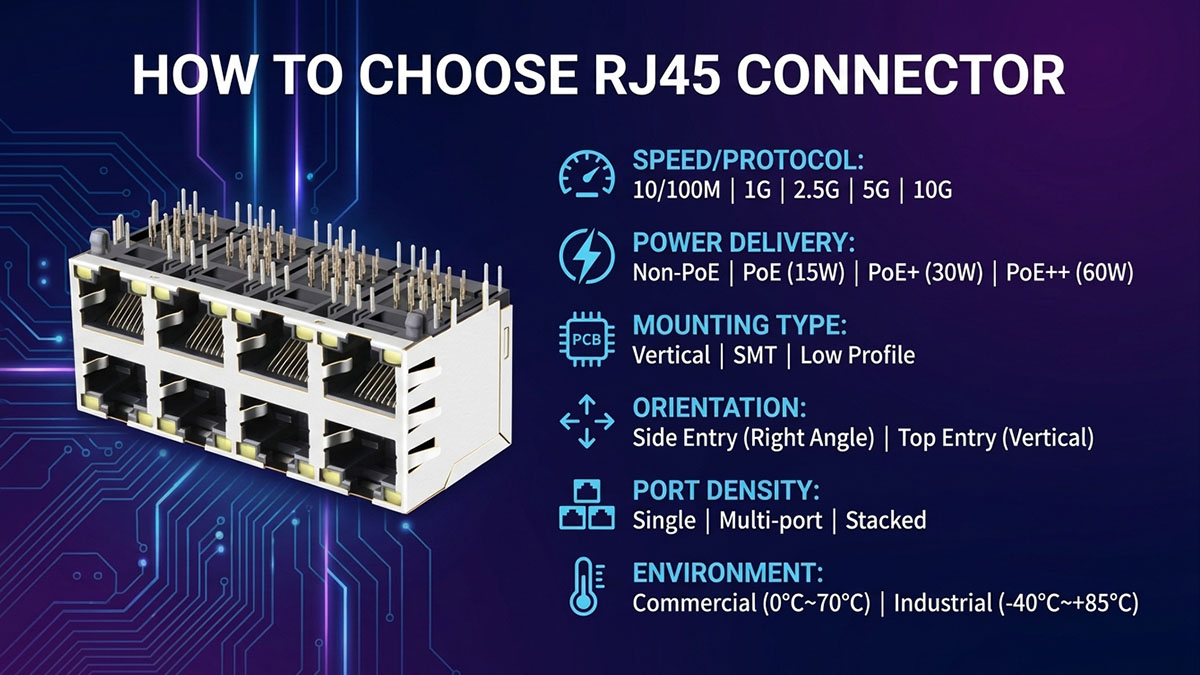

How to Choose the Right RJ45 Connector

Selecting the precise RJ45 connector from LINK-PP requires matching your device's Ethernet PHY parameters, power delivery requirements, and mechanical layout constraints. Following a structured, step-by-step selection process below:

• Step 1: Match Network Speed & Protocol: Verify that the connector's magnetic bandwidth (ranging from 10/100M up to 10G) aligns perfectly with your chosen Ethernet PHY chip capabilities.

• Step 2: Determine PoE Requirements: If your hardware supplies or receives power, specify whether you need standard data-only (Non-PoE) jacks, or PoE (15W), PoE+ (30W), or PoE++ (up to 100W) capable variants.

• Step 3: Define PCB Layout & Mounting: Select the appropriate pin type (THT, SMT, or Press-Fit) and decide on the orientation (Right Angle/Side Entry vs. Vertical/Top Entry) based on your hardware casing.

• Step 4: Check Port Density: For multi-device connections like routers or switches, opt for Stacked or Multi-port variants to maximize the available panel space.

• Step 5: Review Environmental Specifications: Choose commercial-grade connectors (0℃ to 70℃) for standard indoor electronics, or specify industrial-grade variants (-40℃ to +85℃) for harsh outdoor or factory environments.

• Step 6: Ensure Cross-Reference & Compatibility: Look for equivalent part numbers. Utilize cross-reference tools to find drop-in replacements for legacy parts from major brands like Pulse, TE Connectivity, Halo, or Molex to reduce costs without redesigning your board.

Applications of Integrated RJ45 Connectors

Our integrated RJ45 solutions are currently deployed by leading global manufacturers across a diverse range of demanding, high-volume commercial industries.

• Enterprise IT & Data Centers: High-speed integration for rack servers, core switches, enterprise-grade routers, and hardware firewalls.

• Telecommunications Infrastructure: Industrial-grade connectivity for 5G base stations, optical network terminals (ONT), and broadband access nodes.

• Industrial IoT & Automation: Ruggedized interfaces for PLCs, smart factory controllers, industrial PCs, and remote sensor gateways.

• Commercial Security Systems: PoE-enabled ports for network video recorders (NVRs), centralized access control panels, and high-definition IP camera arrays.

• Consumer & Smart Electronics: Low-profile connections for smart TVs, broadband set-top boxes, and smart home power distribution units.

Knowing that our connectors successfully support these rigorous commercial environments provides the procurement confidence you need to scale your manufacturing operations.

FAQ

Find below direct answers to the most common transactional questions from buyers:

Q: Can I use your RJ45 connectors as direct drop-in replacements for major legacy brands?

A: Yes, our products are engineered to be exact pin-to-pin compatible alternatives for brands like Pulse, TE Connectivity, and Halo, allowing you to lower costs seamlessly. Contact sales for a quick cross-reference sheet.

Q: Do you provide free engineering samples for PCB prototyping?

A: Absolutely. We actively support your R&D phase by providing free sample units, ensuring your engineering team can validate layout and performance before you commit to a volume order.

Q: How do you structure your MOQs and wholesale pricing?

A: We are committed to supporting both pilot runs and mass production. We offer flexible Minimum Order Quantities (MOQs) alongside highly competitive, tiered volume pricing for major enterprise projects.

Q: Is it possible to customize the components for my specific hardware?

A: Yes, we offer robust OEM/ODM services. If your project requires customized LED color combinations, specific pinouts, or modified magnetic schematics, our factory can deliver tailored solutions.

Q: What are your standard lead times for bulk production orders?

A: By maintaining strategic raw material inventory and optimized production lines, we offer consistently short lead times, ensuring your factory never faces costly production downtime.

Standards and Certifications

Our entire catalog of RJ45 connectors holds the necessary global certifications.

• IEEE Ethernet Compliance: Fully certified to meet IEEE 802.3 standards for data transmission and IEEE 802.3af/at/bt standards for safe Power over Ethernet (PoE) delivery.

• Global Environmental Directives: Manufactured under strict ISO 9001 quality management systems, with 100% compliance to RoHS and REACH environmental standards for global market access.

• Safety & EMC Regulations: Built as UL-recognized components and engineered to meet stringent CE and FCC electromagnetic compatibility requirements, significantly reducing your device's time-to-market.

Purchase Guidance and Support Services

LINK-PP provide streamlined B2B support, flexible financial tools, and rapid global logistics to execute your orders without delay.

• Technical Support: Validate your PCB design instantly. Ask an Expert for a free PHY compatibility review.

• B2B Purchasing: Secure your project budget in minutes. Request a Quote for tiered wholesale pricing.

• Global Payments: Expedite your checkout process by completing your purchase securely via Wire Transfer (T/T), PayPal, or major corporate credit cards.

• Fast Logistics: Prevent manufacturing downtime with our reliable global shipping network (UPS/FedEx/DHL).

• Instant Communication: Start a 24/7 Live Chat or Email our Sales Team to finalize your urgent  inquiries.

Browse RJ45 Connector Catalogue now to find your right one.
