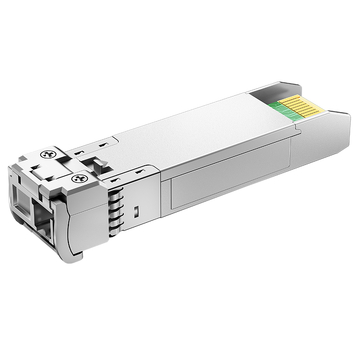

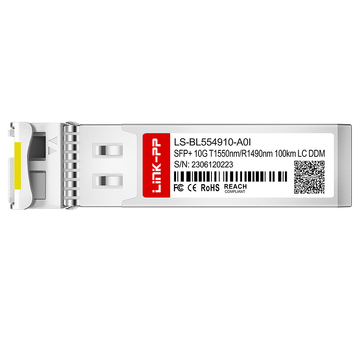

SFP-10G-BX100-D-I is an industrial-grade 10G SFP+ BiDi optical transceiver featuring a 1550nm-TX/1490nm-RX wavelength pair over a single-strand SMF via simplex LC/UPC interface, supporting up to 100km transmission with integrated DOM for real-time diagnostics and optimized bidirectional bandwidth efficiency.
Generic Part Number
SFP-10G-BX100-D-I
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1550nm-TX/1490nm-RX
Max Cable Distance
100km
Connector
Simplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-25dBm
DOM Support
Yes
Operating Temperature Range
-40 to 85°C
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
Key Features of Generic SFP-10G-BX100-D-I Compatible LINK-PP 10G SFP+
Generic SFP-10G-BX100-D-I Compatible LINK-PP module is an industrial-grade 10G SFP+ BiDi optical transceiver designed for long-distance single-fiber communication with stable operation, compact form factor, and built-in monitoring capability. It combines bidirectional transmission, extended reach, and simplified cabling to meet demanding industrial network requirements.
This module follows the 10G SFP+ standard and supports reliable data transmission over single-mode fiber. It is built with industrial-grade components to ensure durability and consistent performance in harsh environments.
SFP-10G-BX100-D-I: 10 Gbps Connectivity for Industrial Backbone Networks
It delivers 10Gbps data rates to support core industrial network connections. The module helps maintain stable and continuous data flow across backbone infrastructure.
SFP-10G-BX100-D-I Module with 1550nm-TX/1490nm-RX Wavelength
The BiDi design uses 1550nm for transmission and 1490nm for reception on a single fiber. This wavelength pairing allows efficient use of fiber resources while minimizing signal interference.
It supports transmission distances up to 100km over single-mode fiber. This enables reliable connectivity across long-distance links without the need for additional amplification.
SFP-10G-BX100-D-I Module with Simplex LC/UPC Interface
The module uses a simplex LC/UPC connector for single-fiber operation. This design reduces installation complexity and helps save fiber infrastructure costs.
SFP-10G-BX100-D-I Module with DOM for Real-Time Monitoring
It includes Digital Optical Monitoring (DOM) to track parameters such as temperature, voltage, and optical power. This feature allows users to monitor module status in real time and improve network maintenance efficiency.
Generic SFP-10G-BX100-D-I Compatible LINK-PP complies with industry standards and is manufactured under ISO 9001 with certifications including CE, RoHS, and FCC to ensure quality and safety.
Each module undergoes strict testing procedures to verify optical performance, stability, and durability before shipment.
SFP-10G-BX100-D-I Quality Certifications
The product meets recognized quality requirements to ensure consistent manufacturing and dependable operation.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-10G-BX100-D-I Certified for Reliable Host-Device Compatibility
It is tested for compatibility with various mainstream network devices to ensure stable and seamless integration.
Generic SFP-10G-BX100-D-I Compatible LINK-PP module is easy to deploy by inserting the module into a compatible SFP+ port and connecting a single-mode fiber via the LC/UPC interface. It is widely used in industrial networks, long-distance links, and backbone infrastructure requiring stable 10G transmission.
SFP-10G-BX100-D-I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-10G-BX100-D-I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, the built-in digital diagnostic monitoring function passes live module temperature and laser bias data straight to your SNMP dashboard. By
admin on
2026-04-28
A:
Absolutely, this transceiver is fully compatible with LTE systems and built to handle long-distance base station transport. It provides the stable 10Gbps throughput required to ensure consistent, low-latency backhaul connectivity across your entire LTE network infrastructure. By
admin on
2025-12-13
A:
Yes, pairing the Cooled EML laser with a high-sensitivity APD photodiode provides a robust optical link budget rated for up to 100km on high-quality single-mode fiber. By
admin on
2025-06-10
Extending our municipal fiber broadband network out to remote farming communities requires highly reliable long-reach transceivers. These simplex LC optics are currently handling a massive span across our footprint, cutting dark fiber operational leasing expenses right in half.
Please write comments with more than three
character.
494345
361974
A***x
Netherlands
Verified
Purchase
5 .0
2026-05-14
We deployed several modules in a backbone-style network extension, and the setup process was simple. The BiDi architecture is especially useful when fiber availability is limited, and the 100km reach gives plenty of margin for demanding transport links. The module behaved predictably under load, and the diagnostics were useful for monitoring link health. For long-distance SMF projects, it offers a good balance of efficiency and operational visibility.
Please write comments with more than three
character.
494345
361982
C***t
United States
Verified
Purchase
5 .0
2026-03-19
The 1550nm-TX and 1490nm-RX channel separation is incredibly clean even when driving full line-rate traffic over extreme physical lengths. We noticed a substantial drop in interface errors compared to our older generic optical gear.
Please write comments with more than three
character.
494345
361971
L***r
Mexico
Verified
Purchase
5 .0
2026-01-31
We had an old single-mode fiber link with a few degraded fusion splices that was throwing CRC errors on standard transceivers. Swapping to this high-budget 100km module gave us the exact optical power headroom we needed to patch the link.
Please write comments with more than three
character.
494345
361977
A***r
Germany
Verified
Purchase
5 .0
2025-11-05
We used this module in a long-distance campus connection, and the performance was consistent from day one. The simplex LC/UPC interface made installation straightforward, and the optical diagnostics gave our team confidence during acceptance testing. It worked smoothly in a 10G SFP+ environment and did not require extra troubleshooting. For projects that need strong reach, clean deployment, and easy maintenance, this is a solid option.
Please write comments with more than three
character.
494345
361981
H***s
Philippines
Verified
Purchase
5 .0
2025-10-31
Installed these wide-temperature optics inside a non-air-conditioned network enclosure right on a hot factory floor. They manage the heavy ambient thermal stress and high EMI spikes without a single link flap or packet drop.
Please write comments with more than three
character.
494345
361972
C***n
Japan
Verified
Purchase
5 .0
2025-09-10
This 10G BiDi SFP module worked well in an industrial cabinet exposed to higher ambient temperatures. The -40 to 85°C rating gave our operations team confidence, and the link stayed stable during extended soak testing.
Please write comments with more than three
character.
494345
361983
S***d
Nepal
Verified
Purchase
5 .0
2025-04-08
Managing long-distance campus loops is tough, but the digital optical monitoring on these units is rock solid. We can pull real-time RX/TX power levels directly from our centralized monitoring dashboard via standard SNMP queries.
Please write comments with more than three
character.
494345
361975
L***d
United Kingdom
Verified
Purchase
5 .0
2025-03-31
Deployed a dozen of these 10G SFP+ modules in unconditioned outdoor cabinets for metro aggregation. Temperatures fluctuate wildly here, but the wide operating temperature range handles it perfectly. DOM data helps us track signal degradation across the single-mode fiber without site visits.
Please write comments with more than three
character.
494345
361955
M***n
United States
Verified
Purchase
5 .0
2024-09-16
My experience with LINK-PP is the best. Everytime I need something this is the first place I search. It is so easy to do business with you and to find what I need without the hassle.
