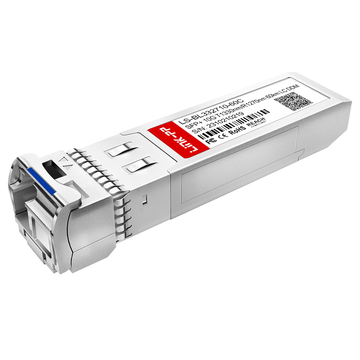

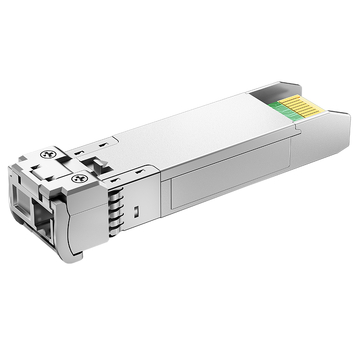

Arista SFP-10G32-BX60 Compatible LINK-PP module is a hot-pluggable 10G BiDi SFP+ module that optimizes fiber utilization by executing dual-channel transmission over a single strand of single-mode fiber via a simplex LC interface, delivering reliable 60km connectivity utilizing 1330nm-TX/1270nm-RX wavelengths alongside real-time DOM diagnostics.
Arista Part Number
SFP-10G32-BX60
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1330nm-TX/1270nm-RX
Max Cable Distance
60km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-20 to -6dBm
Receiver Sensitivity
-20dBm
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
IEEE 802.3ae, SFP+ MSA, SFF-8431, SFF-8472, CPRI
Key Features of Arista SFP-10G32-BX60 Compatible LINK-PP 10G SFP+
The Arista SFP-10G32-BX60 Compatible LINK-PP module is a BiDi SFP single-mode optical transceiver that combines high-speed 10Gbps data rates, long-distance reach, and single-fiber efficiency into a hot-pluggable form factor. Equipped with built-in digital diagnostics and dual-wavelength technology, this module provides an efficient and reliable hardware solution for modern fiber infrastructure.
This 10GBASE-BX transceiver module brings full 10G Ethernet capability to high-density switches and routers, offering seamless hardware interoperability. It provides network operators with an efficient, plug-and-play solution to scale bandwidth without expanding physical space.
SFP-10G32-BX60: 10 Gbps Connectivity for Single-Fiber Architecture
By utilizing bidirectional (BiDi) technology, this module transmits and receives data simultaneously over a single strand of optical fiber. The effective design allows operators to double their network capacity instantly without laying new fiber cables.
SFP-10G32-BX60 Module with 1330nm-TX and 1270nm-RX Wavelength
This BiDi SFP 10G optical transceiver uses a 1330nm laser to transmit data and a 1270nm receiver to collect incoming signals, preventing signal interference on the single fiber strand. To establish a complete working link, it must be paired with a matching module that operates on complementary wavelengths.
Engineered with a powerful transmitter and high-sensitivity receiver, this module reliably carries data across single-mode fiber links up to 60km. The extended reach makes it ideal for connecting distant data centers, enterprise campuses, and metro access networks.
SFP-10G32-BX60 Module with Simplex LC/UPC Interface
The module features a single, standardized simplex LC/UPC optical connector for quick and secure fiber patch cable termination. This interface ensures clean optical coupling and low insertion loss, which keeps the physical connectivity stable over long periods.
SFP-10G32-BX60 Module with DOM for Real-Time Monitoring
Integrated Digital Optical Monitoring (DOM) tracks vital parameters such as optical output power, receiver sensitivity, temperature, and supply voltage. Network administrators can access these real-time diagnostics to proactively troubleshoot links and prevent network downtime.
The Arista SFP-10G32-BX60 Compatible LINK-PP SFP+ BiDi transceiver module complies with strict international standards, achieving ISO 9001, CE, RoHS, and FCC certifications to ensure safety, quality, and environmental compliance.
Every BiDi SFP 10G 60km module undergoes rigorous hardware inspections and optical performance testing to guarantee consistent data transmission and long-term stability in the field.
SFP-10G32-BX60 Quality Certifications
These global industry credentials guarantee that the optical module meets strict manufacturing standards and regulatory safety requirements.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-10G32-BX60 Certified for Reliable Host-Device Compatibility
The transceiver is certified to work seamlessly across a wide range of standard network switches, routers, and firewalls without configuration issues.
All LINK-PP optical modules undergoe comprehensive hardware evaluation to ensure stable operation and absolute network reliability. Learn more about our detailed validation processes at the Link-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength and spectral width accuracy for stable data transmission.
Eye Pattern Test
Analyze signal integrity and transmitter optical quality with clear waveforms.
Bit Error Rate Test
Measure data transmission accuracy to guarantee flawless long-distance network traffic.
Temperature Test
Check module stability under extreme hot and cold operating conditions.
Product Shipping for Arista SFP-10G32-BX60 Compatible LINK-PP 10G SFP+
We ensure safe and efficient global transit for every order. Your optics transceivers arrive securely through trusted carrier services.
Anti-Static Protective Packaging
Shield vulnerable electronic components from static electricity damage during handling.
Shock-Resistant Transport Protection
Safeguard the optical modules against physical impacts during transit.
Fast Order Processing and Dispatch
Accelerate order fulfillment to ensure quick shipment from warehouses.
Global Logistics and International Delivery
Ship items quickly to customers worldwide using reliable express methods.
Arista SFP-10G32-BX60 Compatible LINK-PP plugs directly into standard SFP+ ports on switches or routers for instant deployment. It is widely used in Metro Ethernet networks, enterprise backhaul, and data center interconnects to maximize fiber capacity across long-distance, single-strand single-mode fiber links.
SFP-10G32-BX60 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-10G32-BX60 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
Find answers to common questions regarding complementary pairing, single-fiber patch cord selection, clean installation practices, and real-time DOM monitoring metrics.
Yes. It works with a paired BiDi module that transmits at 1270nm and receives at 1330nm.
Use a single-mode fiber (SMF) Simplex LC/UPC patch cord. Do not use duplex fiber.
Yes, always clean the Simplex LC/UPC connector with appropriate tools to avoid contamination that reduces optical performance.
Digital Optical Monitoring (DOM) provides real-time tracking of critical metrics like temperature, supply voltage, and laser power levels.
