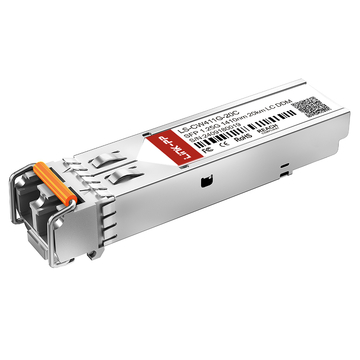

The SFP-1G-CW-1410-20 is a 1410nm CWDM SFP optical transceiver module that supports data rates up to 1.25Gbps using a DFB laser and PIN photo detector for single-mode fiber transmissions up to 20km. It features real-time digital optical monitoring (DOM) via an I²C interface and operates reliably across a commercial temperature range of 0 to +70°C.
Arista Part Number
SFP-1G-CW-1410-20
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
1410nm
Max Cable Distance
20km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-5 to 0dBm
RX Power
-26 to -1dBm
Receiver Sensitivity
-24dBm
Receiver Overload
-1dBm
EMC (Electromagnetic Compatibility)
Supported
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
SFP MSA、SFF-8472
Key Features of Arista SFP-1G-CW-1410-20 Compatible LINK-PP 1.25G SFP
Arista SFP-1G-CW-1410-20 Compatible LINK-PP integrates standard CWDM optical technology with digital diagnostic tracking to deliver stable Gigabit data transmission over single-mode fiber links. Built to full SFP MSA mechanical standards, the hot-pluggable module bridges 20km link spans reliably across standard 0 to +70°C commercial environments.
This optical transceiver is engineered with a hot-pluggable SFP footprint to allow seamless installation and field maintenance without interrupting active switch operations. Built in strict compliance with the SFP MSA standard, the hardware guarantees mechanical and electrical compatibility across diverse networking platforms.
SFP-1G-CW-1410-20: 1 Gbps Connectivity for Multiplexed Optical Networks
Designed to optimize multiplexed optical networks, the module delivers seamless throughput up to 1.25Gbps. It meets rigorous Gigabit Ethernet and Fibre Channel standards, serving as a high-reliability backbone link for enterprise switches, campus distributions, and metro ring architectures.
SFP-1G-CW-1410-20 Module with CWDM Technology for Fiber Efficiency
Coarse Wavelength Division Multiplexing (CWDM) allows multiple distinct optical signals to share a single existing fiber strand without interference. Utilizing this technology dramatically reduces passive infrastructure deployment costs while maximizing overall network bandwidth.
SFP-1G-CW-1410-20 Module with 1410nm Wavelength
A dedicated 1410nm center wavelength operates within the standardized ITU-T G.694.2 CWDM optical grid. This specific optical channel ensures smooth pass-through when connecting into passive multiplexer and demultiplexer systems.
Intermediate-reach capabilities are supported across single-mode fiber for point-to-point spans up to 20km. The matched optical transmitter and receiver maintain reliable link margins and clean signal integrity across metro distances.
SFP-1G-CW-1410-20 Module with Duplex LC Interface
The module is equipped with a standard duplex LC optical receptacle, providing reliable fiber connectivity in dense cabling environments. The compact design streamlines patch panel management and delivers precise, consistent optical alignment.
SFP-1G-CW-1410-20 Module with DOM for Real-Time Monitoring
Integrated Digital Optical Monitoring (DOM) delivers real-time diagnostic reporting for operating parameters such as optical power, module temperature, and supply voltage. Full compatibility with SFF-8472 digital diagnostics functions allows network administrators to proactively monitor link health via system software.
Arista SFP-1G-CW-1410-20 Compatible LINK-PP transceiver module is manufactured under rigorous quality control standards, holding full ISO 9001, CE, RoHS, and FCC certifications. These accreditations guarantee international regulatory compliance, environmental safety, and electromagnetic reliability across enterprise networking deployments.
Each CWDM SFP module is subjected to rigorous physical-layer screening to guarantee carrier-grade reliability. Quality testing includes detailed optical eye-pattern characterization and continuous bit error rate (BER) qualification, ensuring compliance with strict optical transmission standards.
SFP-1G-CW-1410-20 Quality Certifications
Strict compliance audits verify that each transceiver meets recognized global manufacturing metrics and industrial build benchmarks. Adhering to these engineering specifications ensures long-term operational durability and consistent hardware performance.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-1G-CW-1410-20 Certified for Reliable Host-Device Compatibility
Extensive interoperability trials confirm seamless plug-and-play operation across leading Ethernet switch, router, and media converter platforms. Standard EEPROM coding ensures immediate recognition and error-free telemetry reading by host operating systems.
Rigorous Testing Ensures Reliable SFP Performance
Every SFP-1G-CW-1410-20 CWDM SFP transceiver undergoes comprehensive factory validation to guarantee consistent signal integrity and hardware stability in active network environments. To explore our complete quality assurance protocols and test setups, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength accuracy and spectral width on every module.
Eye Pattern Test
Analyze transmitter signal quality to ensure clean optical eye masks.
Bit Error Rate Test
Confirm error-free data transmission under sustained maximum line rates.
Temperature Test
Assess operational stability across standard operating temperature ranges.
Product Shipping for Arista SFP-1G-CW-1410-20 Compatible LINK-PP 1.25G SFP
Arista SFP-1G-CW-1410-20 Compatible LINK-PP modules are carefully packed and distributed through reliable global supply networks to ensure prompt and secure delivery. Standardized handling practices and trusted freight partners guarantee that every shipment arrives in perfect operating condition.
Anti-Static Protective Packaging
Shield sensitive internal electronics from electrostatic discharge during transit.
Shock-Resistant Transport Protection
Protect internal optical components against drops, bumps, and vibrations.
Fast Order Processing and Dispatch
Streamline warehouse fulfillment to ensure rapid carrier pickup and dispatch.
Global Logistics and International Delivery
Partner with leading express carriers to ensure tracked border clearance.
Simply slide the SFP-1G-CW-1410-20 1410nm CWDM module into an active SFP slot and patch it to your CWDM multiplexing system via single-mode fiber. It enables instant, low-latency Gigabit transmission across multiplexed optical networks, maximizing existing fiber strands in campus backbones and point-to-point metro rings.
SFP-1G-CW-1410-20 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-1G-CW-1410-20 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes. As long as the chassis internal case temperature does not exceed its rated 70°C ceiling, the module will run reliably. The built-in SFF-8472 DOM allows your network monitoring software to track live operating temperatures and alert you well before thermal thresholds are reached. By
admin on
2026-04-17
A:
This module is strictly designed for single-mode fiber. While mode-conditioning patch cables can sometimes adapt 1310nm optics to multimode glass, they are not designed or specified for CWDM wavelengths like 1410nm. For reliable data transmission and full reach, you should only deploy this module over single-mode fiber. By
admin on
2026-01-23
A:
Yes. The LS-CW411G-20C works seamlessly with both 1G Fibre Channel (1.063Gbps) storage traffic and standard Gigabit Ethernet (1.25Gbps). You can use the same transceiver for either setup without needing different hardware. By
admin on
2025-12-30
A:
Yes. The LS-CW411G-20C complies fully with the Multi-Source Agreement standard. We can also custom-code the internal EEPROM before shipping to match your specific switch models, allowing plug-and-play operation, correct part recognition, and full DOM telemetry without port errors. By
admin on
2025-08-02
We used this 1410nm SFP module to connect two buildings across a 17km fiber line. It locked in at 1G right away. The light levels look very healthy on our network monitor system.
Please write comments with more than three
character.
491755
462253
M***r
Italy
Verified
Purchase
5 .0
2026-02-26
We used a pair of these 1.25G SFP modules to set up a dedicated storage replication channel between two branch sites. The 20km rating gave us plenty of optical margin across our 13km route and patch panels. Both switches recognized the transceiver instantly, showing normal operating temperatures and good light levels. It made expanding our bandwidth simple and kept our project well under budget.
Please write comments with more than three
character.
491755
462254
R***n
Brunei Darussalam
Verified
Purchase
5 .0
2025-11-27
We set up a dedicated backup link between two office server rooms over 16km of single-mode glass. The duplex LC patch cable clicked in nicely and throughput is rock solid.
Please write comments with more than three
character.
491755
462267
D***r
Italy
Verified
Purchase
5 .0
2025-08-05
Needed an extra optical channel on our existing fiber line. Slotted this 1G SFP module in with our CWDM filter box, and it carried our camera feeds without any lag or frame drops.
Please write comments with more than three
character.
491755
462260
D***z
Maldives
Verified
Purchase
5 .0
2025-07-14
The module reports optical power and temperature through the DOM, which helps our team check the link remotely. Everything looked normal after installation.
Please write comments with more than three
character.
491755
462256
D***n
Cambodia
Verified
Purchase
5 .0
2025-06-08
High-quality optical hardware that works straight out of the box. We tested the link across our fiber patch field with around 10dB of loss, and the receiver picked up the signal with plenty of safety margin to spare. Standard MSA design means it fits neatly into compact multi-port switch faces without blocking neighbor ports.
Please write comments with more than three
character.
491755
462268
R***n
Hong Kong
Verified
Purchase
5 .0
2025-05-19
Replaced an expensive branded module with this one on our aggregation switch. It followed standard protocols, so the switch had no trouble reading the serial and optical power.
Please write comments with more than three
character.
491755
462255
N***s
Belgium
Verified
Purchase
5 .0
2025-03-04
Deployed four of these CWDM 1G SFP modules across our business park ring. Clean light output, simple installation, and no complex configuration needed on the console.
