The LINK-PP LS-SM314G-02C is a high-performance 4G SFP transceiver designed specifically for Tri-Rate Fiber Channel applications. Operating over 9/125μm single-mode fiber, this 1310nm optical module achieves up to 2km transmission distances. Featuring a hot-pluggable duplex LC connector and commercial temperature range, it delivers stable connectivity with exceptionally low power dissipation under 600mW.
LINK-PP Part Number
LS-SM314G-02C
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
4.25Gbps
Wavelength
1310nm
Max Cable Distance
2km
Connector
Duplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
Operating Temperature Range
0 to 70°C
DOM
Supported
Protocols
MSA Compliant
Warranty
5 Years
Key Features of LINK-PP LS-SM314G-02C 4G SFP
Discover the exceptional capabilities of this 4G SFP optical transceiver. Built for modern storage area networks, it seamlessly supports backward compatible Tri-Rate data links. This hot-swappable fiber optic networking solution guarantees superior signal integrity, low energy consumption, and broad compatibility across standard network equipment.

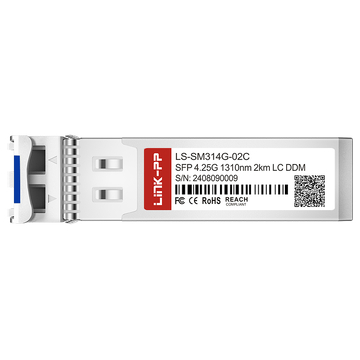

LINK-PP LS-SM314G-02C 4G SFP Optical Module
Engineered for excellence, this commercial-grade SFP optical module utilizes an advanced FP laser transmitter and PIN receiver. It provides robust backward compatibility for 1.0625Gb/s and 2.125Gb/s systems, ensuring seamless network fiber upgrades.
LS-SM314G-02C: 4G Connectivity for Enterprise Data Center
Empower your enterprise data center with reliable 4.25Gb/s Fiber Channel speeds. This storage networking transceiver optimizes high-capacity data transfers, reducing latency and maximizing bandwidth efficiency for demanding SAN server infrastructures.
LS-SM314G-02C Module with 1310nm Wavelength
Utilizing a highly stable 1310nm central wavelength, this single-mode transceiver minimizes optical dispersion. The precision-engineered 1310nm FP laser ensures consistent optical power output, delivering flawless signal transmission without degradation issues.
LS-SM314G-02C Module Supporting 2km Transmission
Designed for short to medium-reach applications, this optical device effortlessly handles up to 2km transmission distances over standard 9/125μm single-mode fiber. It perfectly bridges inter-campus switches and campus network backbone links.
LS-SM314G-02C Module with Duplex LC Interface
Equipped with an industry-standard duplex LC connector, this module ensures secure and low-insertion-loss physical connections. The hot-pluggable SFP footprint allows network technicians to perform quick optical installations without interrupting active switch operations.
LS-SM314G-02C Module with DOM for Real-Time Monitoring
Fully compliant with the SFF-8472 standard, the built-in Digital Optical Monitoring interface empowers administrators. It provides highly accurate, real-time telemetry data on operating temperature, voltage, laser bias current, and optical power.
LINK-PP LS-SM314G-02C 4G SFP Certification
Every LINK-PP transceiver undergoes strict quality control. Our comprehensive compliance guarantees environmental safety, electrical stability, and worldwide regulatory adherence for modern network fiber infrastructure deployments.
To ensure flawless operational continuity, each module completes an exhaustive multi-stage quality evaluation. This extensive verification process eliminates defects, ensuring robust long-term optical connectivity networking performance.
LS-SM314G-02C Quality Certifications
This premium product is fully backed by major international standards. It holds official CE, FCC, UKCA, UL, and REACH certifications, meeting global eco-friendly RoHS compliance mandates.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-SM314G-02C Certified for Reliable Host-Device Compatibility
Thorough MSA protocol alignment ensures seamless host-device interoperability. This plug-and-play transceiver integrates effortlessly with mainstream routers, switches, and storage servers from leading enterprise networking brand equipment.
Rigorous Testing Ensures Reliable SFP Performance
We implement uncompromising factory testing protocols to validate every unit. These targeted assessments guarantee peak performance and exceptional durability in active data environments.
Optical Spectrum Test
Accurately verifies the 1310nm wavelength stability and optimal optical power transmission characteristics.
Eye Pattern Test
Evaluates high-speed optical signal integrity to guarantee perfect receiver sensitivity and alignment.
Bit Error Rate Test
Confirms flawless 4.25Gb/s data links by thoroughly analyzing transmission accuracy across connected networks.
Temperature Test
Assures reliable commercial operation continuously from 0°C to +70°C without thermal degradation.
Product Shipping for LINK-PP LS-SM314G-02C 4G SFP
Our secure fulfillment process guarantees that your optical transceivers arrive in pristine condition, ready for immediate network system deployment and configuration.
Anti-Static Protective Packaging
Shielded in premium ESD-safe materials to prevent static electricity component damage.
Shock-Resistant Transport Protection
Encased within custom shock-absorbing foam to withstand physical shipping impacts safely.
Fast Order Processing and Dispatch
Streamlined warehouse operations ensure swift handling and rapid fulfillment of wholesale orders.
Global Logistics and International Delivery
Partnering with trusted couriers for prompt, secure worldwide destination transit.
LINK-PP LS-SM314G-02C 4G SFP Usage Demonstration
Deploying this hot-pluggable module is simple. Just insert the transceiver into any MSA-compliant switch port and connect your duplex LC cables. The plug-and-play design instantly upgrades your Fiber Channel storage network with minimal system downtime.
LS-SM314G-02C Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-SM314G-02C modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
LINK-PP transceivers are fully compliant with RoHS, CE, FCC, and REACH directives. They meet Class 1 laser safety standards (IEC 60825-1) and SFP Multi-Source Agreement (MSA) mechanical and electrical specifications, meeting corporate IT auditing and commercial procurement compliance requirements. By
admin on
2026-02-04
A:
The LS-SM314G-02C is designed for standard commercial operating environments (0°C to 70°C). For outdoor cabinets, base stations, or extreme industrial environments, we supply the hardened industrial-grade variant (LS-SM314G-02I), which operates reliably across wide temperatures from -40°C to 85°C. By
admin on
2025-12-01
A:
Yes. The LS-SM314G-02C is fully MSA-compliant and can be custom-coded with OEM EEPROM profiles for brands like Cisco, Brocade, Dell, HPE, and Finisar. It supports full auto-negotiation across 4.25G, 2.125G, and 1.0625G Tri-Rate Fibre Channel links, enabling plug-and-play operation with no unrecognized module alerts. By
admin on
2025-11-13
A:
The LS-SM314G-02C is engineered specifically for standard 9/125μm Single-Mode Fiber (SMF/OS2) using Duplex LC connectors to achieve its rated 2km distance. While it can physically mate with OM3/OM4 cables over very short spans via mode conditioning patch cables, using standard OS1/OS2 single-mode optical fiber is strongly recommended to prevent modal dispersion and signal loss. By
admin on
2025-10-26
