LS-SM3101-20I redefines resilient networking as an industrial-grade 155M SFP single-mode transceiver, harnessing a 1310nm FP laser and PIN photodetector to sustain flawless 20km transmissions across a punishing -40°C to +85°C thermal envelope.
LINK-PP Part Number
LS-SM3101-20I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
155Mbps
Wavelength
1310nm
Max Cable Distance
20km
Connector
Duplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
-14 to -8dBm
RX Power
-32 to -6dBm
Receiver Sensitivity
-32dBm
DOM Support
Yes
Operating Temperature Range
-40 to 85°C
Protocols
IEEE802.3ab, GR-468, MSA Compliant
Key Features of LINK-PP LS-SM3101-20I 155M SFP
LINK-PP LS-SM3101-20I is an industrial-grade single-mode optical transceiver designed for rugged environments operating between -40°C and +85°C. It integrates a 1310nm wavelength and duplex LC interface to ensure steady 155 Mbps data transmission up to 20km. This module balances reliable long-range connectivity with real-time digital monitoring capabilities.
LINK-PP LS-SM3101-20I 155M SFP Optical Module
This transceiver fully complies with the global SFP Multi-Source Agreement (MSA) for seamless hardware hot-swapping. It incorporates SFF-8472 digital diagnostics functions, allowing network operators to access vital internal telemetry. The standardized design guarantees broad, multi-vendor device compatibility.
LS-SM3101-20I: 155 Mbps Connectivity for Industrial Grid Systems
This module delivers a steady 155Mbps data rate tailored for Fast Ethernet and SDH/SONET applications. It provides the exact bandwidth required for automated utilities and industrial control networks. The fixed bit rate ensures low latency and predictable packet delivery across critical grid systems.
LS-SM3101-20I Module with 1310nm Wavelength
Operating at a centered 1310nm wavelength, this optical module utilizes a specialized FP laser to push light through single-mode fiber. The 1310nm window minimizes optical attenuation and dispersion, keeping the signal sharp over long distances. A matching PIN photodetector at the receiving end ensures clear signal capture.
LS-SM3101-20I Module Supporting 20km Transmission
Engineered for extended-reach infrastructure, this transceiver comfortably sustains data links across 20km of single-mode fiber cabling. Its robust optical power budget prevents signal loss over long outdoor runs between remote stations. This makes it an ideal choice for connecting widely separated industrial nodes.
LS-SM3101-20I Module with Duplex LC Interface
The module features a standardized duplex LC connector socket for secure fiber-optic patch cord latching. This dual-fiber interface separates the transmit and receive paths to allow full-duplex, simultaneous bidirectional communication. Its compact LC layout saves valuable port density on switches and media converters.
LS-SM3101-20I Module with DOM for Real-Time Monitoring
Equipped with built-in Digital Optical Monitoring (DOM), this module provides real-time tracking of internal operational parameters. Network administrators can instantly read transceiving power levels, laser bias current, module temperature, and supply voltage. This telemetry helps technicians detect potential link issues before a total network failure occurs.
LINK-PP LS-SM3101-20I 155M SFP Certification
LINK-PP LS-SM3101-20I 155M SFP module is fully validated against global manufacturing and environmental benchmarks, officially carrying ISO 9001, CE, RoHS, and FCC marks.
Each module passes through rigorous factory verification and optical validation to guarantee stable field performance under demanding conditions.
LS-SM3101-20I Quality Certifications
These compliance marks verify that the hardware satisfies global regulations for safety, eco-friendly materials, and low radiation.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.

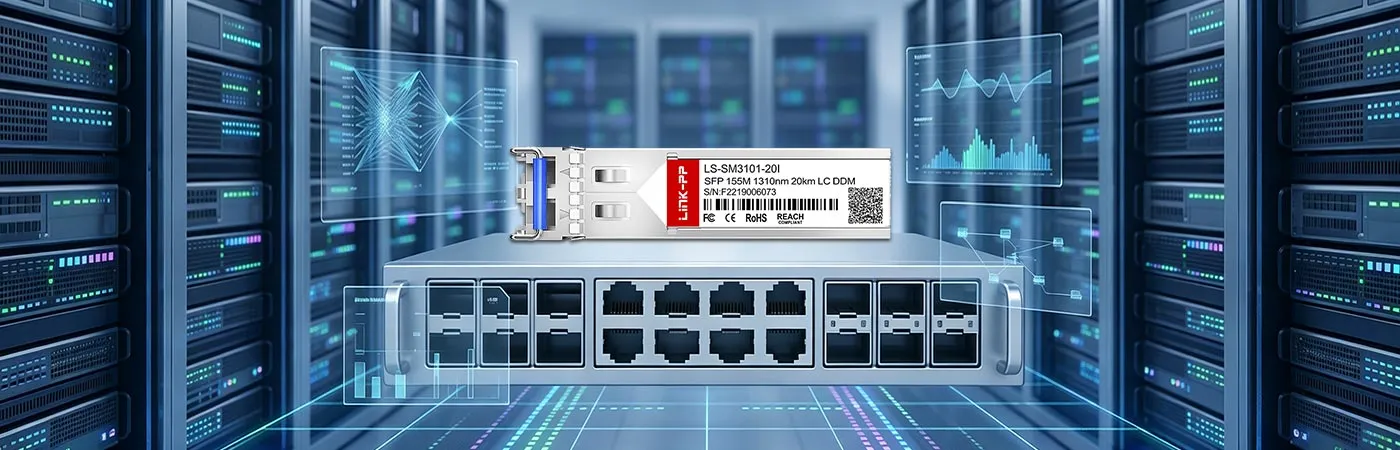

LS-SM3101-20I Certified for Reliable Host-Device Compatibility
Industry-standard approval ensures the transceiver plugs into diverse brand switches and routers with zero communication barriers.
Rigorous Testing Ensures Reliable SFP Performance
Comprehensive laboratory validations verify every critical metric to guarantee flawless deployment across your network infrastructure. Discover our exact validation protocols at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure central wavelength and spectral width to prevent signal dispersion.
Eye Pattern Test
Analyze optical signal waveforms to ensure crisp, distortion-free data transmission.
Bit Error Rate Test
Quantify data integrity over extended distances to achieve zero-loss links.
Temperature Test
Expose hardware to thermal extremes to verify reliable operation.
Product Shipping for LINK-PP LS-SM3101-20I 155M SFP
Safe transit protocols guarantee secure global delivery. Reliable carrier partnerships ensure your networking hardware arrives quickly.
Anti-Static Protective Packaging
Shield delicate optical components from destructive electrostatic discharge.
Shock-Resistant Transport Protection
Absorb road vibrations to prevent physical structural damage.
Fast Order Processing and Dispatch
Accelerate warehouse fulfillment to minimize project deployment delays.
Global Logistics and International Delivery
Ship transceiver modules seamlessly across worldwide logistics networks.

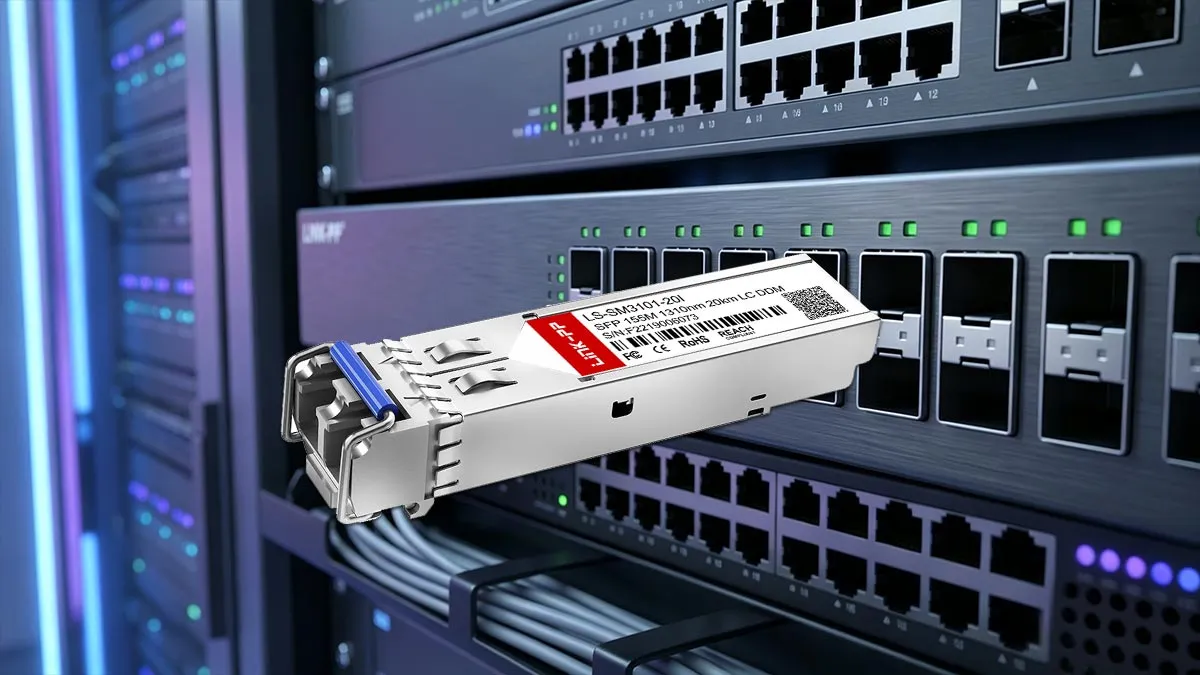

Deploying the LS-SM3101-20I 155M SFP optical module requires minimal configuration — simply slide it into place to establish immediate 20km links. The ruggedized design is optimized for continuous operation within industrial internet of things (IIoT) frameworks, energy distribution grids, and remote telecom node infrastructures.
LS-SM3101-20I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-SM3101-20I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, this is a true industrial-grade module rated to function continuously at ambient temperatures up to +85°C. It is specifically built to handle severe thermal conditions inside sealed enclosures. By
admin on
2025-11-25
A:
The official specification threshold is 20km based on typical fiber attenuation budgets. While a perfectly clean line might link up, we cannot guarantee reliable data transmission beyond 20km. By
admin on
2025-09-14
A:
It utilizes a standard duplex LC interface, requiring two separate fiber strands for simultaneous transmission and reception. One strand handles the upstream signal while the other handles the downstream. By
admin on
2025-07-31
A:
No, the SFF-8472 digital diagnostics functions are automatically active through the hardware interface. Your switch operating system should read the optical parameters natively. By
admin on
2025-04-10
Running these on our substation backbone routers. The 1310nm FP laser holds up perfectly against heavy electrical interference, maintaining zero frame loss over months of continuous operation.
Please write comments with more than three
character.
478969
271301
C***n
Switzerland
Verified
Purchase
5 .0
2026-01-02
Our old commercial-grade SFP modules kept dropping links in the summer heat, but these industrial-grade optical transceivers have kept us at 100% uptime.
Please write comments with more than three
character.
478969
271320
B***s
Belgium
Verified
Purchase
4 .0
2025-11-14
These 155M SFP optical transceivers perform flawlessly in our industrial loop networks, though the standard customs clearance delayed our project timeline by three days. Order well in advance for large rollouts.
Please write comments with more than three
character.
478969
271312
B***r
Bangladesh
Verified
Purchase
5 .0
2025-11-08
Picked up a dozen of these LS-SM3101-20I modules for a wind farm telemetry network. Over 15km of single-mode fiber and the optical budget still has plenty of headroom.
Please write comments with more than three
character.
478969
271308
A***t
Norway
Verified
Purchase
5 .0
2025-10-08
We procured a large batch of these 155M SFP transceivers to maintain legacy SONET/SDH edge links for a regional telecom network. The dual LC connectors snap firmly into place, and the internal FP laser exhibits incredibly tight spectral tolerance at 1310nm. Across our 20km single-mode fiber footprint, optical loss remained safely within the module's engineered limits. Having true SFF-8472 diagnostic functions at this price point allows us to maintain strict carrier-grade SLAs without overspending on OEM-branded components.
Please write comments with more than three
character.
478969
271316
F***t
United States
Verified
Purchase
5 .0
2025-09-22
Tested these inside uncooled roadside enclosures during summer peaks hitting 45°C ambient. The industrial-grade design handles the internal enclosure thermal build-up without breaking a sweat.
Please write comments with more than three
character.
478969
271304
D***l
Netherlands
Verified
Purchase
5 .0
2025-09-10
Our team recently executed a comprehensive network overhaul, replacing aging transceivers with the LINK-PP LS-SM3101-20I within our outdoor smart grid cabinets. Running over diverse single-mode fiber paths averaging 18km, these 1310nm duplex LC modules proved highly resilient against localized electromagnetic fields. Real-time DOM telemetry integrated seamlessly into our SNMP polling engine, providing clean readouts of laser bias and receiving power. The industrial-grade thermal ratings ensure these modules will outlast the host hardware in our demanding climate zones.
Please write comments with more than three
character.
478969
271319
H***g
Germany
Verified
Purchase
5 .0
2025-08-01
We deployed 80 units of the LS-SM3101-20I across several remote water treatment facilities requiring deterministic 155Mbps connections. Utilizing single-mode fiber (SMF) over a 12km topology, the 1310nm FP laser combined with the PIN receiver yielded a remarkably stable power budget margin of over 6dB. The standout feature is the full SFF-8472 digital diagnostics implementation, allowing our centralized monitoring system to flag voltage or thermal fluctuations well before a link failure occurs. Exceptional hardware value for municipal infrastructure upgrades.
Please write comments with more than three
character.
478969
271315
E***t
Guatemala
Verified
Purchase
4 .0
2025-07-03
Had to wait an extra week for custom multi-vendor EEPROM coding on a batch of 200 units, but the pricing and performance make up for it. Zero failures across our rural CCTV fiber rings.
Please write comments with more than three
character.
478969
271318
H***e
France
Verified
Purchase
5 .0
2025-05-18
Latches securely into place with zero wiggle. Optical attenuation across the duplex LC interface is minimal, keeping our 20km single-mode fiber links running at baseline speeds.
Please write comments with more than three
character.
478969
271314
D***s
Dominican Republic
Verified
Purchase
5 .0
2025-04-21
Real-time DOM telemetry is incredibly precise on these. Being able to track transceiver temp and bias current remotely saves our field techs a ton of windshield time.
