amphenol ue864g262020361 compatible link-pp lp22cc01203s sfp28 2x2 cage&connector with inner light pipe emi spring finger press-fit
คลิกเพื่อเปิดมุมมองที่ขยาย

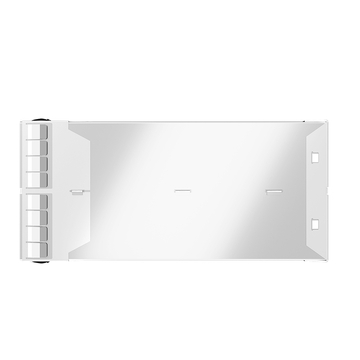

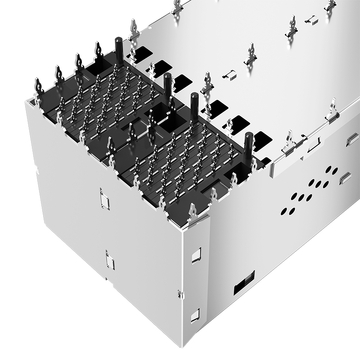

Amphenol UE864G262020361 เข้ากันได้ LINK-PP LP22CC01203S SFP28 2x2 Cage&Connector พร้อมท่อส่งแสงภายใน EMI สปริงนิ้วแบบกดพอดี

สรุปสินค้า

สินค้า
Amphenol UE864G262020361 เข้ากันได้ LINK-PP LP22CC01203S SFP28 2x2 Cage&Connector พร้อมท่อส่งแสงภายใน EMI สปริงนิ้วแบบกดพอดี
SKU
203769
P / N
LP22CC01203S
ราคา
THB 429
หุ้น
110 ในสต็อก
ขาย
2.8K
URL ผลิตภัณฑ์
https://www.l-p.com/products/493221.htm
ราคาต่อหน่วย THB 429
ผู้ใช้ใหม่: THB 335 คูปองส่วนลดสำหรับการสั่งซื้อครั้งแรกของคุณ
รหัส linkpp2610
สำหรับการสั่งซื้อเกิน THB 33,530 เข้ามา THB 503 Off
รหัส Linkpp15
สำหรับการสั่งซื้อเกิน THB 100,590 เข้ามา THB 1,677 Off
รหัส Linkpp50
สำหรับการสั่งซื้อเกิน THB 167,650 เข้ามา THB 3,353 Off
รหัส Linkpp100
P / N: LP22CC01203SSKU: 203769

ใช้ได้กับ Amphenol UE864G262020361แผ่นข้อมูลรายงานผลการทดสอบดาวน์โหลดทั้งหมด

ร่วมกันได้:
LINK-PP
Amphenol
Molex
P/N ที่เข้ากันได้:
UE864G262020361
UE864T262020361
การกำหนดราคาตามปริมาณ ระดับการสั่งซื้อออนไลน์ · สั่งซื้อจำนวนมากหรือขอราคาพิเศษได้ตามต้องการ
THB 429
1–9 ชิ้น
THB 408
10–99 ชิ้น
THB 386
100–999 ชิ้น
THB 365
1,000–2,499 ชิ้น
THB 343
≥2,500 ชิ้น

หากต้องการปริมาณมากกว่านี้ หรือต้องการต่อรองราคา โปรดติดต่อเรา

สต็อก:
110 ในสต็อก
การส่งสินค้า:
THB 575
ไปยัง ประเทศไทย ผ่านทาง เฟดเอ็กซ์ ไอพี
เวลาจัดส่งโดยประมาณ : 3 - 6 วัน
5- รับประกันปี 15-Day Returns การแลกเปลี่ยนภายใน 15 วัน
การประกัน
  • รับประกันสินค้า 5 ปี ซึ่งถือเป็นระยะเวลารับประกันที่ยาวนานที่สุดในอุตสาหกรรม
  • อ่านตารางสำหรับ รายละเอียด ของการรับประกันสินค้าทั้งหมด
การคืนสินค้าและการแลกเปลี่ยน
  • จะได้รับเงินคืนประมาณ 5 วันทำการหลังจากได้รับสินค้าที่ส่งคืนแล้ว
  • สินค้าที่มีอยู่ในสต็อกสำหรับเปลี่ยนทดแทน สามารถจัดส่งได้ภายใน 1 วันทำการ
  • โปรดอ่านนโยบายการคืนสินค้าฉบับเต็ม รายละเอียด.
จัดส่งฟรีเมื่อซื้อครบ THB 3,319.
หรือเลือกใช้บริการจัดส่งผ่านบัญชี UPS / FedEx / DHL ของคุณเองในขั้นตอนการชำระเงิน (THB 0 การส่งสินค้า).
ปริมาณ:
ราคารวม:
THB 429

Amphenol UE864G262020361 เข้ากันได้ LINK-PP LP22CC01203S SFP28 2x2 Cage&Connector พร้อมสปริงกัน EMI และท่อส่งแสงภายใน

LINK-PP ส่วนจำนวน LP22CC01203S หมายเลขชิ้นส่วน Amphenol
UE864G262020361
สไตล์ตัวเชื่อมต่อ เต้ารับแบบมีกรง Ganged (2x2) ประเภทการเชื่อมต่อ SFP28
ประเภทการติดตั้ง ทะลุผ่านรูมุมขวา การสิ้นสุด กดพอดี
การกำหนดค่าพอร์ตเมทริกซ์ พอร์ต 2x2 คุณสมบัติ ป้องกัน EMI
รวมหลอดไฟ ท่อไฟด้านใน ประเภทคุณลักษณะการป้องกัน EMI สปริงอีเอ็มไอ
ความสูง (นิ้ว/มม.) 1.00/25.40 ความยาว (นิ้ว/มม.) 2.490/63.25
ความกว้าง (นิ้ว/มม.) 1.152/29.25 ช่วงอุณหภูมิ -40 - 85 °ซ

LINK-PP

จับคู่ผลิตภัณฑ์

ภาพ ID # รายละเอียด ราคา หุ้น เพิ่มไปที่รถเข็น

ดาวน์โหลด

การเขียนแบบผลิตภัณฑ์ LP22CC01203S.pdf

คำถามและคำตอบ

ยังไม่มีคำถามใดๆ

เป็นคนแรกที่สอบถามเกี่ยวกับข้อมูลจำเพาะ ความเข้ากันได้ หรือระยะเวลาในการจัดส่ง

ส่งคำถาม
  • A:
    Same mechanical outline, different connector and ground design. The SFP28 version has tighter impedance control, more ground pins and a shorter tail length so it holds up at 25.78G. The SFP+ version is fine for 10G and cheaper. If you might ever run 25G, buy the SFP28 part now, the price difference is small compared with a board respin. by LINK-PP Technical Support
  • A:
    None from the cage. 25G SR over OM4 is good to 100m by spec, and the cage does not change the optical budget. The practical limits are connector cleanliness and module temperature. Keep the cage opening covered until the module goes in, and if your cabinet runs above 45℃ inlet, use the heat sink variant of the same family. We have customers running 100m OM4 at 25G with this cage and DDM showing 1.2dB link margin. by LINK-PP Technical Support
  • A:
    Yes. This assembly needs roughly 1.6kN versus 0.8kN for a 1x1. Use a flat hardened tool that covers all four ports and press at 0.4 to 0.6mm per second with force monitoring. Do not press one port at a time, that tilts the shared shell. Support the board directly under the cage, and check coplanarity on the four corner ports after the first article. by LINK-PP Technical Support
  • A:
    The cage is passive, FEC is handled by the PHY or the switch ASIC. At 25G most designs run RS-FEC 528/544 on the host side and the module handles line side. What you will see with a good cage is pre FEC BER around 1E-8 and zero post FEC errors. If you see corrected codeword spikes that grow over time, check module temperature first, then the ground bond between cage and chassis. by LINK-PP Technical Support
  • A:
    Yes, that is a common approach. The footprint and connector are the same for 10G and 25G, so you can build the board now with 10G modules and swap to 25G later. Two caveats. First, your PCB launch and trace need to be good for 25G from day one, otherwise the upgrade will not work. Second, thermal, a 25G module runs hotter, so plan the airflow now rather than after the upgrade. by LINK-PP Technical Support
  • A:
    The cage contributes shielding and ground continuity, not signal path. The connector and the PCB launch dominate. What matters from the cage is that the ground pins are well connected and the shell does not create a stub. On this part the connector has short tails and a solid ground bar, and customers see around 480mV eye height at 25.78G on a good board. If your eye is closed, look at the via stub and the AC coupling cap placement before blaming the cage. by LINK-PP Technical Support

ความคิดเห็นของลูกค้า

  • 5

    17 รีวิว

  • 5 ดาว
    100%
    4 ดาว
    0%
    3 ดาว
    0%
    2 ดาว
    0%
    1 ดาว
    0%
  • รีวิวทั้งหมด (17)
ไม่มีข้อมูล
M *** d
ฟิลิปปินส์
ตรวจสอบการสั่งซื้อ
5.0
2026-09-10
One small thing, the inner light pipe is bright, brighter than our old guide. We had to add a 0.5mm diffuser film behind the panel because the green was too intense at night. =D
N *** d
โรมาเนีย
ตรวจสอบการสั่งซื้อ
5.0
2026-07-19
Second source qualification took one day. Footprint matched, press tool unchanged, and the four ports passed our 25G BER test on the first try. That is rare for a cage swap.
N *** k
กรีก
ตรวจสอบการสั่งซื้อ
5.0
2026-01-24
We compared the SFP+ version and the SFP28 version of this footprint. Same outline, but the SFP28 part has better ground pins and a tighter connector. Worth the small price difference at 25G.
ผม
สาธารณรัฐเช็ก
ตรวจสอบการสั่งซื้อ
5.0
2025-11-29
Good mechanical design, the module sits 1mm deeper than our old cage which fixed a problem we had with the bezel pressing on the AOC boot. On the old part the boot was crushed after a few months and the link went intermittent when the cabinet door was closed. This one clears by 2mm and we have not seen a single boot failure since the change.
H *** ยู
ไก่งวง
ตรวจสอบการสั่งซื้อ
5.0
2025-09-05
Our contract manufacturer flagged the press force as higher than a 1x1 cage, which makes sense with four ports. 1.6kN on this assembly, and they now use a force profile instead of a fixed depth.
