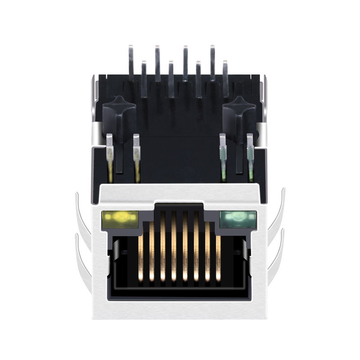

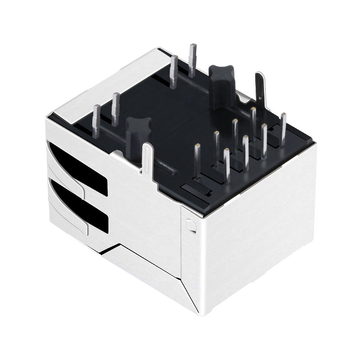

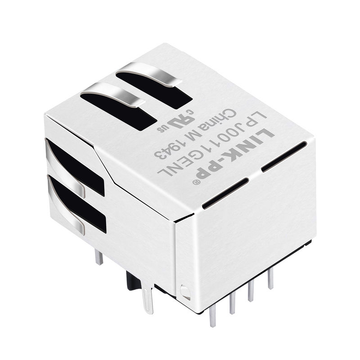

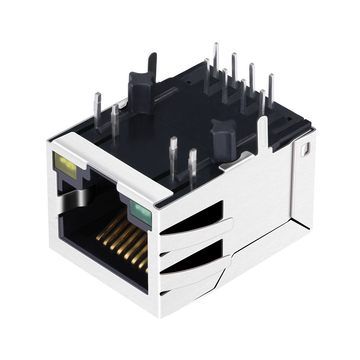

LPJ0011GENL 10/100 Base-T Shielded Tab Down RJ45 Magnetic Jack

Name: LPJ0011GENL 10/100 Base-T Shielded Tab Down RJ45 Magnetic Jack
Brand: LINK-PP
SKU: 103898
Price: 0.979 USD
Availability: InStock
Rating: 5 (56 reviews)

# 103898

Product: LPJ0011GENL 10/100 Base-T Shielded Tab Down RJ45 Magnetic Jack
SKU: 103898
P/N: LPJ0011GENL
Price: $ 2.081
Stock: 2168 in Stock
Sold: 13.1K
Product URL: https://www.l-p.com/products/438603.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

: LPJ0011GENL 10/100 Base-T Shielded Tab Down RJ45 Magnetic Jack

56 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

56 Reviews

0 Questions

Request Stock

13.1K Sold

$ 2.081

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 2.081

100

$ 1.707

600

$ 1.499

1200

$ 1.145

6000

$ 0.979

P/N: LPJ0011GENL

Compatible:: LINK-PP; Belfuse; Halo; Hanrun; Other; Pulse; Tyco; WE; X multiple

Compatible P/N:: LPJ0011GENL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.007kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 32*30*31cm
G.W./carton: 8.5kg

Add to wish

Description

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Green/Yellow LED, Tab Down, RoHS

LINK-PP Part Number:	LPJ0011GENL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
PCB	FR4	LED Option	Green/Yellow Leds
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	Post	T POST
Package Height (Inches/mm)	0.528/13.30	Package Length (Inches/mm)	0.838/21.25
Package Width (Inches/mm)	0.626/15.95	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Electrical Specfications @25℃

1. Turn Ratio(±2%)

TX=1CT:1CT RX=1CT:1CT

2. Inductance OCT: 350uH MIN

@ 100KHz/0.1V 8mA DC Bias

3. Insertion Loss:

1-100KHz: -1.0dB MAX

4. Return Loss(dB MIN):

1-30MHz: -18 30-60MHz: -15

60-80MHz: -12 80-100MHz: -10

5. Cross talk(dB MIN):

30MHz: -40 60MHz:-35

100MHz: -30

6. Common Mode Rejection (dB MIN):

30MHz: -40 60MHz:-35

100MHz: -30

7. Hipot Test: 1500Vrms

8. Operating Temperature Range: 0℃ TO 70℃
