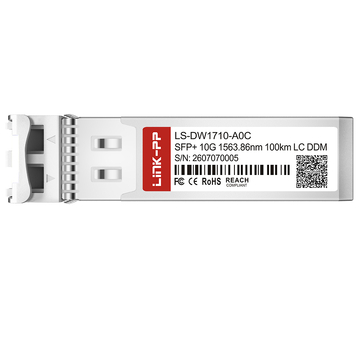

LS-DW1710-A0C combines a cooled EML laser transmitter and APD photodiode receiver to support optical communication over single-mode fiber distances up to 100km. This 10GBASE-DWDM SFP+ module operates at 1563.86nm on C17 of the 100GHz ITU C-band grid and includes real-time digital diagnostic monitoring.
| LINK-PP Part Number | LS-DW1710-A0C | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1563.86nm | Max Cable Distance | 100km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML | Receiver Type | APD |
| TX Power | -1 to +5dBm | RX Power | -23 to -6dBm |
| Receiver Sensitivity | -23dBm | DDM/DOM | Supported |
| Operating Temperature Range | 0 to 70°C | Protocols | SFP+ MSA Compliant |
LINK-PP LS-DW1710-A0C combines 10G data rates with 100GHz DWDM technology to support long-distance optical connections and better use of available fiber resources. The module features a hot-pluggable SFP+ design, C17 wavelength operation, 100km SMF reach, Duplex LC connectivity, and digital diagnostics for network installation and maintenance.
Designed with a hot-pluggable SFP+ form factor, this optical module can be inserted into or removed from a compatible host port without shutting down the device. Its SFP+ MSA-compliant design follows standard interface requirements for installation in supported switches and optical networking equipment.
Supporting data rates up to 10.7Gbps, this optical transceiver enables 10G communication between remote telecom sites and central network facilities. It provides the bandwidth needed to carry network traffic across geographically separated locations.
Instead of requiring a separate fiber pair for every optical channel, DWDM technology allows several wavelength channels to share the same fiber pair. This approach helps telecom operators add transmission channels to existing fiber routes when used with suitable multiplexing equipment.
Operating at 1563.86nm, the optical transceiver uses the C17 channel defined by the ITU-T 100GHz DWDM grid. Proper channel selection on the DWDM Mux/Demux allows the optical signal to pass through its assigned wavelength path.
The cooled EML transmitter produces optical signals, while the APD receiver detects weaker incoming signals over single-mode fiber links up to 100km. Actual transmission reach depends on fiber attenuation, connector losses, and the total optical power budget.
A duplex LC connector separates outgoing and incoming optical signals into dedicated TX and RX fiber paths. This two-fiber connection uses standard LC single-mode patch cables for straightforward cabling between optical network devices.
Through Digital Diagnostic Monitoring (DDM), technicians can read operating values such as optical power, module temperature, supply voltage, and laser bias current. Changes in these readings can help identify signal loss, abnormal module conditions, or other issues during routine link checks.
LINK-PP LS-DW1710-A0C SFP+ DWDM transceiver follows established quality management and compliance requirements, including ISO 9001, CE, RoHS, and FCC, to support consistent manufacturing quality, product safety, and reliable optical communication.
Each DWDM module completes signal integrity and bit error rate tests to check data transmission reliability over long-distance fiber links.
This 10G DWDM optical transceiver meets applicable certification requirements for product quality, electrical safety, and environmental protection.
Compatibility checks with supported switches and optical transport equipment help confirm proper module recognition and stable 10G link operation.
To support dependable 100km optical links, we check the LS-DW1710-A0C SFP+ transceiver for accurate wavelength output, clear 10G signals, and consistent operation under specified conditions. Find more information about our testing process at the LINK-PP Test Support Center.
Check C17 wavelength precision and spectral stability at 1563.86nm.
Analyze eye diagram clarity to detect potential signal distortion issues.
Measure data errors to assess transmission accuracy across extended links.
Evaluate module functionality across the specified 0°C to +70°C range.
LINK-PP follows careful packaging and shipping procedures to keep the LS-DW1710-A0C DWDM 10G SFP+ transceiver protected from dispatch to delivery. Our streamlined order handling and international logistics services support safe transportation and efficient delivery to customers worldwide.
Prevent electrostatic damage with suitable protective packaging during transit.
Reinforce shipping packages to reduce damage from shocks and vibrations.
Review order details and arrange prompt packing for timely dispatch.
Organize international shipments through established carriers for dependable delivery.
Align the LS-DW1710-A0C 10G DWDM transceiver with the host device's SFP+ slot and slide it in until the latch engages. Remove the port covers, connect clean Duplex LC single-mode fiber connectors, and verify TX/RX alignment and C17 channel matching before checking the connection.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal LS-DW1710-A0C module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
![]() LS-CW6110-20I
| ![]() LS-DW6110-A0C
| ![]() LS-DW6010-A0C
| ![]() LS-DW5910-A0C
| ![]() LS-DW5810-A0C
|
|---|
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps |
Wavelength | 1563.86nm | 1610nm | 1528.77nm | 1529.55nm | 1530.33nm | 1531.12nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 100km | 20km | 100km | 100km | 100km | 100km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm |
Receiver Sensitivity | -23dBm | -23 to -6dBm | -23dBm | -23dBm | -23dBm | -23dBm |
Operating Temperature | 0 to 70°C | -40 to 85°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
Temperature | Commercial | Industrial | Commercial | Commercial | Commercial | Commercial |
Form Factor | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ |
Transmitter Type | EML | EML | EML | EML | EML | EML |
Receiver Type | APD | PIN | APD | APD | APD | APD |
DDM/DOM | Supported | Supported | Supported | Supported | Supported | Supported |
Protocols | SFP+ MSA Compliant | SFP+ MSA Compliant、SFF-8472 | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant |
