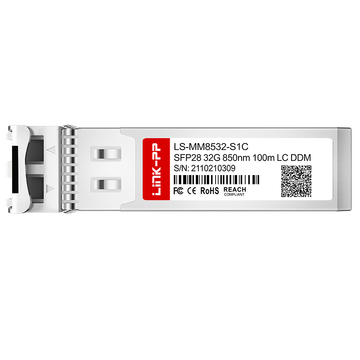

Dell 407-BBXM Compatible LINK-PP optical transceiver operates at 28.05Gbps over the SFP28 form factor, using 850nm wavelength optics and a duplex LC/UPC connector, while integrated DOM provides real-time parameter tracking, and the module delivers reliable transmission up to 70m on OM3 or 100m on OM4 multi-mode fiber cables.
Dell Part Number
407-BBXM
Vendor Name
LINK-PP
Form Factor
SFP28
Max Data Rate
28.05Gbps
Wavelength
850nm
Max Cable Distance
70m@OM3/100m@OM4
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
DOM/DDM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
MSA Compliant
Warranty
5 Years
Key Features of Dell 407-BBXM Compatible LINK-PP 32G SFP28
Dell 407-BBXM Compatible LINK-PP module is a 32G SFP28 850nm multi-mode optical transceiver designed for stable short-reach data transmission over MMF. It combines compact form factor, reliable optical performance, and real-time monitoring to support efficient 32Gbps connectivity in modern fiber links.
This module follows the SFP Multi-Source Agreement (MSA) for broad compatibility with standard networking equipment. It also supports SFF-8472 digital diagnostics functions, allowing users to monitor key operating parameters such as temperature, voltage, and optical power.
407-BBXM: 32 Gbps Connectivity for Short-Reach Interconnects
It enables 32Gbps data transmission for short-distance fiber interconnects within racks or between nearby devices. The module is well-suited for environments requiring fast and stable data exchange over limited distances.
407-BBXM Module with 850nm Wavelength
Operating at an 850nm wavelength, the module is optimized for multi-mode fiber transmission. This wavelength ensures efficient signal propagation and compatibility with standard MMF infrastructure.
407-BBXM Module Supporting 100m Transmission
The module supports transmission distances of up to 70 m over OM3 MMF and 100 m over OM4 MMF. This makes it suitable for typical short-range optical links in structured cabling systems.
407-BBXM Module with Duplex LC/UPC Interface
A duplex LC/UPC connector pair handles both transmit and receive channels in one plug. The UPC polish minimizes back reflection for stable link operation.
407-BBXM Module with DOM for Real-Time Monitoring
With built-in Digital Optical Monitoring (DOM), the module provides real-time visibility into its operating status. This helps simplify maintenance and improve network reliability through early detection of issues.
Each module is verified through optical parameter checks, thermal cycling, and signal integrity tests before leaving the factory.
407-BBXM Quality Certifications
The transceiver's design and manufacturing processes are backed by industry certifications that confirm long-term operational reliability.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
407-BBXM Certified for Reliable Host-Device Compatibility
Rigorous compatibility testing guarantees seamless interoperability across various host platforms, streamlining network integration and preventing deployment issues.
Each module undergoes a full suite of validation checks to guarantee stable SFP28 operation. Dive deeper into our methods at LINK-PP Test Support Center.
Optical Spectrum Test
Confirms wavelength stability and purity.
Eye Pattern Test
Validates mask margin and jitter performance.
Bit Error Rate Test
Measures link error-free transmission capability.
Temperature Test
Verifies functionality across thermal extremes.
Product Shipping for Dell 407-BBXM Compatible LINK-PP 32G SFP28
Dell 407-BBXM Compatible LINK-PP SFP28 module is packed and handled to ensure safe delivery. Efficient processes support timely shipment and order fulfillment.
Anti-Static Protective Packaging
Provides anti-static protection to prevent any ESD harm during shipment.
Shock-Resistant Transport Protection
Cushions modules against physical vibration and mechanical shocks during transit.
Fast Order Processing and Dispatch
Processes orders quickly and dispatches without unnecessary delay.
Global Logistics and International Delivery
Coordinates worldwide shipping via trusted carriers for reliable delivery.
Dell 407-BBXM Compatible LINK-PP allows easy deployment by inserting the module into compatible SFP28 interfaces and connecting duplex LC fiber. It supports short-distance communication across data center racks, switches, and storage systems, ensuring smooth and reliable optical link setup.
407-BBXM Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal 407-BBXM module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
You can use both! You will reach up to 70m over OM3 multi-mode fiber, while OM4 MMF is required to achieve the full 100m transmission distance. By
admin on
2026-04-04
A:
It is a certified Class 1 Laser product compliant with IEC 60825-1 safety standards, though technicians should still avoid staring directly into live optical apertures. By
admin on
2025-12-06
A:
Yes, we offer a sample evaluation program that allows network engineers to validate link performance in their own environment prior to a full deployment. Please contact our sales team to request a test module. By
admin on
2025-03-12
Please write comments with more than three
character.
494074
434598
A***d
Indonesia
Verified
Purchase
5 .0
2026-01-15
Migrating from 16G to 32G FC requires optics that don't compromise on signal integrity. We swapped our legacy transceivers with the LS-MM8532-S1C across our enterprise storage arrays and SAN switches. The EEPROM compatibility coding was spot-on. CLI diagnostics reveal stable laser bias currents and exact RX power telemetry. We've seen a significant reduction in latency during backup windows. Buying these third-party optics freed up enough budget to add redundant storage shelves!
Please write comments with more than three
character.
494074
434599
E***r
Russian Federation
Verified
Purchase
5 .0
2025-11-26
Real-time Digital Optical Monitoring makes remote troubleshooting a breeze. I can easily query laser bias current and supply voltage straight from our SNMP server. ⚡
Please write comments with more than three
character.
494074
434594
J***e
Malaysia
Verified
Purchase
5 .0
2025-02-08
Deploying these modules in our colocation facility for high-frequency trading server racks. Lower latency and pristine signal purity are non-negotiable for us. The 850nm MMF optics deliver low insertion loss and stable 32G transmission across all channels. Latching bail release functions smoothly without sticking—crucial when working in tight, high-density fiber patch panels. Zero CRC errors logged across two weeks of peak market volume.
Please write comments with more than three
character.
494074
434586
X***a
Denmark
Verified
Purchase
5 .0
2025-01-05
I have received the order, and your shipping time is out of expected. And the modules are functioning just as expected. we have always been satisfied with our equipment from you.
