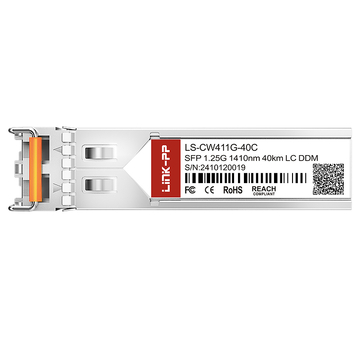

E1MG-CWDM40-1410 is a 1410nm CWDM SFP optical transceiver rated at 1.25Gbps, equipped with a DFB laser and PIN photodiode to enable up to 40km transmission over single-mode fiber. Integrated real-time digital diagnostic monitoring provides continuous readouts of bias current, temperature, supply voltage, and receive/transmit optical power. The module is specified for commercial operation across a case temperature range of 0°C to +70°C.
Brocade Part Number
E1MG-CWDM40-1410
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
1410nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-5 to 0dBm
RX Power
-26 to -1dBm
Receiver Sensitivity
-24dBm
Receiver Overload
-1dBm
EMC (Electromagnetic Compatibility)
Supported
DDM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
SFP MSA、SFF-8472
Key Features of Brocade E1MG-CWDM40-1410 Compatible LINK-PP 1.25G SFP
Brocade E1MG-CWDM40-1410 Compatible LINK-PP combines a 1410nm CWDM DFB laser, 1Gbps data rate, and 40km reach over single-mode fiber in a standard SFP form factor. It offers a duplex LC interface, real-time DDM compatible with SFF-8472, and hot-pluggability while fully adhering to the SFP MSA specification.
The E1MG-CWDM40-1410 SFP module adopts a hot-pluggable SFP footprint for easy field replacement. It also complies with the SFP MSA, ensuring interoperability with standard networking equipment.
E1MG-CWDM40-1410: 1 Gbps Connectivity for Distribution Networks
A 1Gbps data rate provides sufficient bandwidth for distribution network backhaul and aggregation links. This speed is well suited for Gigabit Ethernet backhaul and aggregation deployments.
E1MG-CWDM40-1410 Module with CWDM Technology for Fiber Efficiency
CWDM technology allows multiple optical channels to share a single fiber pair, reducing infrastructure costs. This module uses a fixed 1410nm wavelength within the CWDM grid, improving fiber utilization without requiring dense spacing.
E1MG-CWDM40-1410 Module with 1410nm Wavelength
The 1410nm wavelength positions this transceiver on a standard CWDM channel, enabling coexistence with other wavelengths over the same fiber. It simplifies network planning by using a well-defined ITU-T grid channel.
Up to 40km transmission distance is achievable over standard single-mode fiber with this module. Its DFB laser and PIN photodiode ensure reliable signal integrity for that extended reach.
E1MG-CWDM40-1410 Module with Duplex LC Interface
The module employs a duplex LC receptacle for dual-fiber operation, allowing independent TX/RX channels on one compact connector. This industry-standard design simplifies field terminations and guarantees consistent physical mating in high-density patch panels.
E1MG-CWDM40-1410 Module with DDM for Real-Time Monitoring
Real-time digital diagnostic monitoring (DDM) continuously tracks temperature, supply voltage, bias current, and optical power. This DDM function is fully compatible with the SFF-8472 management interface, enabling easy system supervision.
The E1MG-CWDM40-1410 1G SFP CWDM module fully complies with major international industry standards. It holds key certifications including ISO 9001, CE, RoHS, and FCC to ensure high performance and environmental safety.
Each SFP transceiver undergoes rigorous signal testing and environmental stress checks before leaving the factory. This comprehensive testing process guarantees stable signal transmission and low error rates during operation.
E1MG-CWDM40-1410 Quality Certifications
These official quality approvals verify that the optical transceiver meets strict safety and manufacturing benchmarks. They demonstrate our strong commitment to consistent product quality and long-term reliability.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
E1MG-CWDM40-1410 Certified for Reliable Host-Device Compatibility
The E1MG-CWDM40-1410 CWDM SFP module is extensively tested across various network switches and routers to ensure seamless plug-and-play performance. Its excellent device compatibility helps prevent system errors and simplifies the installation process for users.
Rigorous Testing Ensures Reliable SFP Performance
Every E1MG-CWDM40-1410 1G SFP optical transceiver undergoes strict performance checks to guarantee stable signal transmission and long-term network stability. Discover our complete validation methodology at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure central optical wavelength to ensure precise frequency alignment.
Eye Pattern Test
Verify signal waveform clarity for clean data transmission paths.
Bit Error Rate Test
Check total packet integrity under continuous heavy data traffic.
Temperature Test
Validate operational stability across extreme hot and cold conditions.
Product Shipping for Brocade E1MG-CWDM40-1410 Compatible LINK-PP 1.25G SFP
All E1MG-CWDM40-1410 1G SFP transceiver modules are carefully packaged to protect physical components during transit. Standardized handling procedures ensure safe transit from our facility to your location.
Anti-Static Protective Packaging
Shield delicate transceiver circuitry from sudden electrical static hazards.
Shock-Resistant Transport Protection
Absorb sudden physical impacts while moving through shipping networks.
Fast Order Processing and Dispatch
Prepare verified orders quickly for rapid dispatch to carriers.
Global Logistics and International Delivery
Ship items reliably to customer destinations across multiple countries.
Insert the E1MG-CWDM40-1410 1410nm CWDM SFP into a compatible SFP slot until latched, remove the dust plug, and attach clean LC patch cords. Designed for high-density distribution networks, this module enables cost-effective multi-channel wavelength aggregation across intermediate metro links and enterprise branch sites.
E1MG-CWDM40-1410 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal E1MG-CWDM40-1410 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, this module is specifically engineered for single-mode fiber using standard duplex LC optical connectors for links up to 40km. By
admin on
2026-04-21
A:
Yes, the module is engineered for a standard commercial case operating temperature of 0°C to +70°C (32°F to 158°F), ensuring continuous stability across enterprise server rooms and indoor networking closets. By
admin on
2026-03-12
A:
Yes, the LS-CW411G-40C module features a fully compliant hot-pluggable SFP footprint and SFP MSA standard interface for instant plug-and-play installation without interrupting active network traffic. By
admin on
2026-01-14
A:
Yes, it features built-in SFF-8472 compliant Digital Diagnostic Monitoring (DDM), allowing your network management platform to monitor real-time optical power, operating temperature, supply voltage, and laser bias current. By
admin on
2025-10-13
A:
Yes, the built-in CWDM DFB laser operates within the standard 1410nm channel, delivering stable optical output and high channel isolation without interfering with adjacent wavelengths on the passive filter. By
admin on
2025-07-05
Please write comments with more than three
character.
492152
457653
I***r
India
Verified
Purchase
5 .0
2026-05-04
Deployed these SFP optical modules across our campus fiber ring. The 1410nm wavelength paired perfectly with our CWDM Mux, and the 40km single-mode reach gives us plenty of headroom even on the long runs. DDM telemetry is accurate and the modules run cool at 0-70°C.
Please write comments with more than three
character.
492152
457651
O***k
Netherlands
Verified
Purchase
5 .0
2026-03-16
We deployed this 1410nm CWDM SFP module to connect two core switch stacks across our campus network. The transceiver slid into the standard SFP slot easily, and the duplex LC patch cable clicked into place securely. It integrated directly with our passive CWDM multiplexer unit without causing any channel crosstalk or link flapping. Our management platform picked up the DDM temperature and voltage telemetry immediately for 24/7 monitoring.
Please write comments with more than three
character.
492152
457663
N***y
Germany
Verified
Purchase
5 .0
2026-01-20
Used these 1G SFP CWDM transceivers to aggregate several remote IP camera feeds back to the central server room over single-mode fiber. Stable link budget and no thermal throttling issues observed in commercial indoor enclosures.
Please write comments with more than three
character.
492152
457656
G***y
Singapore
Verified
Purchase
4 .0
2026-01-07
Local parcel delivery was delayed by one day due to weather. Once it arrived, this CWDM 1G SFP module linked up instantly on our single-mode fiber with zero issues.
Please write comments with more than three
character.
492152
457666
J***s
United Kingdom
Verified
Purchase
5 .0
2025-12-06
Real-time DDM telemetry lets us monitor optical power, laser bias current, and operating temperature directly from our management dashboard. Great peace of mind for mission-critical uplinks.
Please write comments with more than three
character.
492152
457655
F***y
Brazil
Verified
Purchase
5 .0
2025-11-14
Allowed our enterprise campus to split bandwidth across specific ITU CWDM grid channels without running extra OS2 cables between distribution frames. Running stable for over two months now.
Please write comments with more than three
character.
492152
457660
W***n
Japan
Verified
Purchase
5 .0
2025-09-30
Leveraging the 1410nm channel on our CWDM grid allowed us to add an extra dedicated 1GbE pipeline between two municipal offices 27km apart. Very clean optical budget margin remaining.
Please write comments with more than three
character.
492152
457658
M***n
Republic of Korea
Verified
Purchase
5 .0
2025-08-11
Ran a full BER test at 1.25Gbps over 40km of SMF — clean results, well within spec. The PIN receiver is solid. These are now my default for CWDM links.
Please write comments with more than three
character.
492152
457662
H***h
Libyan Arab Jamahiriya
Verified
Purchase
5 .0
2025-07-09
Added this 1G CWDM module to our existing 8-channel CWDM passive filter system. Tx output sat nicely at -2.5dBm and Rx sensitivity is well within safe thresholds over a 34km single-mode link. Runs cool inside the rack.
Please write comments with more than three
character.
492152
457654
K***e
Canada
Verified
Purchase
5 .0
2025-06-01
Integrated this 1410nm SFP into our passive CWDM multiplexer/demultiplexer setup. Insertion loss was minimal and wavelength stability remained rock-solid during peak load hours.
Please write comments with more than three
character.
492152
457659
L***n
Norway
Verified
Purchase
5 .0
2025-05-06
We selected this 1410nm CWDM optical module to bridge traffic between our primary server facility and a remote campus annex through standard OS2 single-mode runs. The module snapped securely into the aggregation switch cage, and the bail latch makes hot-swapping straightforward during structured maintenance windows. Line-rate Ethernet traffic passed through consistently with rock-solid latency during peak usage and heavy nighttime system backups. Internal thermal dissipation remains well-managed inside our standard fan-cooled rack enclosures without causing interface throttling.
Please write comments with more than three
character.
492152
457665
I***s
Sweden
Verified
Purchase
5 .0
2025-04-19
We needed a dependable 1Gbps transceiver to establish a stable inter-building connection across town. This 40km single-mode module worked straight out of the protective packaging with zero configuration headaches. Even over long single-mode fiber runs with multiple patch panels, the link established quickly and stayed steady. Throughput and latency remained completely stable during continuous enterprise backup routines and heavy office traffic.
Please write comments with more than three
character.
492152
457664
T***s
France
Verified
Purchase
5 .0
2025-03-05
Saves a huge chunk of our infrastructure budget compared to original branded optics. Passing full line-rate Gigabit traffic with very stable latency across our metro aggregation point.
Please write comments with more than three
character.
492152
457652
O***n
Thailand
Verified
Purchase
4 .0
2025-02-08
The outer shipping carton looked a bit loose from rough transit handling, but the internal packaging was completely sealed. The transceiver snapped into the port securely.
