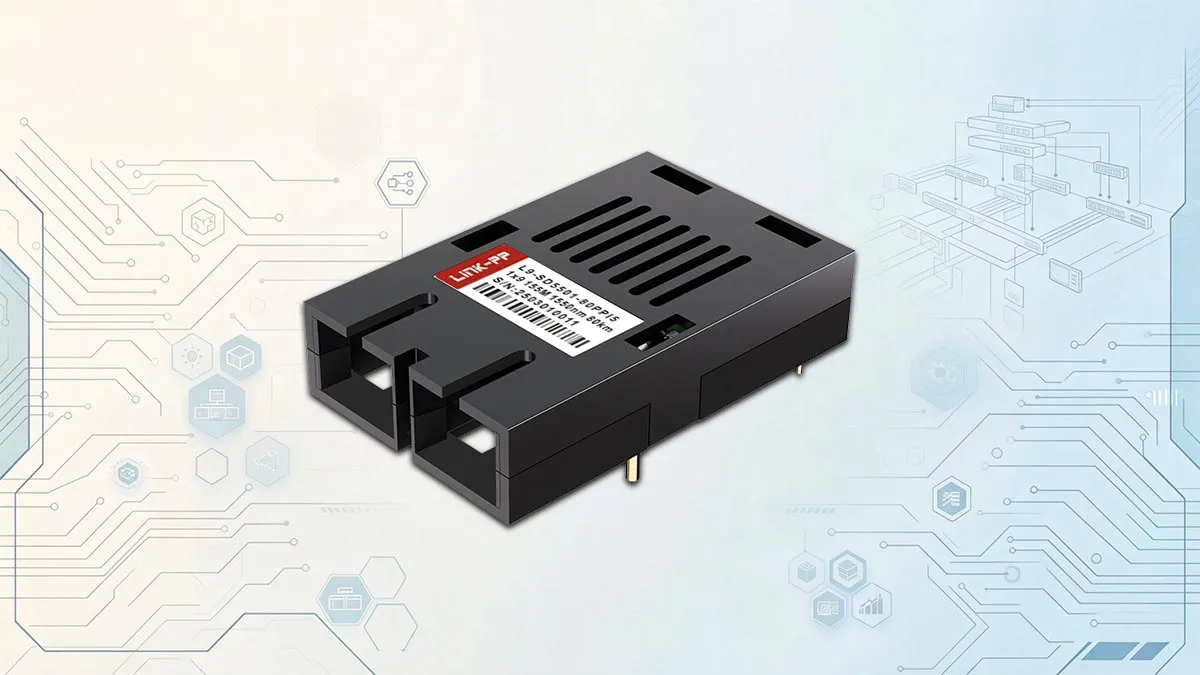

L9-SD5501-80PPI5 is a 155M SDH SONET 1×9 optical transceiver module equipped with a 1550nm DFB laser transmitter and a high-sensitivity PIN photodiode receiver. Designed for long-reach transmission, it delivers links up to 80km over 9/125μm single-mode fiber (SMF) using a single 5V power supply across an industrial operating case temperature range of -40°C to +85°C.
LINK-PP Part Number
L9-SD5501-80PPI5
Vendor Name
LINK-PP
Form Factor
1x9
Max Data Rate
155Mbps
Wavelength
1550nm
Max Cable Distance
80km
Connector
Duplex SC
Fiber Type
SMF
Transmitter Type
DFB
Receiver Type
PIN
Receiver Sensitivity
<-36dBm
Supply Voltage
5V
Operating Temperature Range
-40 to 85°C
Application
ATM 155Mbps
SONET/SDH
100Mbps Ethernet
Digital Video System
Other Optic Link
Key Features of LINK-PP L9-SD5501-80PPI5 155M 1×9
LINK-PP L9-SD5501-80PPI5 is a dedicated 155M optical transceiver designed to provide dependable data transport across long-haul SDH and SONET infrastructure. Built in an industry-standard 1×9 footprint with a duplex SC interface, it transmits optical signals at 1550nm over 80km of single-mode fiber.

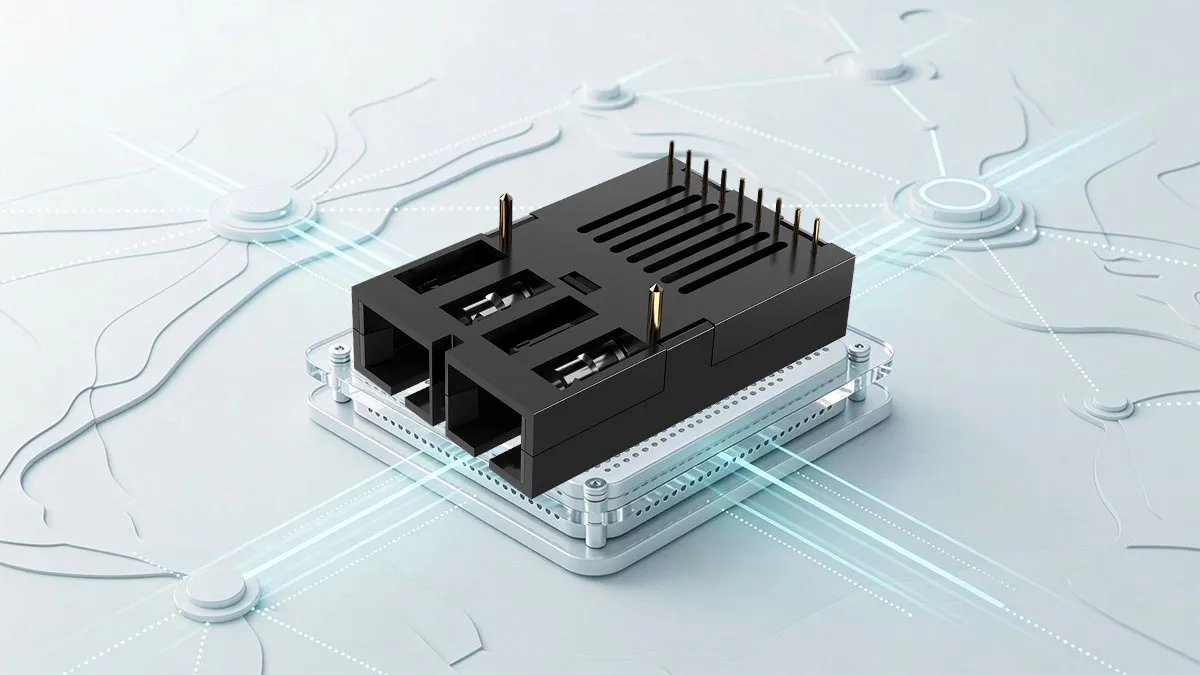

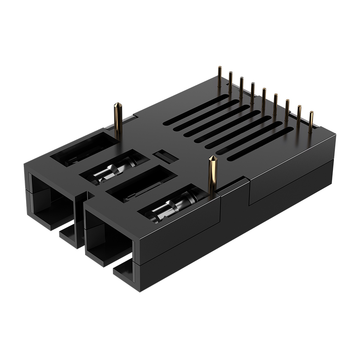

LINK-PP L9-SD5501-80PPI5 155M 1×9 Optical Module
The transceiver complies fully with the multi-sourced 1×9 footprint protocol for easy board design and replacement. It also features standard (LV)PECL differential inputs and outputs, as well as a built-in (LV)PECL signal detect for link monitoring.

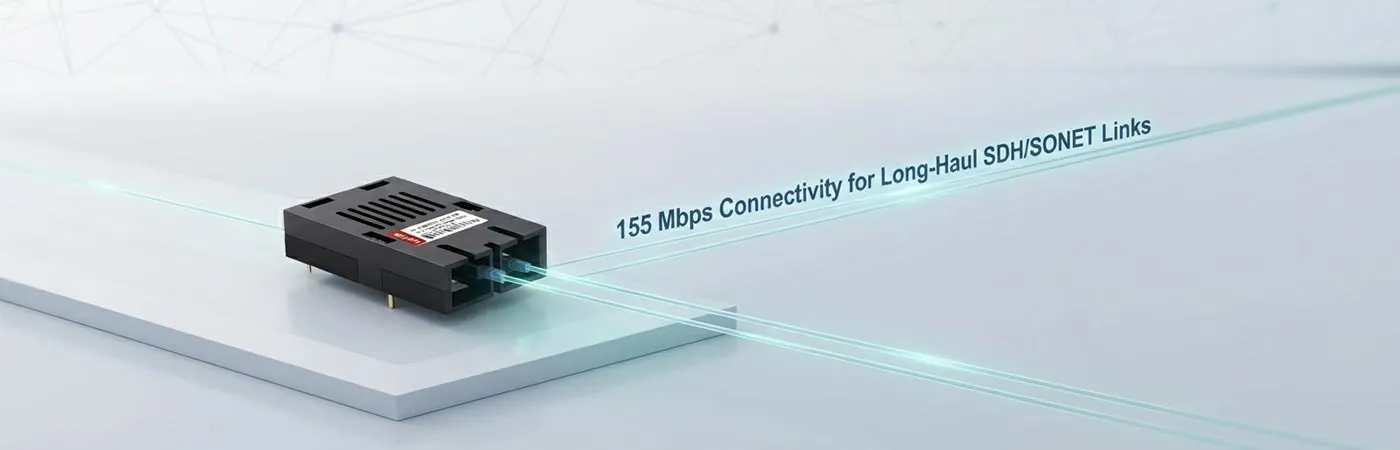

L9-SD5501-80PPI5: 155 Mbps Connectivity for Long-Haul SDH/SONET Links
A steady 155Mbps data rate enables this module to support STM-1 and OC-3 telecommunication links with low latency. This makes it an ideal fit for long-range telecom access networks, power grid communications, and industrial control systems.

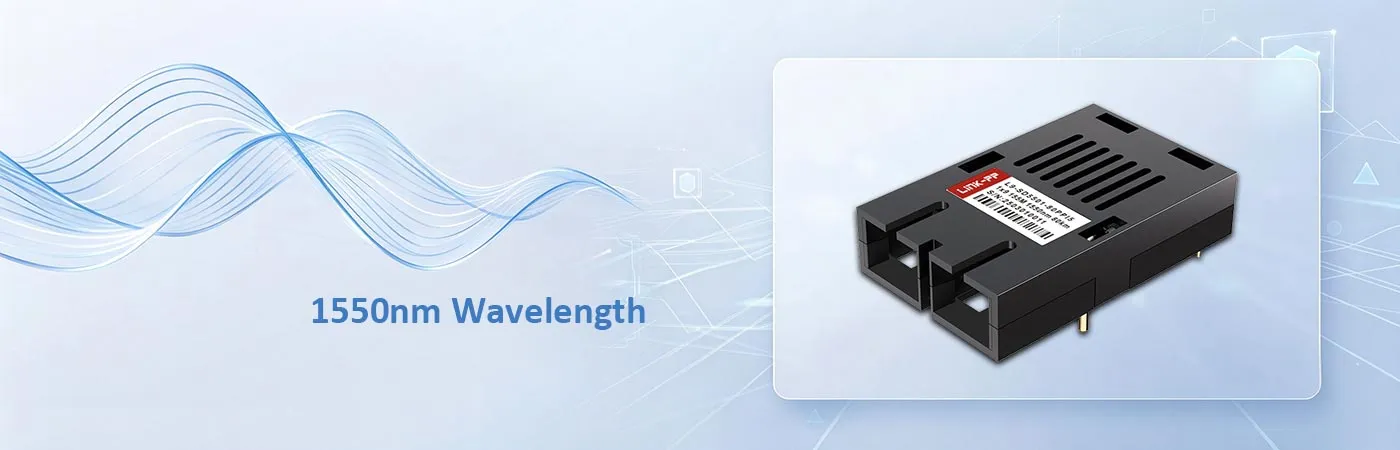

L9-SD5501-80PPI5 Module with 1550nm Wavelength
An optical emitter operating at the 1550nm center wavelength takes advantage of the lowest signal loss window in single-mode fiber. This low-attenuation design ensures optical signals travel smoothly over long fiber links without significant power drop.
Long-reach capability allows the module to send data up to 80km across standard 9/125μm single-mode fiber. As a result, network operators can connect distant sites directly without deploying costly optical amplifiers or repeaters.

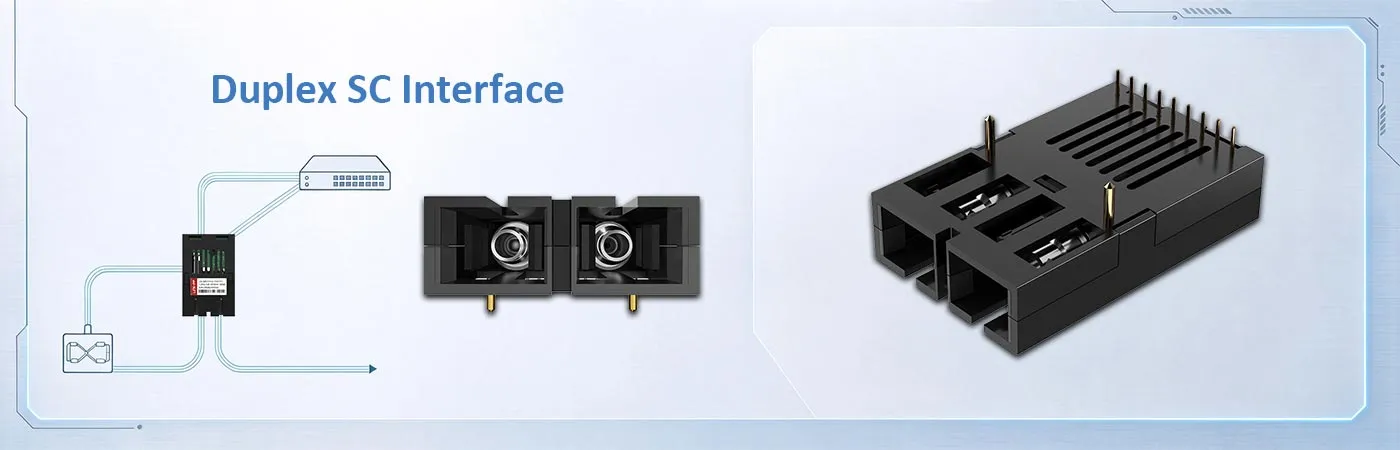

L9-SD5501-80PPI5 Module with Duplex SC Interface

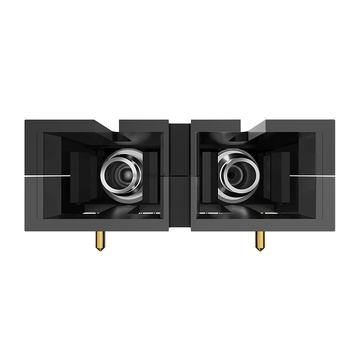

A duplex SC receptacle provides an easy push-pull connection that locks securely with standard single-mode optical patch cords. Its sturdy connector body helps reduce signal loss and prevents accidental disconnections in demanding field installations.
LINK-PP L9-SD5501-80PPI5 155M 1×9 Certification
The L9-SD5501-80PPI5 155M 1×9 module is manufactured under strict ISO 9001 quality management and meets global CE, RoHS, and FCC regulatory requirements.
Every 1×9 transceiver undergoes rigorous electrical, optical, and environmental screening to ensure reliable continuous operation in the field.
L9-SD5501-80PPI5 Quality Certifications
International compliance marks verify that the device satisfies mandatory safety standards and hazardous substance restrictions for worldwide deployment.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
Standard Multi-Vendor PCB Footprint Compatibility
The industry-standard 1×9 pin layout ensures seamless mechanical and electrical drop-in fit onto host printed circuit boards across various networking platforms.
Rigorous Testing Ensures Reliable 1×9 Performance
Each 1×9 optical module undergoes strict testing to verify optical precision, signal integrity, and long-term operating stability. For more detailed testing processes, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength and spectral width to prevent signal dispersion.
Eye Pattern Test
Analyze transmitter waveform quality to guarantee low noise and jitter.
Bit Error Rate Test
Evaluate end-to-end data transmission accuracy to prevent packet loss.
Temperature Test
Validate stable optical operation across demanding industrial case thermal conditions.
Product Shipping for LINK-PP L9-SD5501-80PPI5 155M 1×9
Every L9-SD5501-80PPI5 155M 1×9 optical transceiver is packed under strict standards to prevent transit damage and safeguard optical components. Efficient fulfillment processes and dependable carrier partnerships ensure prompt delivery.
Anti-Static Protective Packaging
Shield delicate electronic components against harmful static discharge during transit.
Shock-Resistant Transport Protection
Cushion physical impacts during transit to preserve delicate internal optics.
Fast Order Processing and Dispatch
Handle incoming customer orders quickly to facilitate prompt warehouse dispatch.
Global Logistics and International Delivery
Partner with established international carriers to provide dependable global shipping.

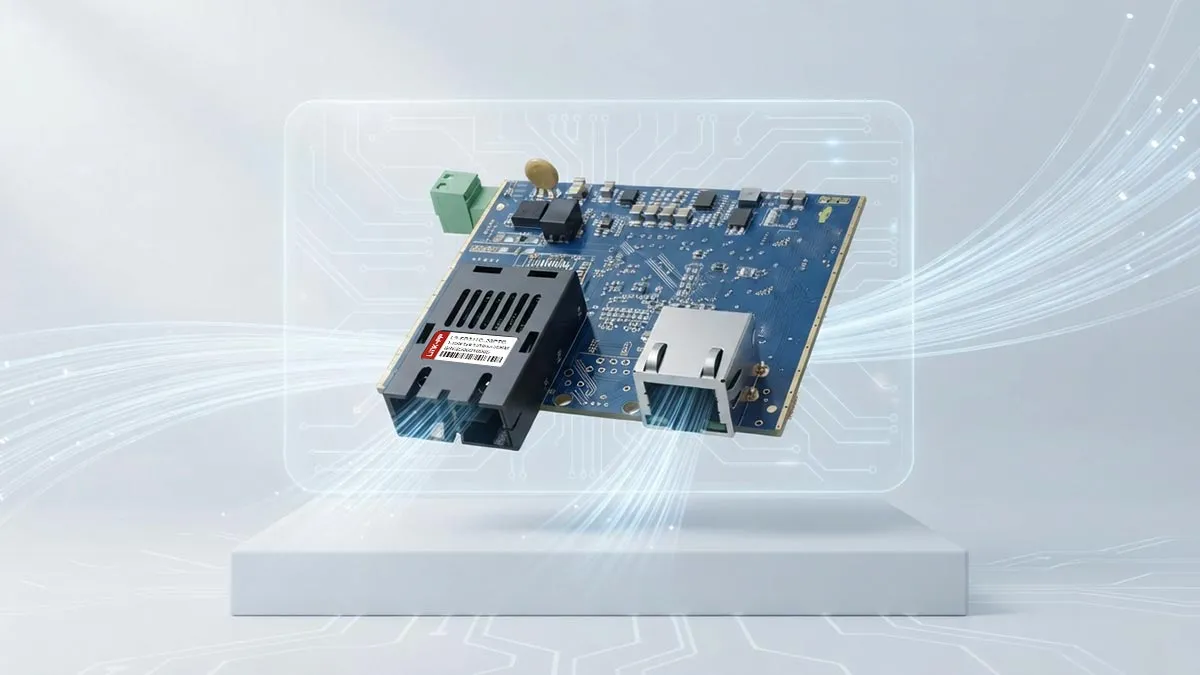

Solder the 1×9 pins securely onto the host board, connect clean duplex SC single-mode patch cords, and power on the 5V line. The module establishes stable 155Mbps optical links across long-haul SDH/SONET spans, ensuring dependable telecom aggregation and utility network data transport.
L9-SD5501-80PPI5 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal L9-SD5501-80PPI5 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
