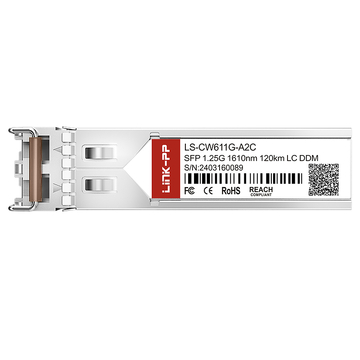

The LINK-PP LS-CW611G-A2C is a high-performance 1.25G CWDM SFP optical transceiver specifically designed for exceptional long-haul communication. Operating at a 1610nm wavelength, this commercial-grade module easily achieves a 120km transmission distance over single-mode fiber. It features a reliable CWDM DFB laser, a high-sensitivity APD photodetector, and a standard duplex LC interface.
| LINK-PP Part Number | LS-CW611G-A2C | Vendor Name | LINK-PP |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1610nm | Max Cable Distance | 120km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | APD |
| TX Power | -1 to +5dBm | RX Power | -32 to -9dBm |
| Receiver Sensitivity | -32dBm | DDM/DOM | Supported |
| Operating Temperature Range | 0 to 70°C | Protocols | MSA Compliant |
The LINK-PP LS-CW611G-A2C offers outstanding features including a hot-pluggable SFP footprint and an energy-efficient single 3.3V power supply. Equipped with an integrated MCU control unit, this 1.25G transceiver supports real-time digital diagnostic monitoring, ensuring maximum stability for demanding optical network environments.
As a premier networking component, the LINK-PP LS-CW611G-A2C 1.25G SFP optical module provides cost-effective and highly stable data transmission. This MSA-compliant transceiver seamlessly upgrades enterprise infrastructure, ensuring robust Gigabit Ethernet performance across extended optical communication distances.
Engineered for metropolitan and backbone networks, the LS-CW611G-A2C delivers resilient 1.25Gbps connectivity. Its impressive long-haul capabilities empower internet service providers and data centers to build highly reliable, wide-area optical links without requiring expensive mid-span amplification equipment.
Utilizing advanced Coarse Wavelength Division Multiplexing, the LS-CW611G-A2C module significantly maximizes existing fiber plant efficiency. This CWDM technology allows network operators to transmit multiple signals simultaneously over a single optical fiber pair, dramatically reducing infrastructure deployment costs.
Centered precisely at the 1610nm wavelength, the LS-CW611G-A2C module guarantees excellent signal integrity with minimal dispersion. The premium DFB laser transmitter ensures a narrow spectral width, maintaining superior optical performance throughout the entire specified long-haul communication range.
Designed for ultra-long distances, the LS-CW611G-A2C module effortlessly supports up to 120km transmission over single-mode fiber. The integration of a highly sensitive APD photodiode allows it to reliably detect extremely weak optical signals after extensive long-distance routing.
Featuring a standard duplex LC receptacle, the LS-CW611G-A2C module ensures quick, secure, and physically reliable fiber connections. This widely adopted connector format provides high-density patching capabilities, making it exceptionally easy to integrate into existing telecommunication network setups.
Fully compliant with SFF-8472, the LS-CW611G-A2C module features digital optical monitoring capabilities. This built-in diagnostic function enables network administrators to continuously track critical operating parameters like temperature, voltage, bias current, and real-time optical power levels remotely.
The LINK-PP LS-CW611G-A2C 1.25G SFP strictly adheres to global industry standards, guaranteeing safe and environmentally responsible operation across all demanding enterprise and commercial networking optical environments.
Every single LS-CW611G-A2C undergoes a rigorous quality testing program before shipment. This comprehensive evaluation guarantees maximum optical precision, signal stability, and structural durability for critical fiber network infrastructures.
Meeting the highest international safety standards, the LS-CW611G-A2C proudly carries essential quality certifications including CE, FCC, UKCA, UL, REACH, and RoHS, alongside strict Class I laser safety compliance.
Thoroughly validated against SFP MSA specifications, the LS-CW611G-A2C is fully certified for flawless host-device compatibility. It ensures seamless integration with major Gigabit Ethernet switches and core routers globally.
Our multi-stage inspection process guarantees that each transceiver meets stringent specifications. Rigorous testing ensures reliable SFP performance under continuous long-haul data transmission operational loads.
The optical spectrum test verifies the precise 1610nm center wavelength and side-mode suppression ratio.
An exhaustive eye pattern test ensures outstanding 1.25Gbps signal integrity and strictly minimal jitter.
The bit error rate test confirms flawless data transmission without packet loss over 120km distance.
This thermal evaluation verifies stable transceiver operations within the commercial zero to seventy-degree range.
We employ industry-leading packaging standards to ensure your LINK-PP LS-CW611G-A2C 1.25G SFP arrives in pristine condition, ready for immediate optical network deployment.
Each transceiver is securely sealed in dedicated anti-static bags preventing harmful electrostatic discharge events.
We utilize customized protective foam trays to effectively absorb severe vibrations during rough transit.
Streamlined warehouse operations guarantee exceptionally rapid order processing and immediate secure package dispatch scheduling.
Partnering with premier couriers enables highly reliable global logistics and fully trackable international delivery.
Deploying the LINK-PP LS-CW611G-A2C 1.25G SFP is remarkably straightforward. Network technicians simply insert the hot-pluggable module into any compatible networking switch port, connect the duplex LC optical cables, and immediately establish a highly reliable 120km fiber optic communication link.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable LS-CW611G-A2C modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
![]() LS-CW611G-A6C
| ![]() LS-CW611G-A0I
| ![]() LS-CW611G-10C
| ![]() LS-CW611G-80I
| ![]() LS-CW611G-40I
|
|---|
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps |
Wavelength | 1610nm | 1610nm | 1610nm | 1610nm | 1610nm | 1610nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 120km | 160km | 100km | 10km | 80km | 40km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -5 to 0dBm | -1 to +4dBm | -5 to 0dBm |
Receiver Sensitivity | -32dBm | -32dBm | -32dBm | -24dBm | <-26dBm | -26 to -1dBm |
Operating Temperature | 0 to 70°C | 0 to 70°C | -40 to +85°C | 0 to 70°C | -40 to 85°C | -40 to 85°C |
Temperature | Commercial | Commercial | Industrial | Commercial | Industrial | Industrial |
Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
Transmitter Type | DFB | DFB | DFB | DFB | DFB | DFB |
Receiver Type | APD | APD | APD | PIN | PIN | PIN |
DDM/DOM | Supported | Supported | Supported | Supported | Supported | Supported |
Protocols | MSA Compliant | MSA Compliant | MSA Compliant、SFF-8472 | SFP MSA、SFF-8472 | SFP MSA、SFF-8472 | SFP MSA、SFF-8472 |
