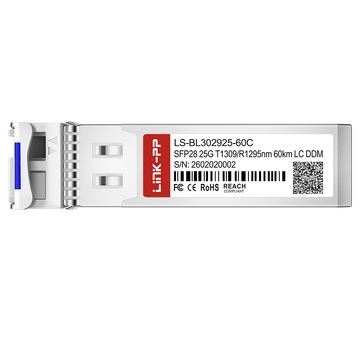

The LS-BL302925-60C is a 25G SFP28 BiDi transceiver operating on 1309nm-TX/1295nm-RX wavelengths with an EML transmitter and APD receiver assembly. Designed for commercial operating temperatures of 0 to +70°C, it covers up to 60km over single-mode fiber with FEC and offers integrated digital optical monitoring for active link management.

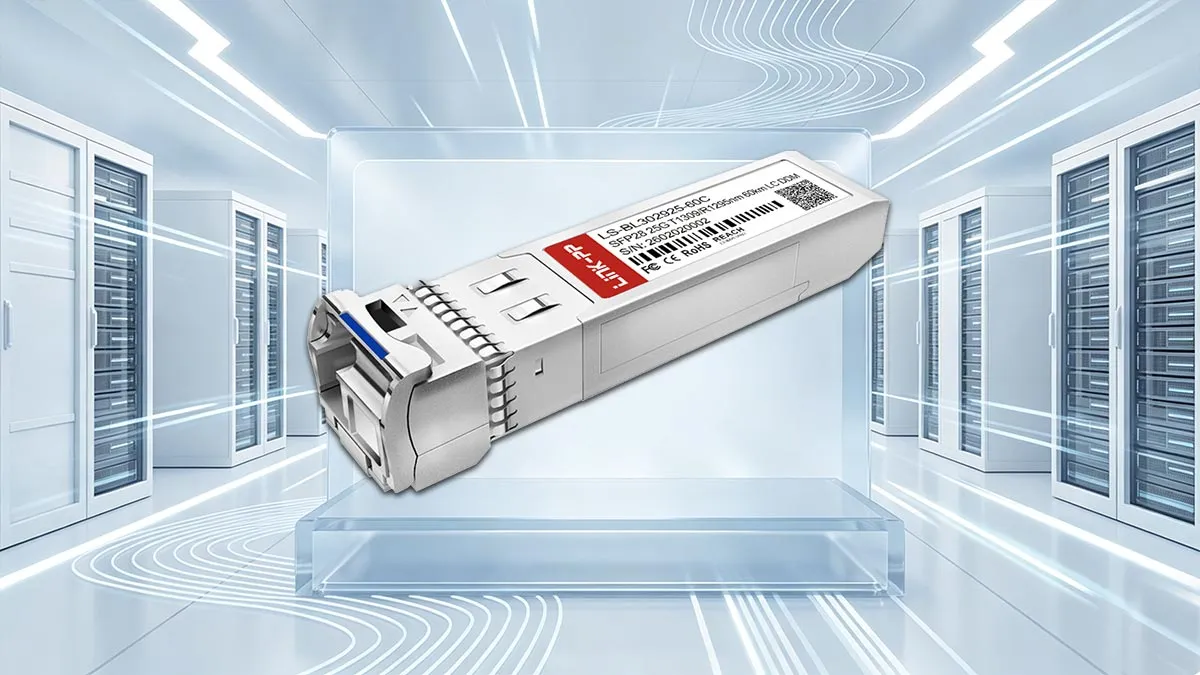

LINK-PP Part Number
LS-BL302925-60C
Vendor Name
LINK-PP
Form Factor
SFP28
Max Data Rate
25.78125Gbps
Wavelength
1309nm-TX/1295nm-RX
Max Cable Distance
60km
Connector
Simplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
0 to +6dBm
RX Power
-21 to -4dBm
Receiver Sensitivity
-21dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
MSA Compliant, CPRI, eCPRI
Key Features of LINK-PP LS-BL302925-60C 25G SFP28
LINK-PP LS-BL302925-60C delivers 25Gbps connectivity over a single strand of fiber, supporting extended links up to 60km. It pairs low power consumption with integrated digital diagnostics to maximize bandwidth efficiency across metropolitan access networks.

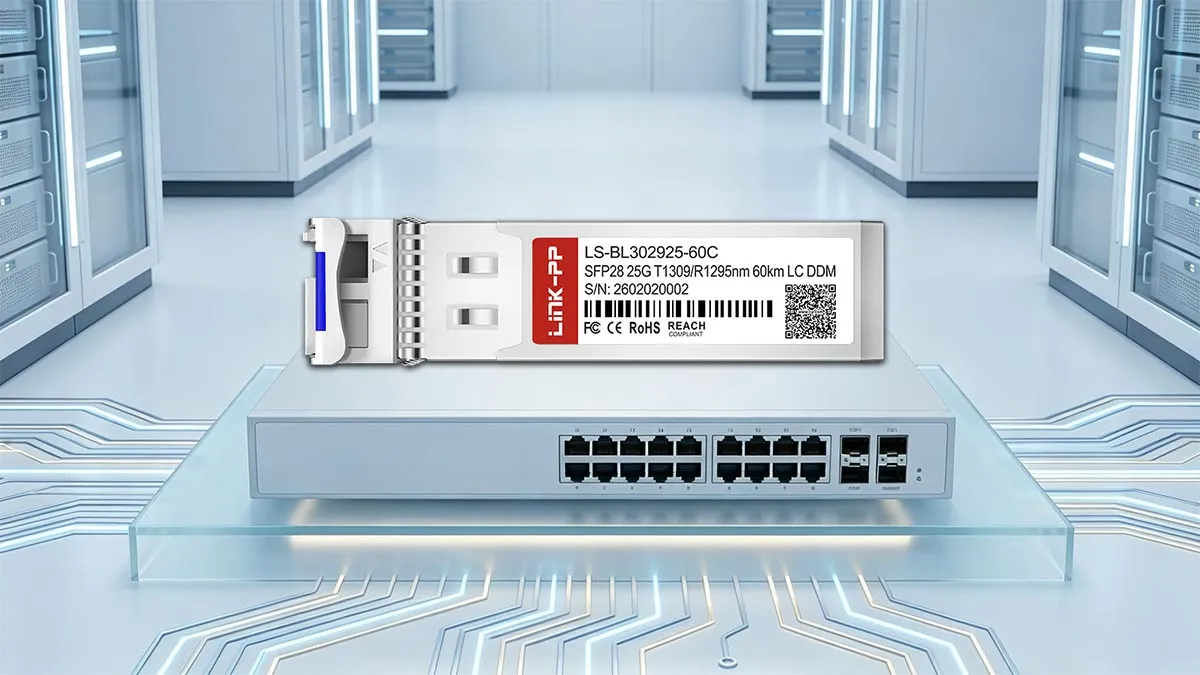

LINK-PP LS-BL302925-60C 25G SFP28 Optical Module
This transceiver features an all-metal housing that provides superior EMI shielding to prevent signal interference in dense racks. It also maintains low power consumption under 1.6W, helping keep overall switch operating costs and thermal loads minimal.

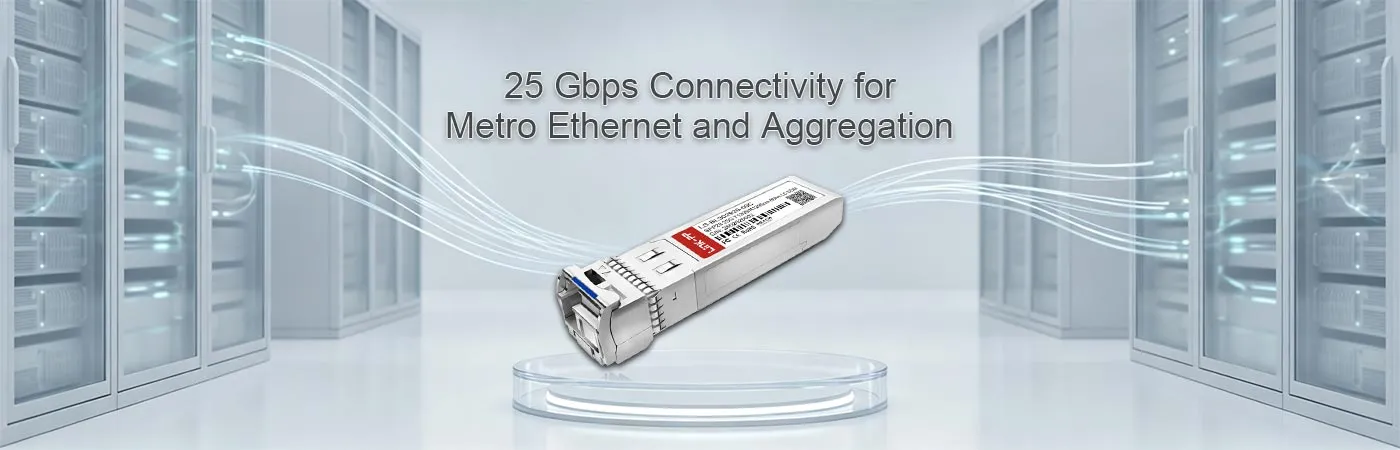

LS-BL302925-60C: 25 Gbps Connectivity for Metro Ethernet and Aggregation
A dedicated 25Gbps data rate allows network switches to handle heavy aggregation traffic without bottlenecking. It serves as a practical, high-throughput upgrade path for enterprise metro Ethernet rings and regional distribution points.

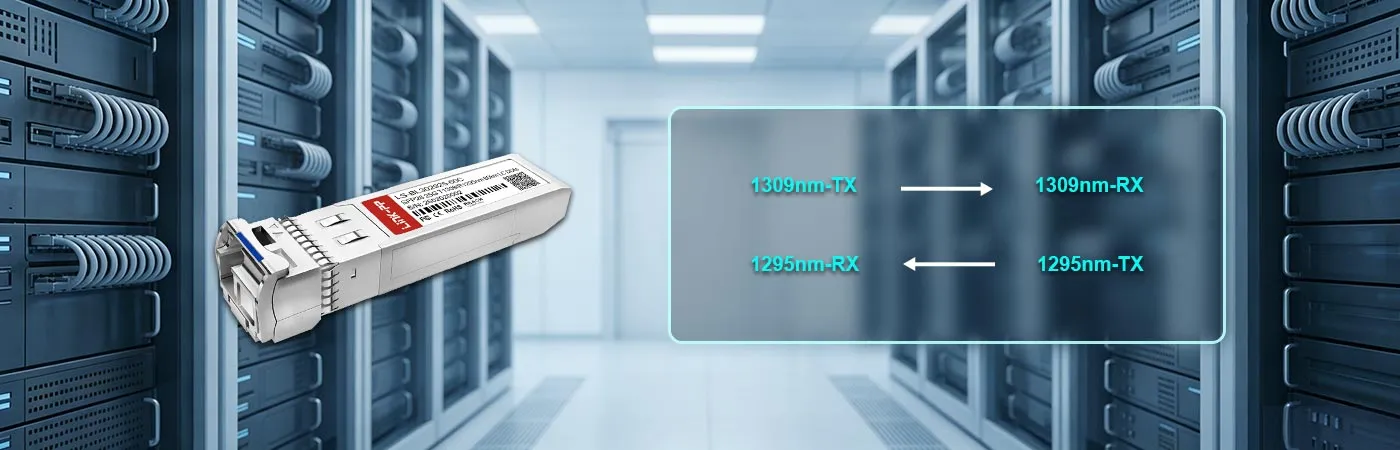

LS-BL302925-60C Module with 1309nm-TX/1295nm-RX Wavelength
The optical core uses an exact 1309nm transmitter and 1295nm receiver pair to separate upstream and downstream traffic on a single fiber. This complementary wavelength configuration pairs seamlessly with its opposite-end counterpart to ensure clean, bidirectional communication.
Long-distance transmission reaches up to 60km over standard single-mode fiber with host-side Forward Error Correction enabled. Such substantial reach makes it ideal for spanning distant central offices and bridging dispersed facility hubs.

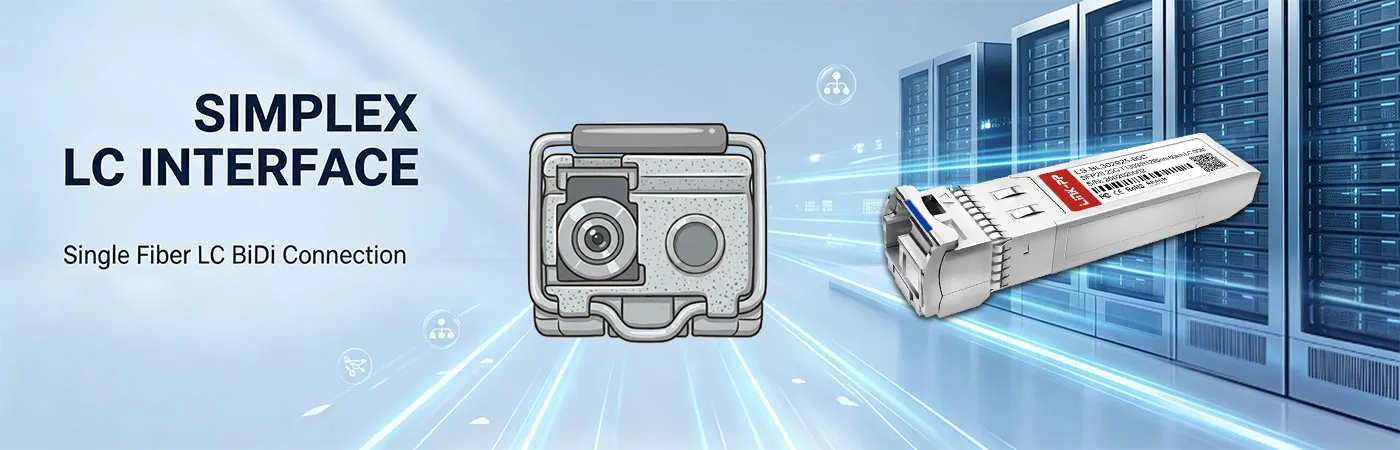

LS-BL302925-60C Module with Simplex LC Interface
A single simplex LC connector cuts fiber patch requirements by half compared to dual-strand alternatives. This streamlined port design maximizes existing optical distribution frames and lowers overall cabling expenditure.

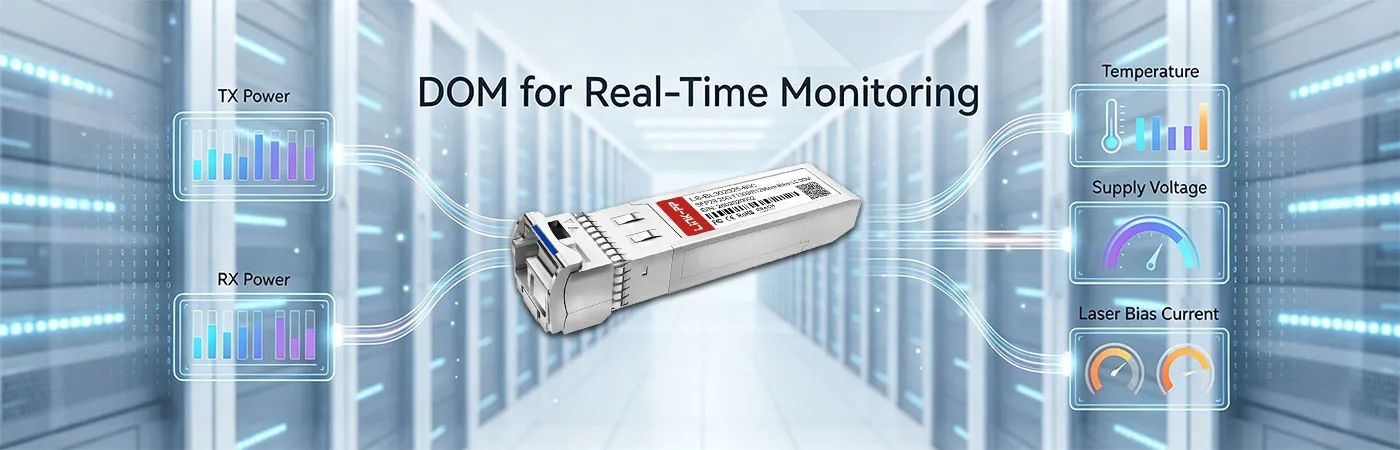

LS-BL302925-60C Module with DOM for Real-Time Monitoring
Integrated Digital Optical Monitoring gives administrators continuous telemetry on critical operational metrics like optical power, voltage, and temperature. Fully compatible with SFF-8472 standards, it simplifies link maintenance and enables rapid troubleshooting before minor faults trigger outages.
LINK-PP LS-BL302925-60C 25G SFP28 Certification
LINK-PP LS-BL302925-60C 25G SFP28 complies with strict international industry benchmarks, carrying full certifications such as ISO 9001, CE, RoHS, and FCC. These credentials demonstrate that every transceiver adheres to rigorous environmental safety, manufacturing control, and electromagnetic emission rules.
Every SFP28 transceiver undergoes comprehensive optical performance evaluations and temperature cycling tests before shipment. This thorough inspection process verifies stable data transmission and clean signal integrity under continuous network workloads.
LS-BL302925-60C Quality Certifications
Official quality approvals confirm that the transceiver is built under strict factory controls and safe manufacturing guidelines. This ensures every module meets dependable quality standards for stable day-to-day operation.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-BL302925-60C Certified for Reliable Host-Device Compatibility
Extensive switch and router verification guarantees seamless plug-and-play operation across leading networking brands. The internal EEPROM is programmed and checked to ensure immediate hardware recognition without configuration errors.
Comprehensive inspections verify signal integrity, data accuracy, and hardware durability before every SFP28 module ships. To explore our detailed verification procedures and testing equipment, please visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central emission wavelengths to maintain stable optical output power.
Eye Pattern Test
Evaluate optical signal waveforms to ensure clean high-speed data transmission.
Bit Error Rate Test
Measure data transmission accuracy to guarantee flawless packet delivery over links.
Temperature Test
Assess thermal tolerance to maintain reliable operation across temperature fluctuations.
Product Shipping for LINK-PP LS-BL302925-60C 25G SFP28
Every LS-BL302925-60C SFP28 transceiver is packed with dedicated protective measures to ensure safe handling throughout the entire transit process. Reliable worldwide shipping networks guarantee prompt order fulfillment and on-time arrival for global network deployments.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage to keep internal circuits completely safe.
Shock-Resistant Transport Protection
Shield sensitive optical components against sudden impacts during transport.
Fast Order Processing and Dispatch
Accelerate order fulfillment to ensure immediate inventory dispatch schedules.
Global Logistics and International Delivery
Coordinate trusted couriers to provide dependable worldwide shipment delivery.

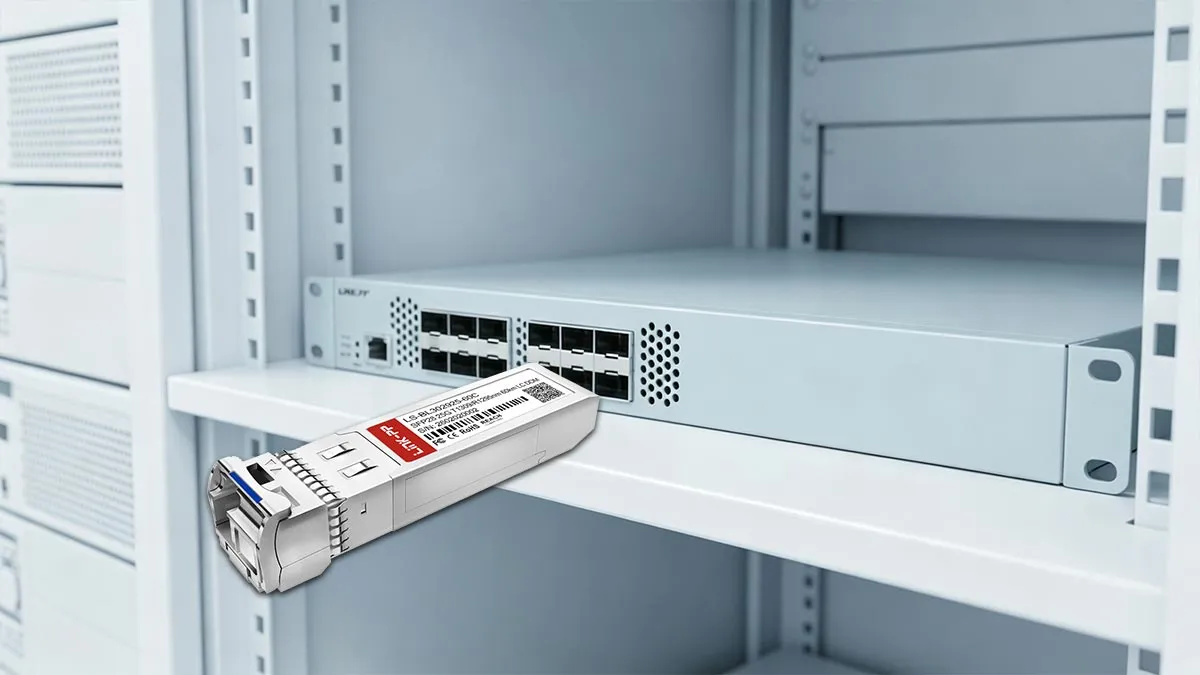

Install the LS-BL302925-60C BiDi optical module into a compatible SFP28 port, insert the simplex LC single-mode patch cable, and verify real-time telemetry via DOM. The transceiver enables straightforward deployment across metro Ethernet rings and aggregation switches, delivering reliable 25Gbps transmission over extended long-haul spans.
LS-BL302925-60C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-BL302925-60C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
No, it will work smoothly. The LS-BL302925-60C BiDi module features an all-metal housing designed for superior EMI shielding, and it draws low power (under 1.6W), so standard rack airflow easily keeps it cool even in fully loaded line cards. By
admin on
2026-04-08
A:
No, BiDi optics work in matched pairs with opposite wavelengths. Because this module transmits at 1309nm and receives at 1295nm, the opposite end must use the matching counterpart that transmits at 1295nm and receives at 1309nm (part number LS-BL293025-60C) over the same single fiber strand. By
admin on
2025-10-12
A:
Yes, the module can handle an 18dB loss in theory. It has a 21dB power budget (0dBm transmit power and -21dBm receiver sensitivity), which leaves about 3dB of margin. That is technically workable. But 3dB is a small margin, so we strongly recommend cleaning all fiber connectors and measuring the actual end‑to‑end loss with an OTDR before deployment. By
admin on
2025-03-17
Please write comments with more than three
character.
496650
463769
D***l
Singapore
Verified
Purchase
5 .0
2026-03-27
Deployed this 1309nm-TX/1295nm-RX 25G BiDi module for inter-building links across our municipal campus. Clean link budget across 40km of legacy single-strand SMF without any frame drops.
Please write comments with more than three
character.
496650
463757
D***s
United Kingdom
Verified
Purchase
5 .0
2026-02-17
Used for high-capacity spine-leaf interconnects between separate colocation suites. Latency is rock steady, and MSA compliance ensured instant recognition on our switches.
Please write comments with more than three
character.
496650
463767
B***n
New Zealand
Verified
Purchase
5 .0
2026-01-24
We integrated this 25G SFP28 module into an enterprise core routing ring spanning remote branch facilities. The module draws minimal power, stays cool in standard rack airflow, and eliminates the need to blow additional fiber ducts. A truly cost-effective long-haul solution.
Please write comments with more than three
character.
496650
463774
R***s
Singapore
Verified
Purchase
5 .0
2026-01-08
Excellent transceiver for 5G fronthaul eCPRI transmission between telco cabinets. Saved us from leasing a second fiber core, and the optical power budget is right on spec. ;)
Please write comments with more than three
character.
496650
463770
L***s
Romania
Verified
Purchase
5 .0
2025-11-03
Running these 25G SFP28 transceiver modules inside our distribution hub. DOM telemetry reports exact optical levels, and the commercial 0 to 70°C operating temp stays well within thresholds under full 25.78Gbps traffic loads.
Please write comments with more than three
character.
496650
463766
E***s
Germany
Verified
Purchase
5 .0
2025-09-18
Upgraded our core research campus backbone using single-fiber bi-directional optics. Both 1309nm-TX and 1295nm-RX channels operate cleanly with minimal dispersion penalties over long spans. ;)
Please write comments with more than three
character.
496650
463756
N***m
France
Verified
Purchase
5 .0
2025-07-30
Upgraded our disaster recovery datacenter replication link across town. At roughly 52km of dark fiber, the APD receiver sensitivity held solid with zero bit errors logged over 72 hours of stress testing. Definitely ordering more for secondary POPs.
Please write comments with more than three
character.
496650
463763
S***k
Sweden
Verified
Purchase
4 .0
2025-06-10
Link established right away over 55km of single-strand SMF. The courier rescheduled delivery by one business day due to local weather delays, but the hardware itself is top quality.
Please write comments with more than three
character.
496650
463775
E***s
Norway
Verified
Purchase
5 .0
2025-05-06
We used these 60km 25G SFP28 optical transceivers to aggregate dense camera streams across an outer perimeter railway ring. Even with multiple intermediate splice points, the link locked on immediately with stable eCPRI framing. Extremely dependable hardware for remote node aggregation.
Please write comments with more than three
character.
496650
463761
H***y
Denmark
Verified
Purchase
5 .0
2025-03-12
Paired this 1309nm-TX BiDi module with the complementary 1295nm-TX module across 45km. The +3dBm launch power easily punched through our patch panels. =D
Please write comments with more than three
character.
496650
463765
B***s
Finland
Verified
Purchase
5 .0
2025-02-15
Tested on a 58km regional dark fiber run connecting two suburban utility substations. The APD receiver pulled in -17.5dBm, providing plenty of margin above the -21dBm sensitivity limit. Pristine packet flow all week. :D
Please write comments with more than three
character.
496650
463771
B***z
Taiwan, Province of China
Verified
Purchase
5 .0
2025-01-19
Replaced our old 10G trunk on a long metro run. The EML laser coupled with the APD receiver pulled in clean -16dBm RX power across 48km. Solid link stability. :)
Please write comments with more than three
character.
496650
463758
D***n
Bulgaria
Verified
Purchase
4 .0
2025-01-04
Transceiver optics and link quality are excellent across 50km, but the courier tracking took three days to update after leaving customs. The optic itself is top-tier.
