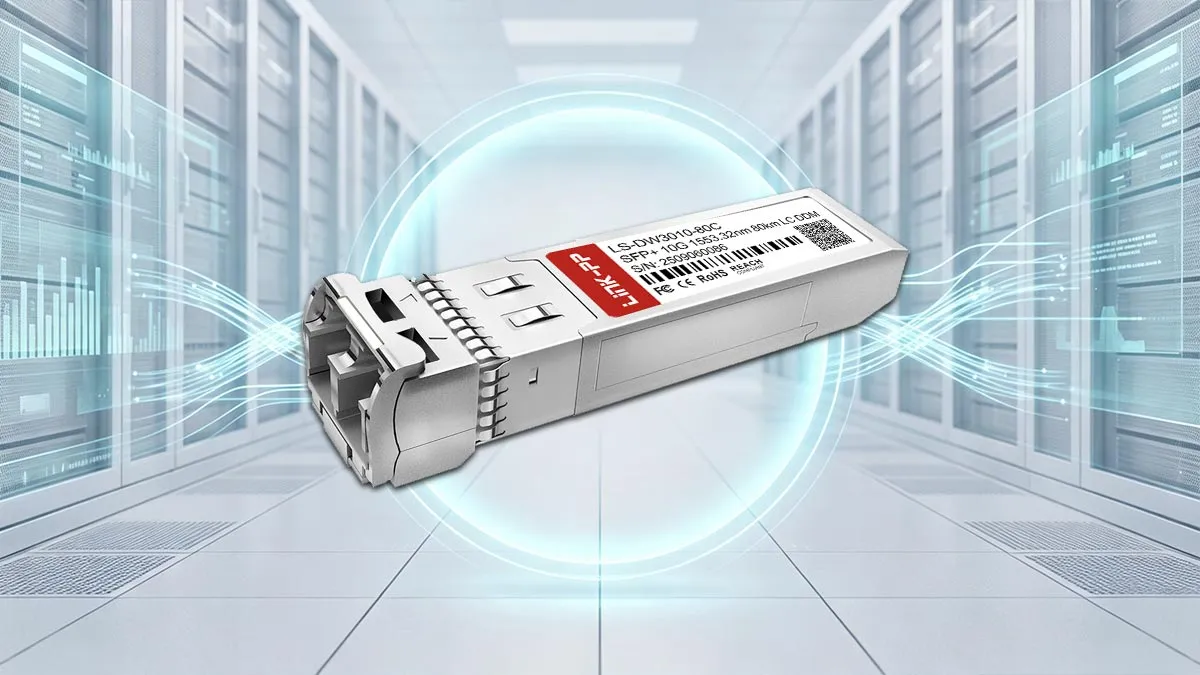

The LINK-PP LS-DW3010-80C is a long-reach 10G SFP+ DWDM optical module engineered for C-band wavelength 1553.32nm (Channel 30, 100GHz ITU grid). Equipped with a cooled EML transmitter and a high-sensitivity APD receiver, it supports link distances up to 80km over single-mode fiber and features real-time digital diagnostic monitoring.
LINK-PP Part Number
LS-DW3010-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1553.32nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW3010-80C 10G SFP+
LINK-PP LS-DW3010-80C combines 10Gbps transmission speed with dense wavelength multiplexing to deliver reliable long-distance data transport over single-mode fiber. This commercial-grade optical transceiver integrates standard hardware compliance, extended 80km reach, and continuous parameter tracking into a compact form factor.

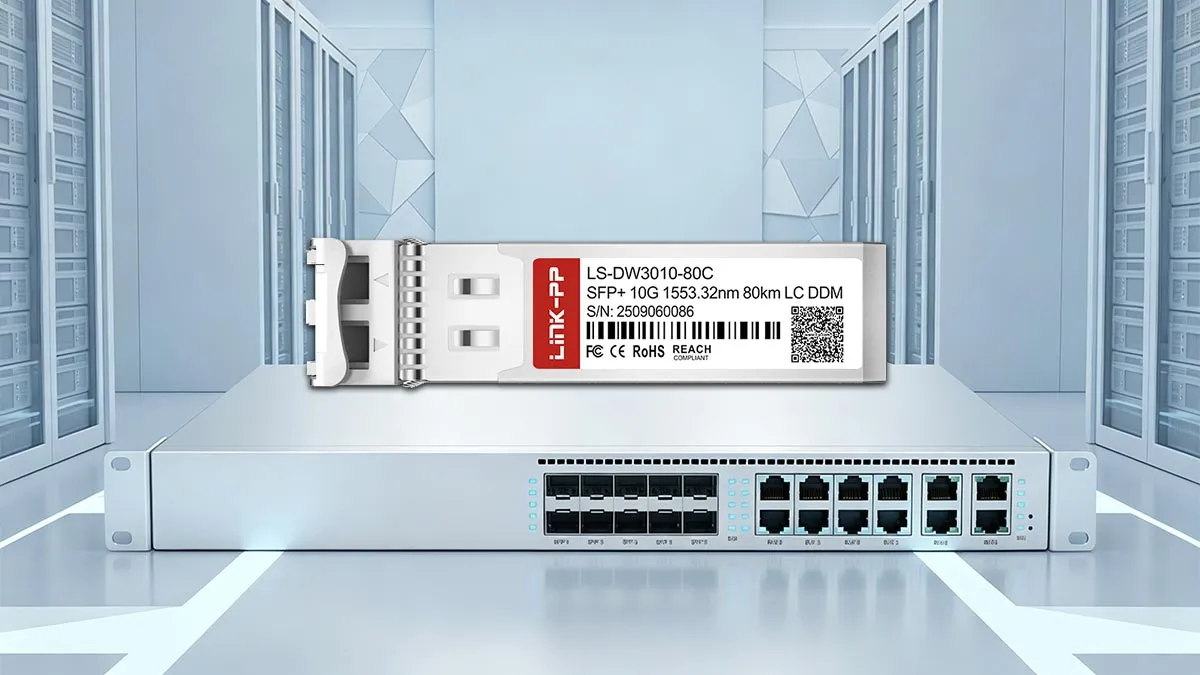

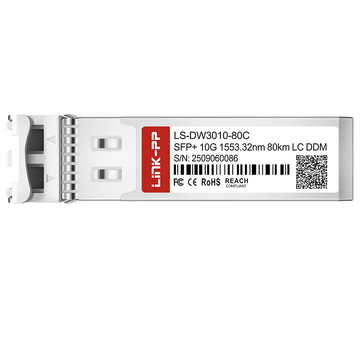

LINK-PP LS-DW3010-80C 10G SFP+ Optical Module
The transceiver features a hot-pluggable SFP+ footprint that allows easy installation and replacement without powering down host equipment. Full compliance with the SFP+ MSA ensures seamless physical and electrical fit across standard networking ports.
LS-DW3010-80C: 10 Gbps Connectivity for Metro DCI Links
Operating at a 10Gbps data rate, this device provides the bandwidth required for modern point-to-point data center interconnects. Network operators can reliably link distributed facilities across metropolitan distances to handle heavy daily traffic loads.

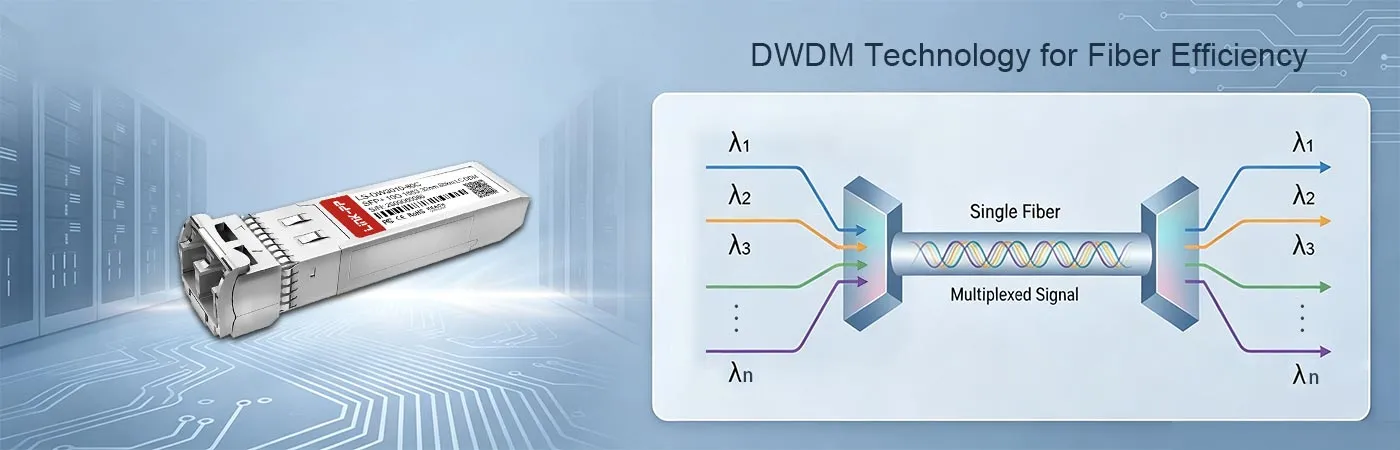

LS-DW3010-80C Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology allows multiple optical signals to share a single existing fiber pair. This capability maximizes overall fiber utilization and expands network capacity without the cost of running new cables.

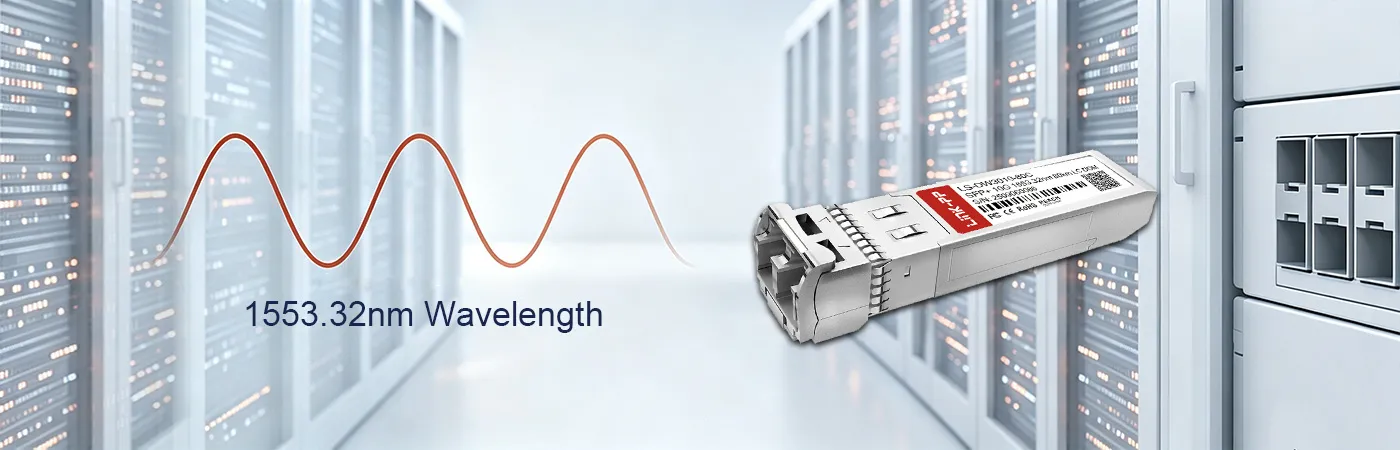

LS-DW3010-80C Module with 1553.32nm Wavelength
Channel 30 operates at a precise 1553.32nm optical wavelength on the standardized 100GHz ITU-T C-Band grid. This fixed optical channel prevents signal overlap and ensures clear spectral separation when multiplexed with other adjacent wavelengths.
LS-DW3010-80C Module Supporting 80km Transmission
An internal EML laser paired with an APD receiver provides the optical power budget required for extended spans up to 80km. Single-mode fiber cabling maintains low signal attenuation across these long distances, reducing the need for intermediate optical amplifiers.

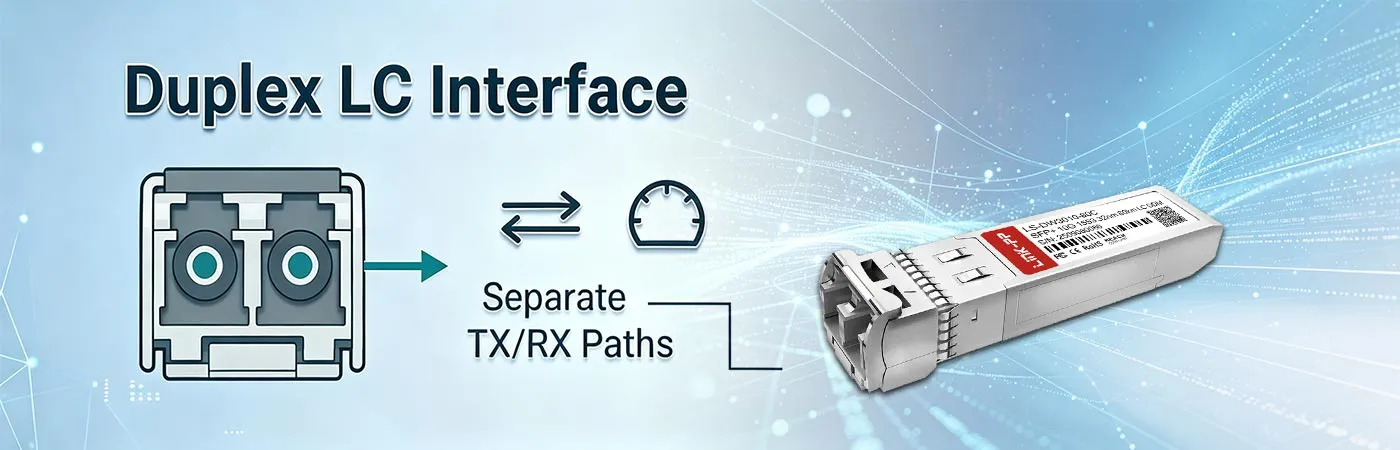

LS-DW3010-80C Module with Duplex LC Interface
Dual LC optical connectors provide a secure, low-loss physical connection for industry-standard single-mode fiber patch cables. The compact latching design maintains mechanical stability and optical alignment in dense switch environments.

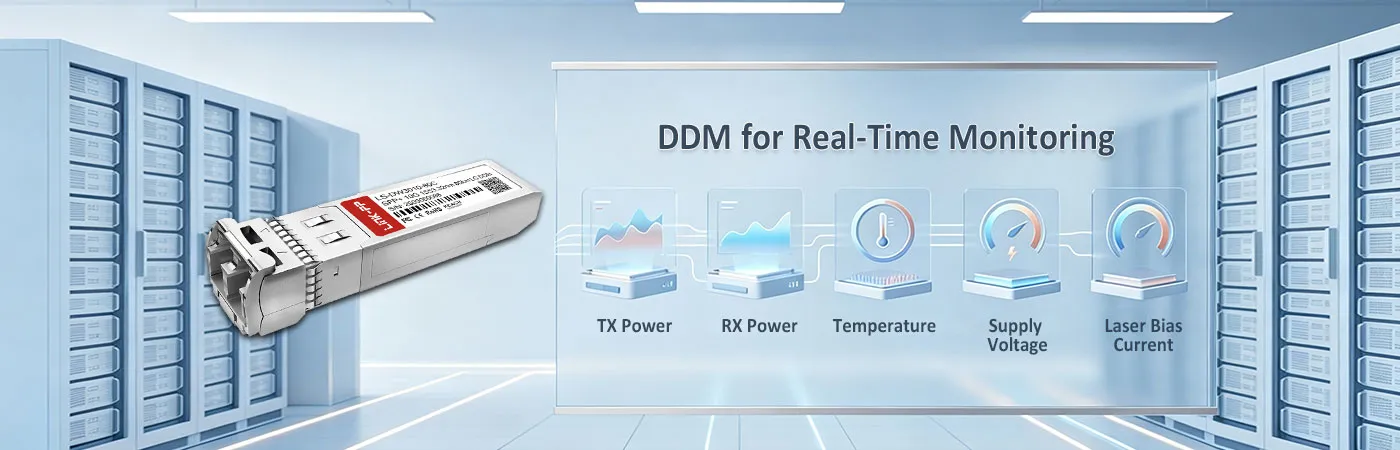

LS-DW3010-80C Module with DDM for Real-Time Monitoring
Integrated digital diagnostic monitoring gives administrators live visibility into critical operating parameters, including laser bias current, optical power, supply voltage, and operating temperature. Full compatibility with the SFF-8472 standard enables fault detection and proactive network maintenance.
LINK-PP LS-DW3010-80C 10G SFP+ Certification
LINK-PP LS-DW3010-80C 10G DWDM module meets key industry standards and holds certifications like ISO 9001, CE, RoHS, and FCC. These official approvals confirm that the module is safe, reliable, and built under strict quality controls.
Every DWDM module undergoes standardized factory testing for optical wavelength accuracy, receiver sensitivity, and temperature stability. This rigorous evaluation confirms full physical-layer performance and signal integrity.
LS-DW3010-80C Quality Certifications
These regulatory certifications verify adherence to defined international standards for electromagnetic compatibility and hazardous substance restrictions. Compliance documentation confirms the hardware meets specified electrical and environmental benchmarks.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW3010-80C Certified for Reliable Host-Device Compatibility
Standard port compliance ensures the module fits easily into standard switches and routers. The host system instantly recognizes the transceiver, delivering stable connections without configuration issues.
Each LS-DW3010-80C DWDM 10G SFP+ optical transceiver undergoes a comprehensive series of evaluations to verify hardware stability and signal transmission accuracy. To review detailed validation procedures, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength accuracy and side-mode suppression ratio levels.
Eye Pattern Test
Analyze optical signal quality and transmitter eye mask margins.
Bit Error Rate Test
Measure data transmission accuracy across full fiber link distances.
Temperature Test
Check transceiver operational stability under specified thermal conditions.
Product Shipping for LINK-PP LS-DW3010-80C 10G SFP+
LINK-PP ensures that every LS-DW3010-80C optical transceiver is securely packed and promptly dispatched to maintain product integrity throughout transit. Our structured logistics workflow coordinates efficient global carrier services to deliver orders safely to customer sites.
Anti-Static Protective Packaging
Shield internal electronic components against electrostatic discharge during transit handling.
Shock-Resistant Transport Protection
Protect delicate optical elements against external impacts and physical vibrations.
Fast Order Processing and Dispatch
Prepare incoming customer shipments rapidly for prompt warehouse dispatch schedules.
Global Logistics and International Delivery
Coordinate reliable international freight carriers for prompt worldwide delivery.

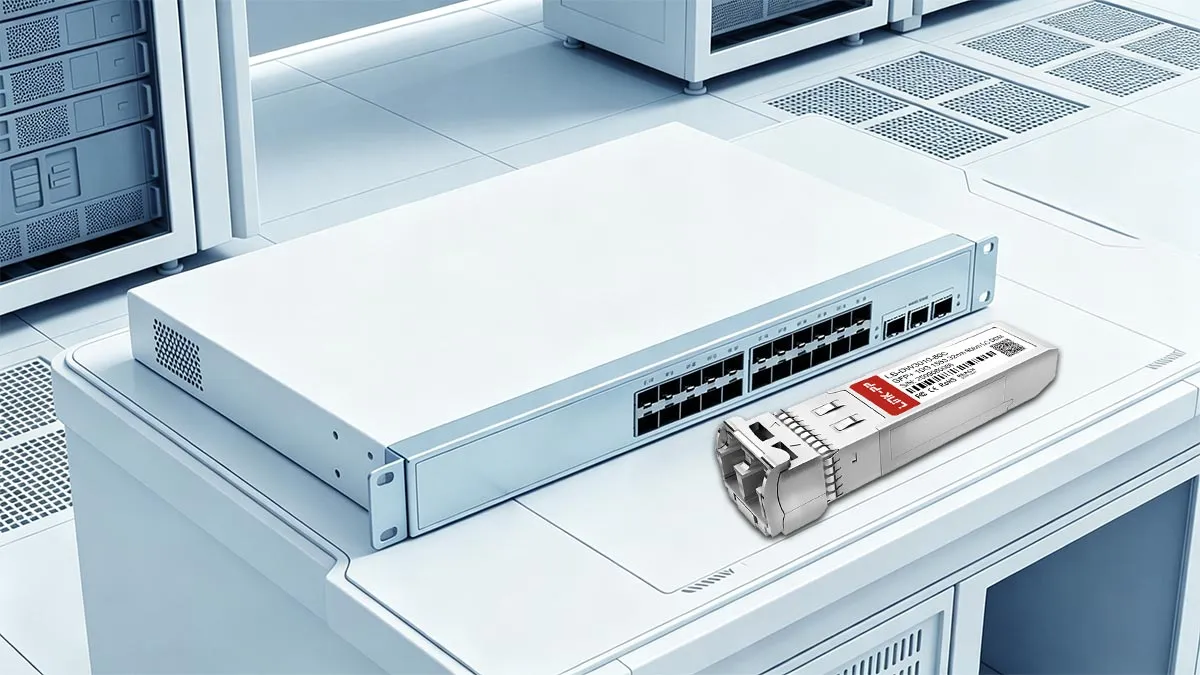

Deploy LINK-PP LS-DW3010-80C by hot-plugging the module into host switches and attaching duplex LC single-mode fiber to the optical interface. The fixed C30 wavelength seamlessly multiplexes onto DWDM networks, providing direct, low-latency 10Gbps interconnects for regional enterprise backbones and metro data center links.
LS-DW3010-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW3010-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
The module uses a cooled EML laser designed to stay locked precisely to the 100GHz grid spacing. In typical deployments, this helps prevent spectral drift and minimizes optical interference with neighboring channels. By
admin on
2026-06-11
A:
Yes, it is built on a hot-pluggable SFP+ footprint compliant with MSA guidelines. You can generally install or replace the unit live without rebooting the host chassis or interrupting other active ports. By
admin on
2026-02-23
A:
Yes, the module operates on a standard single +3.3V power supply within an operating case temperature of 0 to 70°C. In most commercial rack environments, this provides stable thermal and electrical performance. By
admin on
2025-12-06
A:
Yes, LTE systems are listed among its supported deployment applications alongside standard 10Gbps DWDM links. As long as your equipment accepts 10G SFP+ optical interfaces and operates within the 80km optical budget, it should fit the scenario well. By
admin on
2025-01-22
Please write comments with more than three
character.
496321
464737
A***r
Japan
Verified
Purchase
5 .0
2026-04-30
Upgraded our multi-tenant campus fiber network using this 10G SFP+ transceiver. It negotiated 10GBASE-ZW protocols smoothly on our distribution routers. Even with an optical attenuation pad inserted to protect the sensitive APD receiver on shorter test segments, optical eye diagram and signal integrity stayed pristine :D
Please write comments with more than three
character.
496321
464740
S***z
Cambodia
Verified
Purchase
4 .0
2026-02-21
Performance on these specific C30 1553.32nm DWDM modules is fantastic over our long-haul SMF span. The only minor gripe is that the delivery took two days longer than estimated. We would have appreciated better communication from the carrier, but the product itself is solid.
Please write comments with more than three
character.
496321
464753
M***z
Germany
Verified
Purchase
5 .0
2026-02-17
Paired two SFP+ optical modules between our primary server room and offsite disaster recovery facility. The APD receiver catches clear signals even through patch panels.
Please write comments with more than three
character.
496321
464735
J***y
Sweden
Verified
Purchase
5 .0
2026-01-11
Perfect solution for dense channel multiplexing. We consolidated multiple gigabit feeds into 10G DWDM channels across existing single-mode fiber runs. Thermals remain well under 43°C under full line-rate traffic, keeping the rack fans quiet and operational :)
Please write comments with more than three
character.
496321
464734
K***t
Netherlands
Verified
Purchase
4 .0
2025-12-09
Received the LS-DW3010-80C DWDM SFP+ transceivers, and they negotiated 10G instantly on our core switch. However, I ordered a batch, and they were packed in a slightly oversized box, which made them rattle around a bit during transit. A little more void-fill packaging would have made it a perfect 5-star delivery. =)
Please write comments with more than three
character.
496321
464742
B***r
Hungary
Verified
Purchase
5 .0
2025-10-22
Reliable transceivers for long-haul enterprise inter-switch links. We tested them against strict SFF-8431 compliance standards in our staging lab before deploying to customer sites. Power consumption is modest, latch mechanism releases smoothly, and DOM values closely match our external optical power meter.
Please write comments with more than three
character.
496321
464739
G***d
Sweden
Verified
Purchase
5 .0
2025-08-19
We rolled out twelve of these LS-DW3010-80C10G DWDM modules across our regional cell tower base station backhaul. Running full 10Gbps traffic through passive Muxes over 62km SMF with zero framing errors. Real-time DDM diagnostics report -16dBm RX power, perfectly inside the APD sensitivity margin. Outstanding performance for carrier aggregation ;-)
Please write comments with more than three
character.
496321
464741
L***s
Libyan Arab Jamahiriya
Verified
Purchase
5 .0
2025-03-18
Installed across our metropolitan fiber ring for SDH STM64 and 10G Ethernet transport. Bit error rate tests over 48 hours returned zero anomalies. The -23dBm receiver sensitivity leaves plenty of margin for aging fiber splices along the outdoor route.
Please write comments with more than three
character.
496321
464738
S***t
Belgium
Verified
Purchase
5 .0
2025-01-19
Set up an offsite high-speed storage replication connecting our data center to a high-capacity 10G NAS lab over 70km of dark fiber. The EML laser holds narrow 1553.32nm wavelength accuracy cleanly. CLI optical diagnostics show stable +1.5dBm TX output with no thermal drift inside indoor rack chassis.
