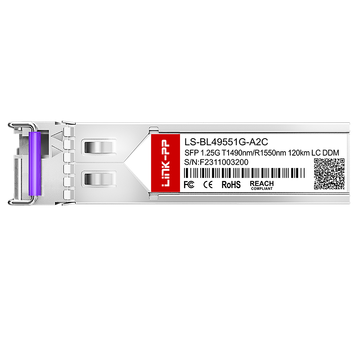

The HW LE2MGSC120DE0 Compatible LINK-PP module is a high-performance 1G BiDi SFP optical transceiver designed for exceptional long-reach networking. This robust module features an advanced 1490nm DFB laser transmitter alongside a sensitive 1550nm APD receiver. Engineered for standard commercial operating temperatures, it guarantees seamless gigabit ethernet integration across extensive telecommunication enterprise networks demanding extreme distance coverage.
HW Part Number
LE2MGSC120DE0
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
1490nm-TX/1550nm-RX
Max Cable Distance
120km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
APD
TX Power
0 to +5dBm
RX Power
-28 to -1dBm
Receiver Sensitivity
<-32dBm
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Key Features of HW LE2MGSC120DE0 Compatible LINK-PP 1.25G SFP
Discover the premium attributes of the HW LE2MGSC120DE0 Compatible LINK-PP 1G BiDi SFP. This remarkable transceiver delivers uncompromising stability and efficiency. By integrating bidirectional wdm technology into a compact hot-pluggable form factor, this solution maximizes existing fiber infrastructure while ensuring ultra-reliable long-haul data communication.
Engineered to MSA standards, the HW LE2MGSC120DE0 Compatible LINK-PP 1G BiDi SFP optical module provides outstanding gigabit ethernet connectivity. This dependable transceiver enables highly efficient single-mode fiber utilization, making it an excellent investment for expanding modern bandwidth-intensive optical networks.
LE2MGSC120DE0: 1G Connectivity for OTN Trunk Lines
Optimizing backhaul performance, the LE2MGSC120DE0 offers superior 1G connectivity for OTN trunk lines. Network architects highly value this optical module for securely transmitting vast amounts of continuous data across challenging metropolitan and extended regional network infrastructures.
LE2MGSC120DE0 Module with 1490nm-TX and 1550nm-RX Wavelength
Utilizing advanced multiplexing, the LE2MGSC120DE0 module with 1490nm-TX and 1550nm-RX wavelength capabilities splits traffic streams flawlessly. This specific bi-directional optical transceiver requires a complimentary wavelength counterpart to establish a robust, interference-free asynchronous communication channel.
Built for incredible reach, the LE2MGSC120DE0 module supporting 120km transmission leverages premium APD receivers and DFB lasers. This extended-range optical SFP completely eliminates the need for intermediate optical amplifiers during ultra-long distance single-mode fiber deployments.
LE2MGSC120DE0 Module with Simplex LC Interface
Designed to drastically reduce cabling costs, the LE2MGSC120DE0 module with simplex LC interface allows simultaneous data transmission and reception. This standardized single-port fiber connection greatly simplifies patch panel management while halving overall optical cabling requirements.
LE2MGSC120DE0 Module with DOM for Real-Time Monitoring
Empowering network administrators, the LE2MGSC120DE0 module with DOM for real-time monitoring intelligently tracks critical operating parameters. This digital diagnostic feature accurately reports transceiver temperature, voltage, and optical power, enabling proactive maintenance and minimizing unexpected network downtime.
Ensuring absolute peace of mind, the HW LE2MGSC120DE0 Compatible LINK-PP 1G SFP certification profile complies with stringent international optical communication standards, delivering safe, secure, and environmentally friendly telecommunication solutions globally.
Every single module undergoes the comprehensive LE2MGSC120DE0 quality testing program. This strict manufacturing protocol guarantees that each optical transceiver perfectly meets required operational parameters before final shipment.
LE2MGSC120DE0 Quality Certifications
Backed by industry-leading documentation, the LE2MGSC120DE0 quality certifications include RoHS, CE, and FDA compliance. These global approvals reflect our commitment to safety and environmentally responsible optical module manufacturing.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LE2MGSC120DE0 Certified for Reliable Host-Device Compatibility
Thoroughly evaluated across major switch brands, the LE2MGSC120DE0 certified for reliable host-device compatibility ensures plug-and-play network integration. This seamless interoperability protects hardware investments across diverse gigabit routing environments.
Rigorous Testing Ensures Reliable SFP Performance
Our dedicated quality control laboratory performs multifaceted evaluations. This rigorous testing ensures reliable SFP performance, maximizing continuous fiber optic connection stability and longevity.
Optical Spectrum Test
We strictly verify 1490nm and 1550nm wavelength precision to prevent signal crosstalk.
Eye Pattern Test
Engineers analyze optical signal integrity to guarantee perfect high-speed gigabit data transmission.
Bit Error Rate Test
Simulated long-distance traffic validates zero-packet-loss capabilities over the full 120km fiber route.
Temperature Test
Thermal cycling ensures absolute hardware stability within the commercial zero to seventy-degree range.
Product Shipping for HW LE2MGSC120DE0 Compatible LINK-PP 1.25G SFP
Experience a completely seamless purchasing process with optimized product shipping for HW LE2MGSC120DE0 Compatible LINK-PP 1G SFP. We strictly safeguard every high-value optical transceiver during transit.
To visualize the actual network deployment, the HW LE2MGSC120DE0 Compatible LINK-PP 1G SFP usage demonstration displays the simple plug-in process. Operators can quickly connect the simplex LC optical fiber cable to instantly establish bidirectional ultra-long gigabit switch-to-router communications.
LE2MGSC120DE0 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LE2MGSC120DE0 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
The standard LS-BL49551G-A2C covers 0 to 70°C for commercial indoor use. However, we do manufacture industrial wide-temperature versions (LS-BL49551G-A2I) that operate reliably from -40 to 85°C. Just specify your industrial environment needs when requesting a quote! By
admin on
2026-04-15
A:
Yes. All our optical transceivers pass a rigorous quality testing program and are fully certified with CE, RoHS, UKCA, and ISO standard compliance. They also meet Class I FDA laser safety requirements, making them ideal for EU and global telecom environments. By
admin on
2025-12-31
A:
Absolutely. The LS-BL49551G-A2C is rigorously tested for OEM compatibility, including major brands like Cisco, Juniper, and HPE. It strictly complies with SFP MSA standards, guaranteeing seamless plug-and-play interoperability across your multi-vendor environment. By
admin on
2025-04-28
A:
Yes, we offer tiered B2B pricing for bulk deployments. For orders over 100 units, the price drops immediately, and we offer even deeper discounts for 500+ pieces. You can also apply our enterprise coupon codes at checkout or contact our sales team for a custom quote. By
admin on
2025-04-05
A:
Yes, for 120km ultra-long distances, you must use Single Mode Fiber (SMF) to prevent signal degradation. This specific BiDi module uses a Simplex LC optical interface, so you'll need Simplex LC-to-LC single-mode patch cables to complete your setup. By
