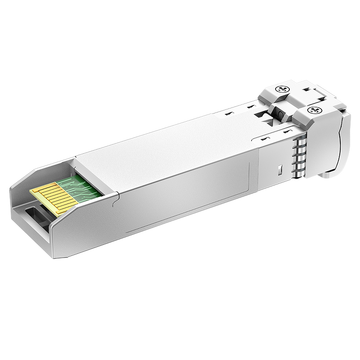

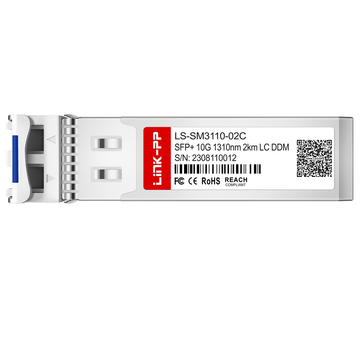

The Brocade 10G-SFPP-LRM2 Compatible LINK-PP module is a high-performance 10Gbps SFP+ optical transceiver designed to transmit data up to 2 kilometers over Single-Mode Fiber (SMF) using a 1310nm wavelength and a Duplex LC connector. Additionally, it features Digital Optical Monitoring (DOM), allowing network administrators to monitor real-time operational parameters like temperature, voltage, and optical power for enhanced reliability.
Brocade Part Number
10G-SFPP-LRM2
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.3Gbps
Wavelength
1310nm
Max Cable Distance
2km
Connector
Duplex LC
Optical Components
FP 1310nm
Media
SMF
DOM Support
Yes
TX Power
-6.5 to -0.5dBm
RX Power
-20 to -1dBm
Receiver Sensitivity
-14.4dBm
Receiver Overload
0.5dBm
Operating case temperature
0 to 70°C
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
Key Features of Brocade 10G-SFPP-LRM2 Compatible LINK-PP 10.3G SFP+
This high-speed 10G SFP+ transceiver is engineered for efficient data transmission up to 2 kilometers over single-mode fiber using a 1310nm laser and a standard Duplex LC interface. It features Digital Optical Monitoring (DOM) to help network administrators track critical metrics like temperature and optical power in real time. Designed for modern data centers and enterprise networks, it provides a highly stable and cost-effective solution for short to medium-range optical links.
The Brocade 10G-SFPP-LRM2 Compatible LINK-PP module is a reliable 10G SFP+ optical module that delivers 10Gbps connectivity up to 2km over single-mode fiber, utilizing a 1310nm wavelength, a Duplex LC connector, and built-in DOM for real-time performance tracking.
10G-SFPP-LRM2: 10 Gbps Connectivity for Modern Data Centers
It delivers ultra-fast, low-latency data transmission over single-mode fiber up to 2 kilometers, ensuring seamless network upgrades and efficient handling of heavy data traffic.
10G-SFPP-LRM2 Module with 1310nm Wavelength
Utilizing a highly stable 1310nm laser, the 10G-SFPP-LRM2 minimizes optical dispersion to maintain exceptional signal integrity over single-mode fiber. This optimized wavelength provides a highly efficient and cost-effective solution for ensuring error-free data transmission across network links up to 2 kilometers.
10G-SFPP-LRM2 Module Supporting 2km Transmission
Engineered for short to medium-haul network demands, the 10G-SFPP-LRM2 reliably supports data transmission distances up to 2 kilometers over single-mode fiber. This specific reach makes it highly practical for linking switches across large enterprise campuses or interconnecting data center facilities with zero signal degradation.
10G-SFPP-LRM2 Module with Duplex LC Interface
Equipped with an Duplex LC interface, the 10G-SFPP-LRM2 ensures secure and reliable physical connections while enabling high port density in network equipment. This convenient plug-and-play connector integrates seamlessly with existing single-mode fiber infrastructure, greatly simplifying installation and ongoing network maintenance.
10G-SFPP-LRM2 Module with DOM for Real-Time Monitoring
The built-in DOM technology provides network administrators with critical real-time visibility into operational parameters such as temperature, voltage, and optical power levels. This advanced diagnostic capability allows for immediate fault detection and predictive maintenance, minimizing potential downtime and ensuring continuous network stability.
The Brocade 10G-SFPP-LRM2 Compatible LINK-PP 10G SFP+ module is fully certified to meet stringent industry standards, including MSA, CE, FCC, and RoHS compliance, ensuring broad compatibility, reliable performance, and environmental safety.
Each optical module undergoes a series of strict laboratory tests to verify performance before shipment.
10G-SFPP-LRM2 Quality Certifications
Every unit is manufactured under strict quality control and validated through multi-stage testing to ensure field readiness.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
10G-SFPP-LRM2 Certified for Reliable Host-Device Compatibility
The Brocade 10G-SFPP-LRM2 Compatible LINK-PP module is a certified 10G SFP+ 1310nm 2km single-mode optical transceiver module designed to ensure reliable host-device compatibility.
Every SFP+ module undergoes a rigorous suite of electrical, optical, and environmental tests to guarantee optimal signal integrity. This strict quality control process ensures consistent, high-speed reliability and long-term stability in demanding network deployments.
Optical Spectrum Test
Verifies the central wavelength and spectral width of the laser to ensure precise optical performance and prevent signal interference.
Eye Pattern Test
Evaluates overall signal quality by measuring jitter, noise, and waveform integrity to ensure compliance with IEEE standards.
Bit Error Rate Test
Confirms flawless, high-speed data transmission by verifying that the transceiver operates efficiently without dropping packets under heavy network loads.
Temperature Test
Verifies that the module operates steadily within the designated operating temperature range.
Product Shipping for Brocade 10G-SFPP-LRM2 Compatible LINK-PP 10.3G SFP+
The Brocade 10G-SFPP-LRM2 Compatible LINK-PP 10G SFP+ modules are securely packaged and shipped globally through reliable logistics networks. Every order is processed efficiently to ensure safe, on-time delivery for rapid network deployments.
Anti-Static Protective Packaging
ESD-safe packaging prevents static electricity damage during handling and transit.
Shock-Resistant Transport Protection
Custom foam inserts absorb physical impact and vibration to prevent mechanical damage.
Fast Order Processing and Dispatch
Streamlined fulfillment processes guarantee quick shipment for time-critical network projects.
Global Logistics and International Delivery
Partnered global couriers provide reliable, trackable, and efficient worldwide shipping.
In a typical usage demonstration, the Brocade 10G-SFPP-LRM2 Compatible LINK-PP SFP+ module is seamlessly inserted into a compatible 10G switch or router port and connected using a Duplex LC single-mode fiber patch cable. Upon insertion, it instantly establishes a stable 10Gbps connection capable of transmitting data up to 2 kilometers without signal loss. Network administrators can then access the management interface of the host device to utilize the built-in DOM functionality, monitoring real-time metrics like temperature and optical power to ensure optimal link health.
10G-SFPP-LRM2 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable 10G-SFPP-LRM2 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
This section provides quick answers to common questions regarding the specifications, compatibility, and deployment of the Brocade 10G-SFPP-LRM2 Compatible LINK-PP 10G SFP+ optical transceiver.
This module is designed to be used with Single-Mode Fiber (SMF) using a Duplex LC connector, and it supports stable data transmission up to a maximum distance of 2 kilometers.
Yes, the transceiver is fully compliant with Multi-Source Agreement (MSA) standards, ensuring reliable, plug-and-play compatibility with major network equipment brands such as Cisco, Juniper, Arista, and others.
Yes, it features Digital Optical Monitoring (DOM) capability, allowing network administrators to track critical real-time metrics like temperature, voltage, laser bias current, and optical power.
The module operates at a 1310nm wavelength and is highly suitable for short to medium-haul 10 Gigabit Ethernet links, including data center interconnects, enterprise campus networks, and service provider applications.
A:
Yes. The LS-SM3110-02I industrial version supports extended operating temperatures and is suitable for outdoor enclosures, industrial automation, and telecom applications. By
admin on
2026-03-10
A:
Yes. The LS-SM3110-02C is tested for compatibility with Cisco, Aruba, Ubiquiti, Juniper, Brocade, Intel, Netgear, Dell, and many other mainstream platforms. Custom EEPROM coding is also available for specific requirements. By
admin on
2026-01-23
A:
Yes. The module is compliant with SFP+ MSA standards and supports both CPRI and eCPRI applications, making it suitable for mobile fronthaul and base station backhaul networks. By
admin on
2025-11-08
A:
Yes. Tiered pricing is available for large deployments, and additional project quotations can be provided for enterprise, ISP, and data center purchases. By
admin on
2025-01-30
A:
This transceiver is designed for single-mode fiber (SMF) and uses a Duplex LC/UPC connector, supporting transmission distances up to 2km at 1310nm. By
admin on
2025-01-05
