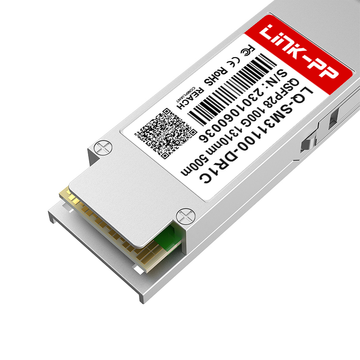

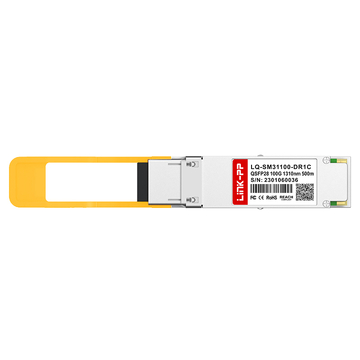

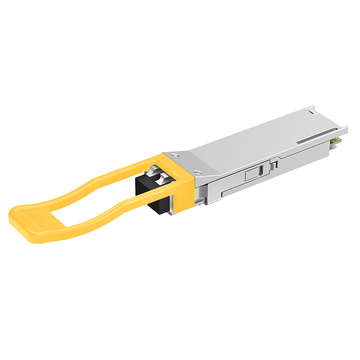

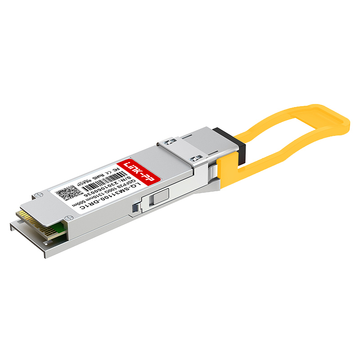

The Brocade QSFP-DR-100G Compatible LINK-PP module is a high-performance 100G QSFP28 transceiver designed for high-speed data center networks. Operating as a 100GBASE-DR optical module, it utilizes an advanced EML laser and PIN detector to ensure superior signal integrity over single-mode fiber. This commercial-grade optical transceiver delivers exceptional efficiency for demanding modern networking environments.
Brocade Part Number
QSFP-DR-100G
Vendor Name
LINK-PP
Form Factor
QSFP28
Max Data Rate
100Gbps
Wavelength
1310nm
Max Cable Distance
500m
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
DDM/DOM
Supported
Operating Temperature Range
0°C to +70°C
Protocols
QSFP28 MSA, SFF-8636, IEEE 802.3cu, CAUI-4
Warranty
5 Years
Key Features of Brocade QSFP-DR-100G Compatible LINK-PP 100G QSFP28
Discover the robust capabilities of this advanced 100G optical module. Engineered with cutting-edge single-wave 100G PAM4 DSP technology, the transceiver significantly reduces power consumption while maximizing bandwidth. It seamlessly bridges current infrastructure with future network upgrades, ensuring unparalleled reliability and ultimate operational efficiency.
This premium QSFP28 DR1 module is expertly crafted to support 100 Gigabit Ethernet applications. Designed for seamless integration into enterprise core networks, the optical transceiver provides a highly stable, low-latency connection for heavy traffic environments.
QSFP-DR-100G: 100G Connectivity for Cloud Service Providers
Optimized for hyperscale infrastructure, this solution delivers reliable 100G interconnect capabilities essential for cloud data center optics. It empowers cloud service providers to handle massive data workloads effortlessly while maintaining exceptional network performance and scalability.
QSFP-DR-100G Module with 1310nm Wavelength
Operating at a precise 1310nm central wavelength, this single wavelength 100G device minimizes chromatic dispersion. The optimized 1310nm optical transceiver ensures pristine signal transmission, maintaining high-fidelity data integrity across complex enterprise and data center architectures.
QSFP-DR-100G Module Supporting 500m Transmission
Engineered for medium-reach interconnects, this 100G SMF transceiver guarantees flawless data delivery over a 500m transmission distance. It serves as the ideal connectivity solution for linking adjacent racks or server rooms within modern enterprise facilities.
QSFP-DR-100G Module with Duplex LC Interface
Featuring a standard Duplex LC connector, this 100G LC optical module allows for straightforward deployment using existing single-mode fiber patch cords. The intuitive interface ensures quick, hassle-free installation and excellent physical connectivity for network administrators.
QSFP-DR-100G Module with DOM for Real-Time Monitoring
Integrated with advanced digital diagnostic monitoring, this DOM supported transceiver enables administrators to track vital parameters instantly. Users can easily monitor temperature, voltage, and optical power to proactively manage network health and prevent unexpected downtime.
This globally compliant 100G transceiver meets stringent safety and environmental standards. Every certified optical module guarantees secure, eco-friendly operation across diverse international networking environments.
Our comprehensive optical module quality control involves multiple sophisticated evaluation stages. These thoroughly tested 100G optics guarantee exceptional durability, consistent performance, and outstanding long-term manufacturing reliability.
QSFP-DR-100G Quality Certifications
Backed by industry-leading CE, FCC, UKCA, UL, and REACH approvals, these CE FCC certified optics offer maximum safety compliance, electromagnetic compatibility, and sustainable environmental responsibility.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
QSFP-DR-100G Certified for Reliable Host-Device Compatibility
Extensively evaluated for seamless integration, this multi-vendor compatible transceiver works perfectly with leading enterprise equipment. It remains highly stable and fully 100G network switch compatible universally.
Comprehensive QSFP28 performance verification and strict 100G optical testing ensure every module achieves unparalleled transmission stability before reaching your data center.
Optical Spectrum Test
Using an advanced optical spectrum analyzer, we verify precise 1310nm wavelength accuracy.
Eye Pattern Test
Thorough optical eye diagram evaluations confirm optimal signal clarity and outstanding transmission integrity.
Bit Error Rate Test
Rigorous BERT testing ensures absolute zero packet loss for flawless high-speed network communication.
Temperature Test
A strict thermal cycling test guarantees stable commercial-grade operation between 0°C and 70°C.
Product Shipping for Brocade QSFP-DR-100G Compatible LINK-PP 100G QSFP28
We prioritize secure transceiver shipping and reliable fiber optic delivery, ensuring your networking equipment arrives in perfect condition and ready for immediate deployment.
Experience effortless installation with this plug and play 100G device. Perfect for scaling infrastructure, it easily supports a 400G to 4x100G breakout fiber connection, enabling flexible, high-density switch configurations across advanced leaf-spine network architectures.
QSFP-DR-100G Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable QSFP-DR-100G modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes, we offer tiered volume discount pricing directly through our store and B2B quote desk. Volume breaks start at 10 pcs, with deeper discounts available at 100, 1,000, and 3,000+ units. For project-level procurement or blanket purchase orders, please contact our enterprise sales team for a formal quote and net payment term support. By
admin on
2026-06-15
A:
The module fully complies with IEEE 802.3cu (100GBASE-DR), SFF-8636, CAUI-4 electrical specifications, and the QSFP28 MSA. In terms of global regulatory compliance, our manufacturing facilities adhere to ISO9001 standards, and all optics carry CE, FCC, and RoHS certifications for global enterprise deployments. By
admin on
2026-05-25
A:
The LQ-SM31100-DR1C delivers full performance parity with cisco modules. Built with an industry-standard 1310nm EML transmitter, PIN receiver, and advanced PAM4 DSP chipset, it strictly complies with IEEE 802.3cu and QSFP28 MSA standards. It delivers identical bit-error-rate (BER) margins, low latency, and full DOM telemetry while reducing your hardware procurement budget significantly. By
admin on
2026-04-30
A:
Yes, absolutely. We provide tailored EEPROM coding for multi-vendor interoperability, including Cisco, Arista, Juniper, NVIDIA/Mellanox, Dell, and HPE. Please specify your target switch hardware and OS versions when placing your order, and each transceiver will be custom-coded and tested before dispatch to guarantee 100% plug-and-play recognition without vendor lock-in errors. By
admin on
2025-10-13
A:
This transceiver is engineered for standard OS2 Single-Mode Fiber (SMF, 9/125μm) terminated with Duplex LC optical connectors. It supports point-to-point optical transmission distances up to 500 meters at a 1310nm optical wavelength, making it the ideal cost-effective choice for intra-data-center interconnects, rack-to-rack bridging, and enterprise building backbone links. By
admin on
2025-10-06
