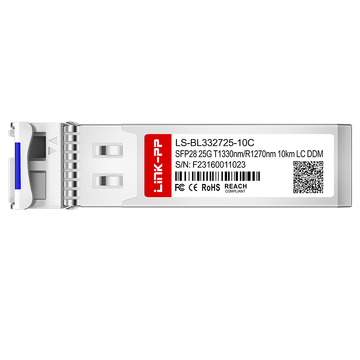

SFP-25G32-BX10 is a single-channel, hot-pluggable 25G SFP28 BiDi optical transceiver that leverages bidirectional 1330nm-TX/1270nm-RX wavelengths to drive 25Gbps data rates over a 10km single-mode fiber link, engineered for commercial network reliability across a 0°C to +70°C temperature envelope.
Broadcom Part Number
SFP-25G32-BX10
Vendor Name
LINK-PP
Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
1330nm-TX/1270nm-RX
Max Cable Distance
10km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-3 to +5dBm
RX Power
-14 to +3dBm
Receiver Sensitivity
＜-13dBm
Receiver Overload
2dBm
Operating Temperature Range
0 to 70°C
Protocols
MSA Compliant, CPRI, eCPRI
Key Features of Broadcom SFP-25G32-BX10 Compatible LINK-PP 25G SFP28
Broadcom SFP-25G32-BX10 Compatible LINK-PP serves as a reliable 25G BiDi SFP28 optical transceiver designed to maximize fiber efficiency across long-range distances. This module integrates dual-wavelength signaling with digital diagnostic capabilities to maintain stable data transmission over a single fiber strand.
This transceiver is designed with a standard form factor, optical/electrical connections, and a digital diagnostic interface according to SFP28 specifications. It is fully compliant with the IEEE 802.3cc standard, ensuring seamless interoperability in multi-vendor environments. The hot-pluggable design allows for easy installation and maintenance without disrupting ongoing network services.
SFP-25G32-BX10: 25 Gbps Connectivity for High-Speed Enterprise Uplinks
Delivering a line rate of 25Gbps, this module provides a significant bandwidth boost for modern corporate networks. It allows enterprises to easily scale up from traditional 10G links to meet growing data demands. This increased throughput helps eliminate bottlenecks in critical aggregation layers and switch-to-switch connections.
SFP-25G32-BX10 Module with 1330nm-TX/1270nm-RX Wavelength
The transceiver uses a 1330nm transmitter and a 1270nm receiver to handle traffic in both directions simultaneously. By isolating the transmit and receive paths on different optical channels, it prevents signal interference and crosstalk. This precise bidirectional wavelength management ensures clean, reliable data streams over long operational hours.
Engineered for single-mode fiber (SMF), this module reliably drives signals up to a distance of 10km. Its optical power budget is optimized to overcome signal attenuation across campus backgrounds and metropolitan spans. This makes it an ideal choice for connecting geographically separated facilities or regional distribution hubs.
SFP-25G32-BX10 Module with Simplex LC/UPC Interface
Featuring a single LC/UPC connector, the module allows bidirectional communication over just one strand of fiber. This single-strand design cuts cable infrastructure requirements and patch panel footprint exactly in half. It offers an extremely cost-effective path for network expansion where physical fiber resources are limited.
SFP-25G32-BX10 Module with DOM for Real-Time Monitoring
Integrated Digital Optical Monitoring (DOM) provides real-time access to critical operating parameters. Network administrators can easily track metrics such as transceiver temperature, optical laser power, and supply voltage. This proactive monitoring capability helps detect potential link issues before they lead to unexpected network downtime.
Broadcom SFP-25G32-BX10 Compatible LINK-PP SFP28 BiDi module complies with rigorous international standards, holding official certifications such as ISO 9001, CE, RoHS, and FCC to ensure safety and environmental responsibility.
Each optical transceiver module undergoes strict hardware testing and signal integrity checks to guarantee stable network performance before shipment.
SFP-25G32-BX10 Quality Certifications
These global regulatory approvals validate that the module meets industry-standard requirements for electromagnetic interference and manufacturing quality.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-25G32-BX10 Certified for Reliable Host-Device Compatibility
The module is comprehensively tested across major networking platforms to ensure seamless, plug-and-play operation with enterprise switches and routers.
Every SFP28 optical module undergoes extensive validation to guarantee stable data transmission and full hardware compatibility. To discover our complete verification processes, visit the LINK-PP Test Support Center.
Optical Spectrum Test
Audit wavelength precision to eliminate channel crosstalk.
Eye Pattern Test
Evaluate waveform shapes to ensure crisp signal transitions.
Bit Error Rate Test
Confirm flawless packets by tracking data transmission accuracy.
Temperature Test
Sustain operational stability across diverse thermal limits.
Product Shipping for Broadcom SFP-25G32-BX10 Compatible LINK-PP 25G SFP28
Secure transit protocols guarantee your transceivers arrive intact and fully ready for immediate network deployment. Optimized fulfillment pipelines expedite worldwide delivery seamlessly.
Anti-Static Protective Packaging
Defend sensitive electronic circuitry against electrostatic discharge.
Shock-Resistant Transport Protection
Absorb transit vibrations to preserve delicate internal alignment.
Fast Order Processing and Dispatch
Speed up warehouse workflows for quicker outbound distribution.
Global Logistics and International Delivery
Utilize reliable worldwide freight networks for prompt arrival.
Slide the SFP-25G32-BX10 SFP28 BiDi transceiver seamlessly into your host device, connect the simplex LC patch cable, and track live metrics via DOM. This streamlined setup is perfectly suited for cloud computing facilities, enterprise campus backbones, and regional telecom transport networks.
SFP-25G32-BX10 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-25G32-BX10 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, the built-in DOM (Digital Optical Monitoring) provides real-time telemetry. You can easily track laser bias current, Tx/Rx power, and operating temperature through your switch CLI or monitoring dashboard. By
admin on
2026-04-07
A:
No, you cannot. This module transmits at 1330nm and receives at 1270nm, so it must be paired with its complementary counterpart (1270nm-TX / 1330nm-RX) on the other end. By
admin on
2026-01-08
A:
Yes, absolutely. The LS-BL332725-10C uses BiDi technology (1330nm-TX/1270nm-RX) to deliver full 25G bidirectional throughput over a single simplex SMF strand, effectively doubling your fiber capacity. By
admin on
2025-09-04
A:
No, because the TX (1330nm) and RX (1270nm) use completely different light wavelengths, there is zero signal interference or crosstalk. By
admin on
2025-07-22
Please write comments with more than three
character.
494026
356994
C***n
Argentina
Verified
Purchase
5 .0
2026-02-22
Perfect compatibility with our routers. We just plugged them into the SFP28 slots, and the 25G links initialized immediately. Having DOM support at this price point makes infrastructure scaling much less painful. Highly recommended for regional ISPs!
Please write comments with more than three
character.
494026
356993
E***h
Morocco
Verified
Purchase
5 .0
2025-08-07
For our regional backhaul network, we needed a robust 25G SFP28 optical transceiver module capable of connecting our core site to a remote node. Running over a single strand of single-mode fiber with simplex LC connectors, the link budget provided an excellent margin of safety. Our testing tools registered an attenuation curve well within acceptable limits, keeping our link state completely stable even during heavy rain storms. The best part is the built-in DDM functionality, which lets our remote team verify laser health from the central console. It's rare to find high-speed optics that deliver this level of signal integrity.
Please write comments with more than three
character.
494026
356999
M***r
United Arab Emirates
Verified
Purchase
5 .0
2025-07-11
Great build quality on the locking latch mechanisms. I've had issues with cheap third-party SFP28 optics breaking during hot-swaps, but these LINK-PP ones feel sturdy and industrial.
Please write comments with more than three
character.
494026
356998
S***d
Maldives
Verified
Purchase
4 .0
2025-06-09
Performance of these 10km single-mode SFP28 transceivers is top-notch, and DOM metrics are fully accurate. However, the international delivery took two days longer than estimated, which slightly delayed our scheduled maintenance window.
Please write comments with more than three
character.
494026
357001
R***w
New Zealand
Verified
Purchase
5 .0
2025-05-11
Using these Simplex LC BiDi optical modules to link two separate server rooms across the campus. The real-time DOM telemetry helps our monitoring stack stay ahead of any signal degradation. Will definitely choose LINK-PP for our next batch of data center optics transceivers.
Please write comments with more than three
character.
494026
356995
F***y
Canada
Verified
Purchase
5 .0
2025-04-20
Excellent commercial-grade 25G SFP28 module. We deployed them inside air-conditioned MDF rooms, and they operate cool at around 38°C. This TX 1330nm / RX 1270nm pairing works seamlessly over standard single-mode fiber patch cords. Outstanding value for procurement.
Please write comments with more than three
character.
494026
356996
B***k
Macao
Verified
Purchase
5 .0
2025-03-12
We ran an intensive evaluation program for these 25G BiDi transceivers before approving them for our distributed office deployment. The primary requirement was full compliance with standard network protocols to guarantee broad compatibility across our different hardware brands. Testing on our data analyzer confirmed that the optical wavelength stability at 1330nm remained rock solid with no drift under heavy utilization. The receiver at 1270nm showed superb isolation, and our software controllers could read the asset data natively. This level of standardized reliability makes it easy to deploy them everywhere.
