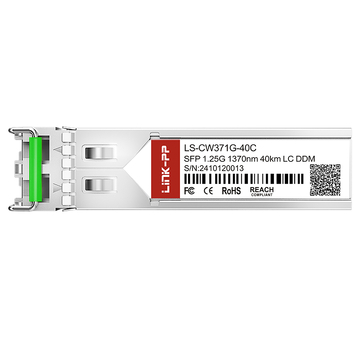

EX-SFP-GE40KCW1370 operates as a 1370nm CWDM SFP module, delivering 1.25Gbps data throughput via its internal DFB laser and PIN photodiode. This module achieves reach up to 40km on single-mode fiber and features built-in real-time digital diagnostic monitoring for optical power, bias current, supply voltage, and temperature. Its specified operating temperature spans 0°C to +70°C.
Juniper Part Number
EX-SFP-GE40KCW1370
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
1370nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-5 to 0dBm
RX Power
-26 to -1dBm
Receiver Sensitivity
-24dBm
Receiver Overload
-1dBm
EMC (Electromagnetic Compatibility)
Supported
DDM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
SFP MSA、SFF-8472
Key Features of Juniper EX-SFP-GE40KCW1370 Compatible LINK-PP 1.25G SFP
Juniper EX-SFP-GE40KCW1370 Compatible LINK-PP module is a commercial-grade 1G SFP optical transceiver with a 1370nm CWDM wavelength. It supports 40km transmission over single-mode fiber through a duplex LC interface and includes DDM functions with SFF-8472 for real-time link supervision. This module is well suited for metro access and FTTx backhaul networks, offering reliable 1Gbps connectivity while maximizing fiber usage via CWDM channelization.
This module follows a hot-pluggable SFP footprint and fully complies with SFP MSA standards. It enables easy installation and replacement without powering down the host system.
EX-SFP-GE40KCW1370: 1 Gbps Connectivity for FTTx Backhaul
It operates at a 1Gbps data rate, suitable for FTTx backhaul and point-to-point Ethernet links. The speed ensures stable throughput for access network aggregation and last-mile connectivity.
EX-SFP-GE40KCW1370 Module with CWDM Technology for Fiber Efficiency
CWDM technology allows this module to use a specific 1370nm channel within a coarse wavelength division multiplexing grid. It helps maximize fiber utilization by enabling multiple wavelengths on a single fiber pair.
EX-SFP-GE40KCW1370 Module with 1370nm Wavelength
The transmitter is centered at 1370nm, which falls in the CWDM spectrum band. This wavelength choice supports efficient transmission over standard G.652 single-mode fiber with low dispersion.
The module supports link distances up to 40km over single-mode fiber. This reach is ideal for metropolitan area networks and remote backhaul applications.
EX-SFP-GE40KCW1370 Module with Duplex LC Interface
A duplex LC connector provides separate transmit and receive ports on the module. This interface ensures simple and secure fiber plug-in for standard network equipment.
EX-SFP-GE40KCW1370 Module with DDM for Real-Time Monitoring
Digital Diagnostic Monitoring (DDM) is implemented, compatible with SFF-8472. It offers real-time access to parameters such as operating temperature, supply voltage, laser bias current, and optical power for link health management.
The EX-SFP-GE40KCW1370 CWDM optical module strictly follows international standards to guarantee high quality and safety. It is fully certified with ISO 9001, CE, RoHS, and FCC compliance for reliable performance.
Every transceiver undergoes rigorous testing, including optical spectrum checks and bit error rate verification. This comprehensive program ensures high stability and error-free data transmission before shipment.
EX-SFP-GE40KCW1370 Quality Certifications
Official industry qualifications confirm that this product meets high safety and environmental standards. These certifications ensure that each module delivers long-lasting and consistent performance in network operations.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
EX-SFP-GE40KCW1370 Certified for Reliable Host-Device Compatibility
This CWDM module is thoroughly tested across various brand switches and routers to guarantee seamless plug-and-play operation. It ensures stable communication and strong data link connectivity with your host equipment.
Rigorous Testing Ensures Reliable SFP Performance
Every EX-SFP-GE40KCW1370 1G SFP module undergoes thorough testing to verify signal integrity and long-term stability. To see our complete testing methodology, discover more details at the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength precision and optical spectral width performance.
Eye Pattern Test
Analyze signal transmitter clarity to ensure optimal waveform quality.
Bit Error Rate Test
Measure data transmission accuracy for completely error-free network links.
Temperature Test
Validate operational stability across demanding thermal environmental range conditions.
Product Shipping for Juniper EX-SFP-GE40KCW1370 Compatible LINK-PP 1.25G SFP
Each EX-SFP-GE40KCW1370 1G SFP transceiver is carefully packaged and processed to ensure maximum safety during transit. Reliable global logistics partners deliver your orders quickly and securely to destination sites.
Anti-Static Protective Packaging
Protect optical modules against electrostatic discharge damage during handling.
Shock-Resistant Transport Protection
Shield physical components from impact damage throughout the journey.
Fast Order Processing and Dispatch
Accelerate order fulfillment to ensure prompt warehouse shipment dispatch.
Global Logistics and International Delivery
Provide dependable international shipping to destinations worldwide without delay.
Mount the EX-SFP-GE40KCW1370 1G CWDM module into standard switch SFP slots to connect optical multiplexers seamlessly. Operating at a precise 1370nm CWDM wavelength, it simplifies deployment for telecom operators and ensures high-performance connectivity within FTTx backhaul networks and distributed access node links.
EX-SFP-GE40KCW1370 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal EX-SFP-GE40KCW1370 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
