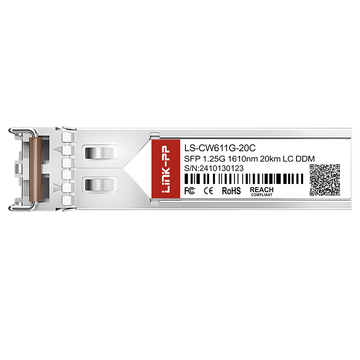

CWDM-SFP-1610-20 functions as a 1.25Gbps 1610nm CWDM SFP module equipped with a precision DFB laser and a PIN receiver. Optimized for single-mode fiber links up to 20km, it operates reliably within standard commercial temperatures from 0 to +70°C. Additionally, integrated real-time digital optical monitoring (DOM) provides continuous diagnostic capabilities for optical power, temperature, bias current, and voltage tracking.
Dell Part Number
CWDM-SFP-1610-20
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
1610nm
Max Cable Distance
20km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-5 to 0dBm
RX Power
-26 to -1dBm
Receiver Sensitivity
-24dBm
Receiver Overload
-1dBm
EMC (Electromagnetic Compatibility)
Supported
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
SFP MSA、SFF-8472
Key Features of Dell CWDM-SFP-1610-20 Compatible LINK-PP 1.25G SFP
Dell CWDM-SFP-1610-20 Compatible LINK-PP module is a 1G CWDM SFP module designed for reliable single-mode fiber links. Operating at a 1610nm wavelength, it supports 1Gbps data rates over distances up to 20km through a standard duplex LC interface. The transceiver combines efficient wavelength multiplexing with real-time digital optical monitoring to streamline enterprise connectivity.
This transceiver features a hot-pluggable SFP footprint that enables seamless installation without interrupting active network operations. Full compliance with the SFP Multi-Source Agreement (MSA) guarantees broad interoperability across standard networking equipment.
CWDM-SFP-1610-20: 1 Gbps Connectivity for Distributed Network Nodes
Delivering line-rate Gigabit Ethernet throughput, this module provides stable 1Gbps data transmission for bandwidth-demanding systems. It is ideal for interconnecting edge switches, enterprise routers, and remote access terminals across distributed node architectures. The consistent speed helps prevent data bottlenecks in core-to-edge network links.
CWDM-SFP-1610-20 Module with CWDM Technology for Fiber Efficiency
Coarse Wavelength Division Multiplexing (CWDM) technology allows multiple optical signals to share a single optical fiber pair by using distinct channel wavelengths. By maximizing existing cabling infrastructure, it significantly lowers total fiber deployment costs. This approach enables operators to expand network capacity without running expensive new fiber lines.
CWDM-SFP-1610-20 Module with 1610nm Wavelength
Operating on a standardized 1610nm optical channel, the module fits precisely into 18-channel CWDM grid configurations. Its DFB laser ensures stable channel spacing and minimal spectral drift across commercial temperature ranges. This specific wavelength facilitates clean signal integration when multiplexed with other optical channels.
Engineered for medium-reach optical connections, the transceiver drives single-mode fiber links up to 20km without requiring signal amplification. A high-sensitivity PIN photodetector maintains low bit error rates across the entire optical span. This reach makes it well-suited for connecting campus buildings and regional distribution points.
CWDM-SFP-1610-20 Module with Duplex LC Interface
The industry-standard duplex LC connector ensures a secure, low-loss physical connection with standard single-mode patch cables. Its compact latching mechanism prevents accidental disconnections while maximizing port density on switch panels.
CWDM-SFP-1610-20 Module with DOM for Real-Time Monitoring
Digital Optical Monitoring (DOM) provides continuous telemetry for critical operating metrics in full compliance with the SFF-8472 diagnostic standard. System administrators can track laser bias current, Rx/Tx optical power, supply voltage, and operating temperature in real time. These diagnostic metrics help engineers detect link degradation early and prevent unpredicted network downtime.
The CWDM-SFP-1610-20 1G SFP CWDM module meets international manufacturing and environmental standards, holding key certifications such as ISO 9001, CE, RoHS, and FCC. These regulatory approvals confirm that every module satisfies strict criteria for quality control, electrical safety, and environmental protection.
Each CWDM SFP transceiver undergoes thorough optical and electrical testing prior to shipment to verify signal integrity across temperature variations. Comprehensive line-rate performance checks ensure low bit-error rates and consistent optical power output during continuous operation.
CWDM-SFP-1610-20 Quality Certifications
Compliance with global industry frameworks validates that the module meets standardized safety and electromagnetic emission thresholds. Adhering to these strict manufacturing policies guarantees stable, enterprise-ready optical components for long-term network deployments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
CWDM-SFP-1610-20 Certified for Reliable Host-Device Compatibility
Rigorous validation across major switch platforms ensures seamless recognition and error-free operation upon insertion. Standardized EEPROM parameters allow host devices to immediately identify module capabilities and read diagnostic metrics without configuration issues.
Rigorous Testing Ensures Reliable SFP Performance
Every CWDM-SFP-1610-20 CWDM SFP module undergoes a series of comprehensive hardware evaluations to guarantee optimal signal quality and continuous network uptime. Engineers validate each production batch using standardized procedures, and you can discover our complete validation methodology at the LINK-PP Test Support Center.
Optical Spectrum Test
Verify precise central wavelength output and laser spectral width.
Eye Pattern Test
Analyze optical signal clarity and waveform timing margin stability.
Bit Error Rate Test
Ensure error-free data transmission under maximum network traffic loads.
Temperature Test
Confirm stable module operation across varying thermal environment conditions.
Product Shipping for Dell CWDM-SFP-1610-20 Compatible LINK-PP 1.25G SFP
Our streamlined shipping process guarantees that every CWDM-SFP-1610-20 CWDM 1G SFP module arrives safely and on schedule. We partner with reliable carriers to deliver secure packaging and efficient global transit for all orders.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage during storage and transit.
Shock-Resistant Transport Protection
Shield sensitive optical components against impacts during delivery.
Fast Order Processing and Dispatch
Ensure quick dispatch times to minimize network deployment delays.
Global Logistics and International Delivery
Provide dependable international shipping directly to your facility.
Insert the CWDM-SFP-1610-20 hot-pluggable transceiver module into an SFP port and connect duplex LC fiber cables to a CWDM multiplexer channel. Once locked, this 1610nm SFP transceiver automatically establishes line-rate optical links across distributed network nodes, enabling seamless data transmission across enterprise edge switches.
CWDM-SFP-1610-20 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal CWDM-SFP-1610-20 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, the LS-CW611G-20C module is designed to support bit rates up to 1.25Gbps, making it well-suited for both Gigabit Ethernet connections and 1.063Gbps Fibre Channel storage links. By
admin on
2026-03-12
A:
This commercial-grade CWDM module is rated for an operating case temperature of 0°C to +70°C, meaning it is best suited for temperature-managed indoor rack environments. By
admin on
2026-02-20
A:
Yes, it is built with a standard duplex LC optical receptacle designed specifically to pair with 9/125µm single-mode fiber for clean optical coupling over long spans. By
admin on
2026-01-15
A:
Yes, we offer tiered volume discounts for bulk orders. Please contact our sales team with your target quantity and required delivery schedule, and we will provide a custom quote promptly. By
admin on
2025-10-13
A:
The CWDM DFB laser is tuned to the standard 1610nm channel grid, which generally provides clean spectral isolation and low crosstalk when paired with standard passive CWDM multiplexers. By
admin on
2025-07-04
