If my CWDM Mux/Demux filter introduces 2 to 3 dB of insertion loss, will this module still cover a 15km to 18km span?

Yes, in most cases it handles that comfortably. This module provides an optical power budget of roughly 19 dB (launching between -5 and 0 dBm, with a -24 dBm receiver sensitivity). Typical single-mode fiber loses about 0.35 to 0.4 dB per kilometer around 1450nm, so an 18km fiber run consumes around 7 dB. Adding 3 to 6 dB of total multiplexer and patch loss still leaves you with around 6 dB of healthy operating margin.

Is the 1450nm channel affected by fiber attenuation, and can I use it with any standard single-mode patch cord?

You can use any standard duplex LC single-mode fiber (OS2). However, 1450nm sits near the "water peak" region of optical glass. If your network runs on modern low-water-peak single-mode fiber (ITU-T G.652.D), attenuation is low and 20km is easily reachable. If you are patching into a very old legacy fiber plant, attenuation at 1450nm can be slightly higher than at 1550nm, so it is always smart to check your total link loss with the built-in DOM before commissioning.

Why does this module use a DFB laser instead of a FP laser, and how does that help with my 20km CWDM link?

The DFB laser produces a much narrower, single-frequency light beam compared to a standard FP laser. In a CWDM network where multiple channels are packed closely together, the narrow spectral width of a DFB laser prevents the 1450nm light from drifting or bleeding into adjacent channels. It also reduces chromatic dispersion over the 20km single-mode run, ensuring your 1.25Gbps signal stays crisp and error-free over long distances.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 1/2/4G Transceiver Modules; 1G CWDM/DWDM SFP; 202307

Click to open expanded view

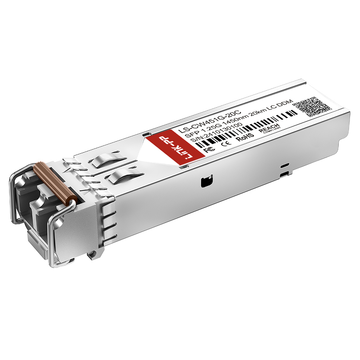

LINK-PP LS-CW451G-20C 1G SFP CWDM 1450nm 20km Duplex LC DOM SMF Optical Transceiver Module

Name: LINK-PP LS-CW451G-20C 1G SFP CWDM 1450nm 20km Duplex LC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 202307
Price: 59.77 AUD
Availability: InStock
Rating: 4.9 (28 reviews)

Product: LINK-PP LS-CW451G-20C 1G SFP CWDM 1450nm 20km Duplex LC DOM SMF Optical Transceiver Module
SKU: 202307
P/N: LS-CW451G-20C
Price: A$ 69.5
Stock: 70 in Stock
Sold: 1.2K
Product URL: https://www.l-p.com/products/491785.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

28 Reviews

3 Questions

1.2K Sold

A$ 50

Free shipping. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

A$ 69.5

100

A$ 66.025

1000

A$ 63.94

3000

A$ 61.855

6000

A$ 59.77

Manufacture: LINK-PP P/N: LS-CW451G-20C SKU: 202307

Compatible:: Cisco; LINK-PP; Arista; Brocade; Dell; Extreme; H3C; HPE; HW; Juniper

Wavelength:: 1270nm; 1290nm; 1310nm; 1330nm; 1350nm; 1370nm; 1390nm; 1410nm; 1430nm; 1450nm; 1470nm; 1490nm; 1510nm; 1530nm; 1550nm; 1570nm; 1590nm; 1610nm

Shipping:

To Be Negotiated

A$ 73.351

Can't deliver

to Australia via DHL

Estimated delivery time : 0 - 27 days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ lpMoneyText(detail_data.displayed_price.unit_prefix, detail_data.displayed_price.total, detail_data.displayed_price.unit_suffix) }}

{{ lpMoneyText(detail_data.displayed_price.unit_prefix, detail_data.displayed_price.original_total_price, detail_data.displayed_price.unit_suffix) }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications
Features
Certification
Testing
Shipping
Usage
Support
Assurance
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LS-CW451G-20C 1G SFP Specifications

LS-CW451G-20C SFP module combines a 1450nm CWDM DFB laser with a sensitive PIN photo detector to support transmission rates up to 1.25Gbps. Capable of spanning up to 20km on single-mode fiber, it allows network administrators to execute real-time digital optical monitoring for proactive system health checks. The module guarantees steady operation across thermal conditions spanning 0°C to +70°C.

LINK-PP Part Number	LS-CW451G-20C	Vendor Name	LINK-PP
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	1450nm	Max Cable Distance	20km
Connector	Duplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-5 to 0dBm	RX Power	-26 to -1dBm
Receiver Sensitivity	-24dBm	Receiver Overload	-1dBm
EMC (Electromagnetic Compatibility)	Supported	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	SFP MSA、SFF-8472

Key Features of LINK-PP LS-CW451G-20C 1G SFP

Designed to maximize existing fiber capacity, the LINK-PP LS-CW451G-20C leverages 1450nm CWDM technology to deliver reliable 1G data transmission over single-mode fiber. Supporting distances up to 20km via duplex LC connectors, it integrates digital optical monitoring (DOM) to provide efficient, cost-effective bandwidth expansion for enterprise and carrier access networks.

LINK-PP LS-CW451G-20C 1G SFP Optical Module

The transceiver features a hot-pluggable SFP footprint that allows seamless installation without shutting down active network devices. Its strict compliance with SFP MSA standards guarantees universal interoperability with a wide range of industry-standard networking hardware.

LS-CW451G-20C: 1 Gbps Connectivity for Edge Optical Access

Delivering a dedicated 1 Gbps data rate, this module provides reliable gigabit throughput for bandwidth-intensive edge routing. It enables operators to maintain stable, low-latency communication across enterprise campus backbones and local service access networks.

LS-CW451G-20C Module with CWDM Technology for Fiber Efficiency

Coarse Wavelength Division Multiplexing (CWDM) allows multiple distinct optical signals to share a single fiber pair without mutual interference. This technology drastically reduces dark fiber leasing costs by maximizing existing cable capacity.

LS-CW451G-20C Module with 1450nm Wavelength

The standardized 1450nm center wavelength enables precise channel routing within ITU-T G.694.2 CWDM grid topologies. Operating on this specific band prevents signal crosstalk when multiplexing several data channels onto one physical strand.

LS-CW451G-20C Module Supporting 20km Transmission

Integrated DFB and PIN components drive reliable long-reach optical signals up to 20km over single-mode fiber. Such extended reach easily bridges regional aggregation switches and physically distant central offices.

LS-CW451G-20C Module with Duplex LC Interface

An industry-standard duplex LC optical connector ensures precise mechanical locking and low insertion loss during cable insertion. This compact interface format enables high port density on switches and patch panels.

LS-CW451G-20C Module with DOM for Real-Time Monitoring

Real-time digital optical monitoring (DOM) tracks critical operating parameters including Rx/Tx optical power, transceiver temperature, laser bias current, and supply voltage. Fully compatible with SFF-8472 digital diagnostics specifications, it gives system administrators early visibility into potential link failures.

LINK-PP LS-CW451G-20C 1G SFP Certification

The LINK-PP LS-CW451G-20C CWDM SFP module meets rigorous ISO 9001, CE, RoHS, and FCC certifications, ensuring excellent build quality, reliable electromagnetic compatibility, and full adherence to global environmental standards.

LS-CW451G-20C Quality Testing Program

Every CWDM module undergoes strict optical, electrical, and thermal inspection before leaving the factory floor. This comprehensive screening process filters out defects to maintain stable operation in real-world network deployments.

LS-CW451G-20C Quality Certifications

Holding these recognized industry approvals confirms that the transceiver satisfies strict safety and performance benchmarks. Network engineers can deploy this optical module with total confidence in its long-term operational stability.

LS-CW451G-20C Certified for Reliable Host-Device Compatibility

Extensive switch and router testing validates that the module connects seamlessly across diverse vendor hardware. This proven hardware interoperability eliminates link errors and prevents unexpected downtime during switch integration.

Rigorous Testing Ensures Reliable SFP Performance

LINK-PP LS-CW451G-20C 1G CWDM SFP undergoes multi-stage quality validation to guarantee flawless optical link stability and network uptime. To see how each module meets industry standards, visit the LINK-PP Test Support Center.

Rigorous Testing Ensures Reliable Transceiver Performance

Optical Spectrum Test

Verify central wavelength alignment to prevent channel optical interference.

Eye Pattern Test

Measure transmitter signal clarity to ensure low pulse distortion.

Bit Error Rate Test

Evaluate packet transmission accuracy over long single-mode fiber links.

Temperature Test

Validate thermal stability across full commercial operating temperature ranges.

Product Shipping for LINK-PP LS-CW451G-20C 1G SFP

LINK-PP ensures that every LS-CW451G-20C CWDM SFP module is securely packed and handled to prevent damage during transit. Our streamlined fulfillment system guarantees safe and timely delivery to customers worldwide.

Anti-Static Protective Packaging

Shield sensitive optical components from harmful electrostatic discharge damage.

Shock-Resistant Transport Protection

Cushion inner optical assemblies against severe vibrations and drops.

Fast Order Processing and Dispatch

Expedite warehouse fulfillment to ensure rapid dispatch for orders.

Global Logistics and International Delivery

Partner with reliable international carriers for safe global shipments.

LINK-PP LS-CW451G-20C 1G SFP Usage Demonstration

Deploying the LS-CW451G-20C involves hot-swapping the module into an active switch and connecting single-mode fiber via duplex LC connector. Tailored for edge optical access, it multiplexes 1450nm signals into existing CWDM infrastructure while real-time DOM monitoring ensures reliable link operation.

LS-CW451G-20C Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal LS-CW451G-20C module for your network design and application needs.

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

LINK-PP LS-CW451G-20C 1G SFP After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15-day no-reason return and refund

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free repair services for manufacturing defects throughout the warranty period

Warranty exclusions and conditions apply

Model Comparison Table

	Current Model LS-CW451G-20C Wavelength: 1450nm	LS-CW451G-40C Wavelength: 1450nm	LS-CW451G-80C Wavelength: 1450nm	LS-CW611G-40C Wavelength: 1610nm	LS-CW591G-40C Wavelength: 1590nm	LS-CW571G-40C Wavelength: 1570nm

Compatible	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Data Rate (Max)	1.25Gbps	1.25Gbps	1.25Gbps	1.25Gbps	1.25Gbps	1.25Gbps
Wavelength	1450nm	1450nm	1450nm	1610nm	1590nm	1570nm
Connector	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC	Duplex LC
Cable Distance (Max)	20km	40km	80km	40km	40km	40km
Cable Type	SMF	SMF	SMF	SMF	SMF	SMF
TX Power	-5 to 0dBm	-5 to 0dBm	-1 to +4dBm	-5 to 0dBm	-5 to 0dBm	-5 to 0dBm
Receiver Sensitivity	-24dBm	-24dBm	-26dBm	-24dBm	-24dBm	-24dBm
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Temperature	Commercial	Commercial	Commercial	0 to 70°C	Commercial	0 to 70°C
Form Factor	SFP	SFP	SFP	SFP	SFP	SFP
Transmitter Type	DFB	DFB	DFB	DFB	DFB	DFB
Receiver Type	PIN	PIN	PIN	PIN	PIN	PIN
Receiver Overload	-1dBm	-1dBm	-1dBm	-1dBm	-1dBm	-1dBm
EMC (Electromagnetic Compatibility)	Supported	Supported	Supported	Supported	Supported	Supported
DOM Support	Yes	Yes		Yes	Yes	Yes
Protocols	SFP MSA、SFF-8472	SFP MSA、SFF-8472	SFP MSA、SFF-8472	SFP MSA、SFF-8472	SFP MSA、SFF-8472	SFP MSA、SFF-8472

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LS-CWxx1G-20C.pdf Download

Questions & Answers
Ask a Question

No data

Q: If my CWDM Mux/Demux filter introduces 2 to 3 dB of insertion loss, will this module still cover a 15km to 18km span? By P***n on 2026-03-25

A: Yes, in most cases it handles that comfortably. This module provides an optical power budget of roughly 19 dB (launching between -5 and 0 dBm, with a -24 dBm receiver sensitivity). Typical single-mode fiber loses about 0.35 to 0.4 dB per kilometer around 1450nm, so an 18km fiber run consumes around 7 dB. Adding 3 to 6 dB of total multiplexer and patch loss still leaves you with around 6 dB of healthy operating margin. By admin on 2026-03-26
Q: Is the 1450nm channel affected by fiber attenuation, and can I use it with any standard single-mode patch cord? By P***r on 2025-12-05

A: You can use any standard duplex LC single-mode fiber (OS2). However, 1450nm sits near the "water peak" region of optical glass. If your network runs on modern low-water-peak single-mode fiber (ITU-T G.652.D), attenuation is low and 20km is easily reachable. If you are patching into a very old legacy fiber plant, attenuation at 1450nm can be slightly higher than at 1550nm, so it is always smart to check your total link loss with the built-in DOM before commissioning. By admin on 2025-12-06
Q: Why does this module use a DFB laser instead of a FP laser, and how does that help with my 20km CWDM link? By J***r on 2025-04-03

A: The DFB laser produces a much narrower, single-frequency light beam compared to a standard FP laser. In a CWDM network where multiple channels are packed closely together, the narrow spectral width of a DFB laser prevents the 1450nm light from drifting or bleeding into adjacent channels. It also reduces chromatic dispersion over the 20km single-mode run, ensuring your 1.25Gbps signal stays crisp and error-free over long distances. By admin on 2025-04-04
